DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
19
generally used to connect this switch to optical fiber connections and can be used to connect devices to the Switch
over great distances. The maximum distance that the RJ45 wiring connection can reach is 100 meters. Fiber optic
connections can span several kilometers.
The figure below illustrates how to properly insert SFP+ transceivers into the Switch’s SFP+ ports.

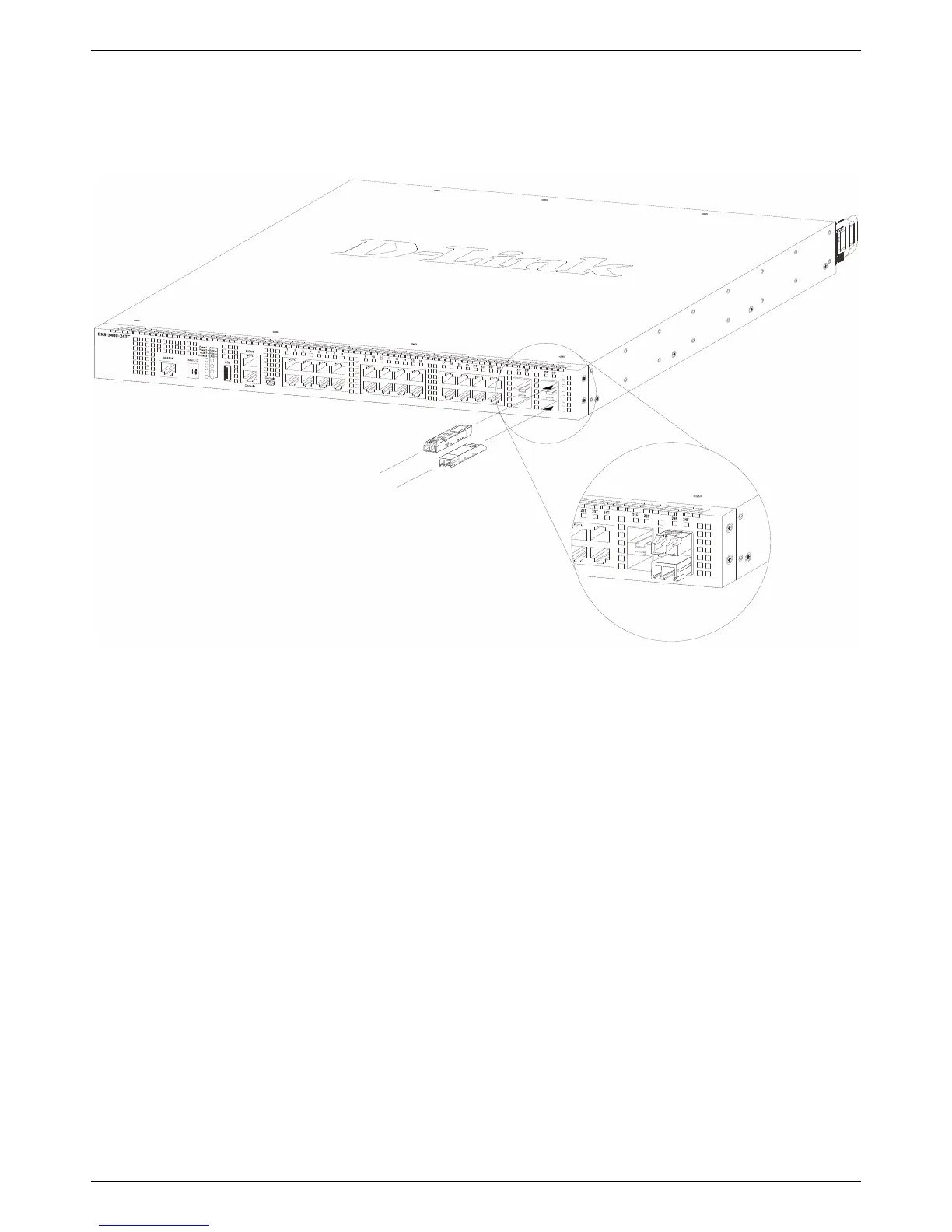

Figure 2-4 Inserting transceivers into the transceiver ports
The SFP+ ports also support other transceiver form factors like SFP and SFP+ transceivers. A complete list of
SFP/SFP+ transceivers, compatible with this switch, can be found the SFP+ Ports section in Appendix A - Technical
Specifications at the end of this document.
Installing Power Modules into the Power Module
Slots
The power module slots, located on the rear panel of this switch, support two types of power supply modules.
AC Power Supply Module:
DXS-PWR300AC: A 300 Watt AC power supply tray with front-to-back airflow.
DC Power Supply Module:
DXS-PWR300DC: A 300 Watt DC power supply tray with front-to-back airflow.
Installing an AC Power Module
Insert the AC power supply module into the power module slot until the clip clicks in place. Connect the one end of the
AC power cord supplied to the AC power connector and the other end into a properly grounded electrical outlet. The
Switch will automatically adjust the AC power setting to adapt to any voltage supply in the range from 100~240 VAC at
50~60 Hz.
