DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
26

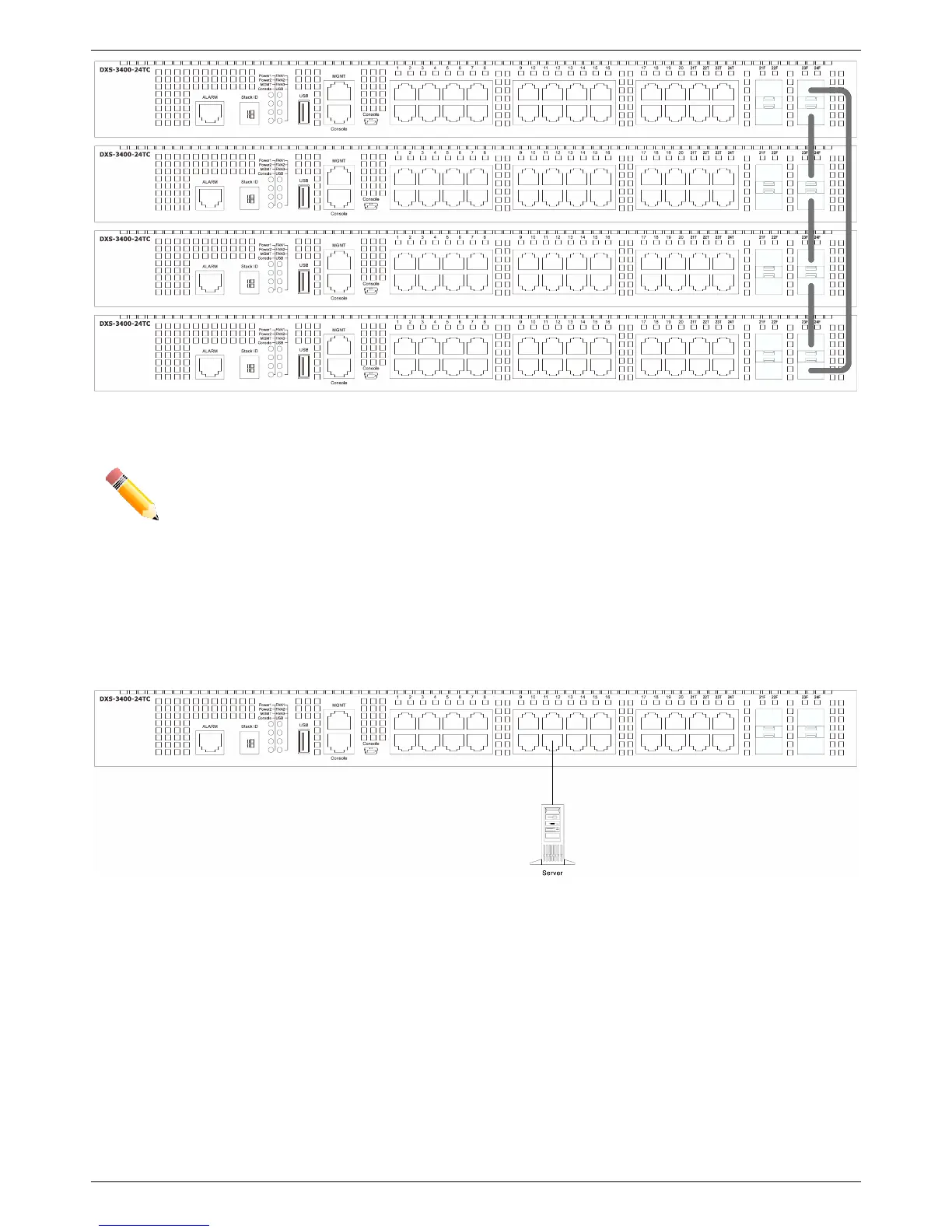

Figure 3-6 Duplex Ring stacking topology (SFP+)
NOTE: Stacking Input/Output 1 (SIO1) is a logical stacking port pair. SIO2 is also a logical stacking port
pair. A logical stacking port pair must always be connected to the same Switch in the stack. Splitting
logical stacking port pairs between different Switches in the stack might not guarantee a stable stacking
connection.
Switch to a Server
The Switch is ideal for connecting to a network backbone, server, or server farm. The RJ45 ports operate at a speed
of 100/1000/10000 Mbps. The SFP+ ports operate at a speed of 1/10 Gbps.
Figure 3-7 Connecting the Switch to a server
