D-Link Ethernet Broadband Router DIR-100 User Manual

DIR-100 Ethernet Broadband Router
Firewall & DMZ
The Firewall & DMZ menu is used to define enforce specific predefined policies intended to protect against
certain common types of attacks.
A DoS "denial-of-service" attack is characterized by an explicit attempt by attackers to prevent legitimate
users of a service from using that service. Examples include: attempts to "flood" a network, thereby
preventing legitimate network traffic, attempts to disrupt connections between two machines, thereby
preventing access to a service, attempts to prevent a particular individual from accessing a service, or,
attempts to disrupt service to a specific system or person. To enable this function, tick the Enable DoS
Prevention checkbox.
Firewall Rules
To configure rules for the firewall, modify the following fields and click the Save Settings button at the top
of the window to set the rule in the Routers memory. Newly configured firewall rules will be displayed in the
Firewall Rules List at the bottom of the window.

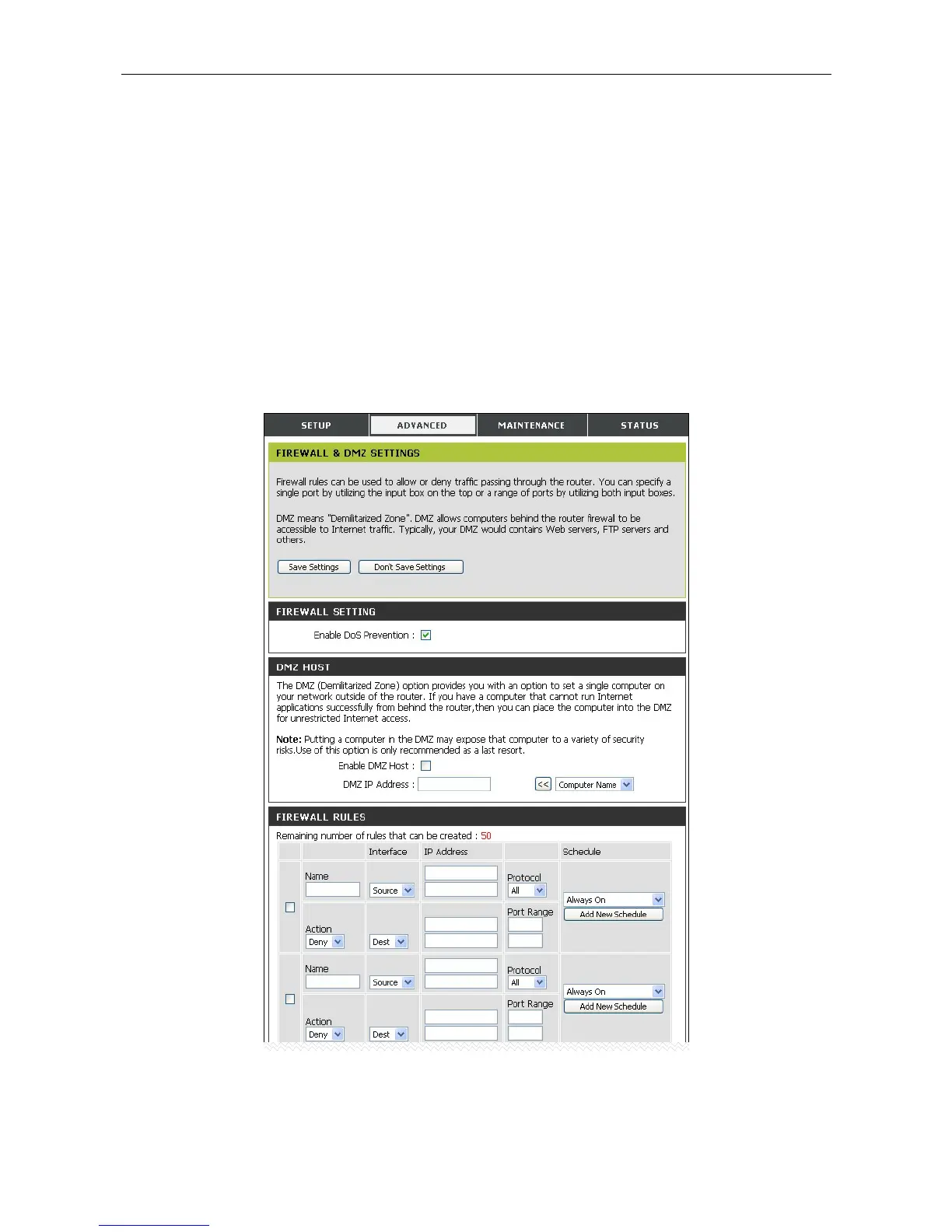

Firewall & DMZ menu
42

D-Link Ethernet Broadband Router DIR-100 Specifications

General

Category	Wireless Router
Model	DIR-100
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
WAN Ports Qty	1
LAN Ports Qty	4
Standards	IEEE 802.3, IEEE 802.3u
Ports	4 x 10/100Base-TX LAN, 1 x 10/100Base-TX WAN
Security	NAT
Power	5 V DC
Operating Temperature	0 - 40 °C
Storage Temperature	-20 °C to 70 °C
Humidity	10 - 90% non-condensing
