D-Link Ethernet Broadband Router DIR-100 User Manual

DIR-100 Ethernet Broadband Router
Schedules
This window is used to create implementation schedules for Firewall Settings rules. This is the same menu
accessed using the Make New Schedule button in the Rules menu of the Firewall Settings page.

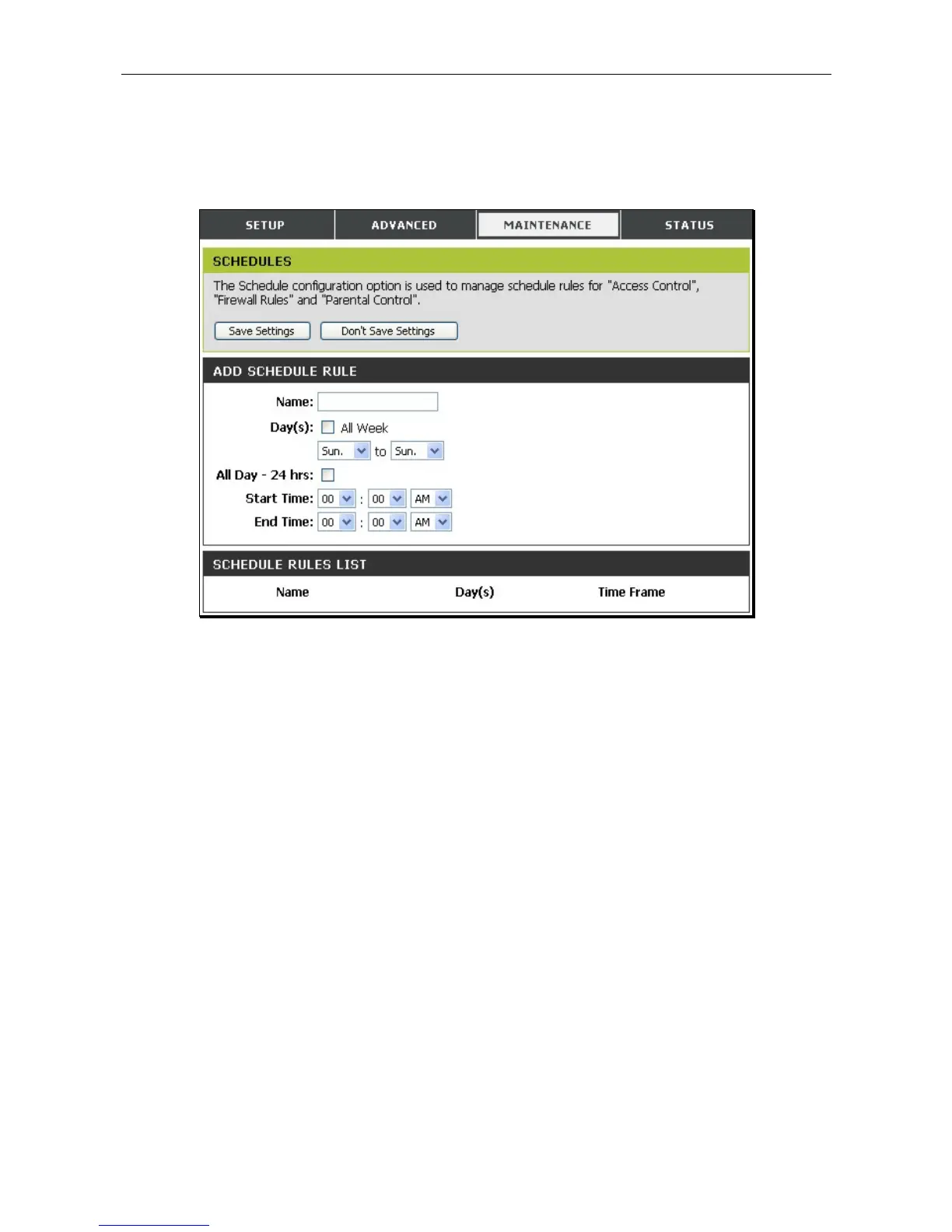

Schedule rule setup menu
Complete the Add Schedule Rule settings on the window above and then click the Save Settings button at
the top of the window.
51

D-Link Ethernet Broadband Router DIR-100 Specifications

General

Category	Wireless Router
Model	DIR-100
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
WAN Ports Qty	1
LAN Ports Qty	4
Standards	IEEE 802.3, IEEE 802.3u
Ports	4 x 10/100Base-TX LAN, 1 x 10/100Base-TX WAN
Security	NAT
Power	5 V DC
Operating Temperature	0 - 40 °C
Storage Temperature	-20 °C to 70 °C
Humidity	10 - 90% non-condensing
