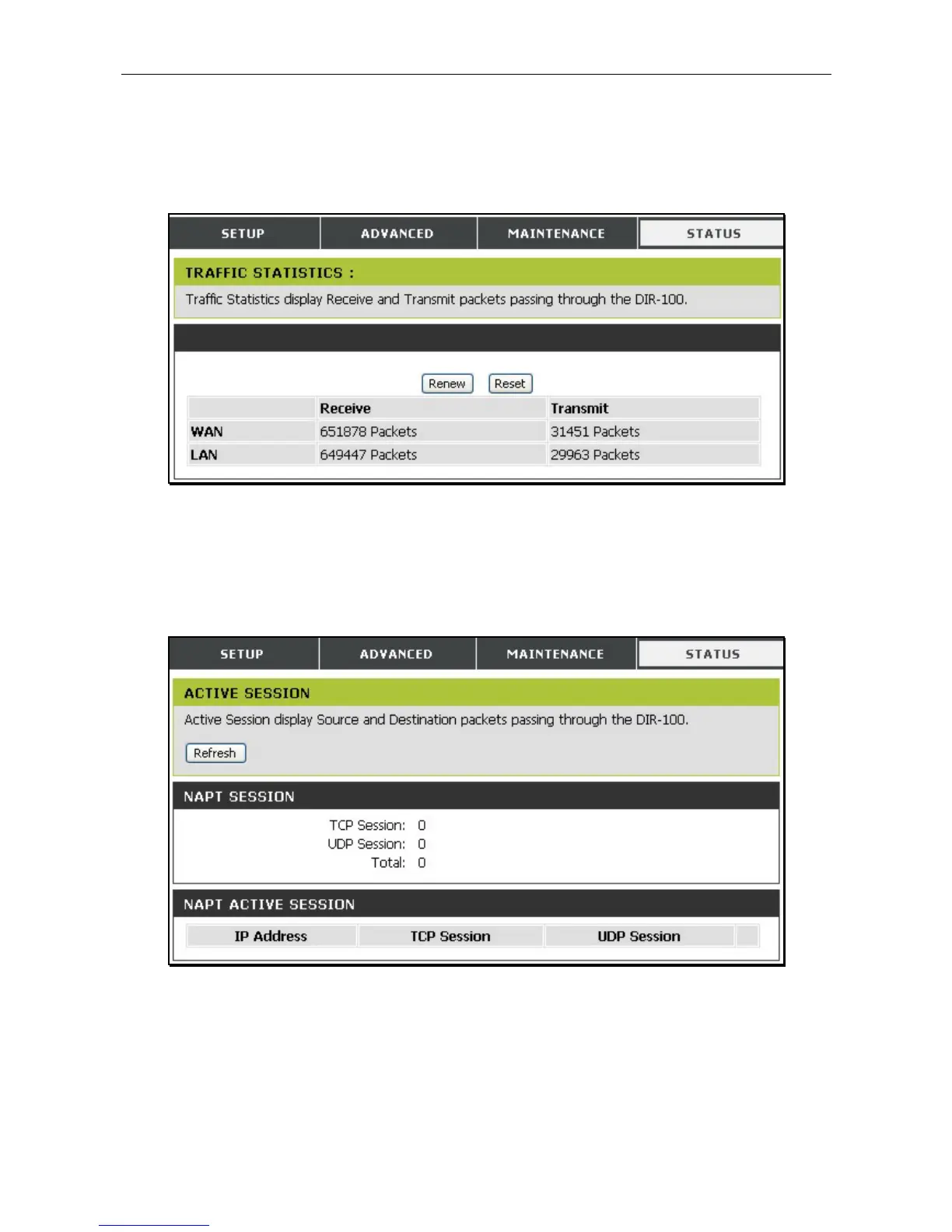

DIR-100 Ethernet Broadband Router
Statistics
The Ststistics displays shows transmiited and received packets occuring on the Router. To refresh the
window, click Refresh. To restart the packet count, click Reset.
Traffic Statistics
Active Session
Source and Destination packets passing through the Router are displayed listed by TCP/UDP type in the
Active Session display. To refresh the window, click the Refresh button.
Active Session display
55
