D-Link Ethernet Broadband Router DIR-100 User Manual

DIR-100 Ethernet Broadband Router

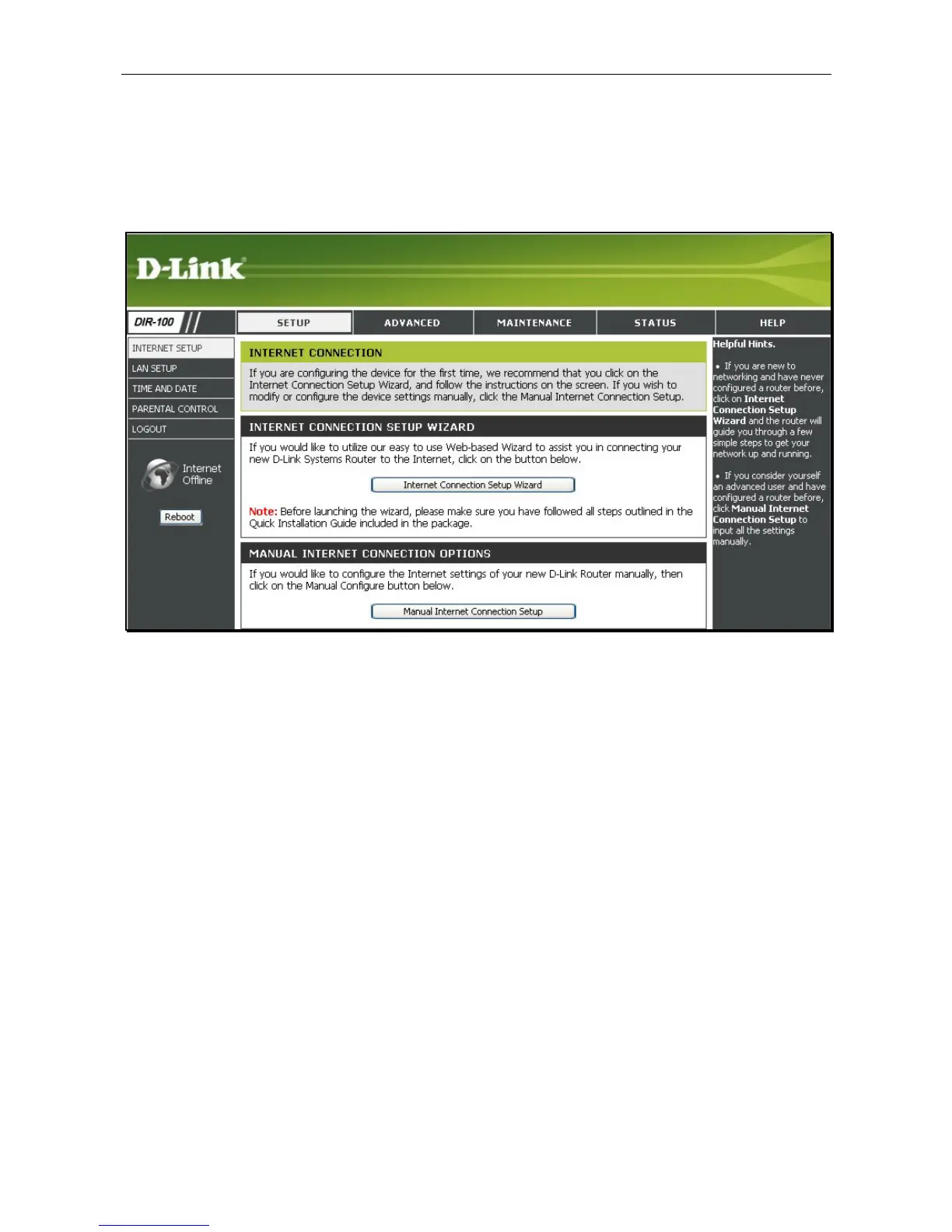

Manual Internet Connection
The Internet connection can be configured manually without using the Setup Wizard. To confirue Internet
connection settings manually click on the Manual Internet Connection Setup button in the Internet
Connection menu.
In the new menu select the Internet connection type used for your service from the My Internet Connection
is: pull-down menu. Follow the instructions in the next sections according to the type of Internet connection
you want to configure.
19

D-Link Ethernet Broadband Router DIR-100 Specifications

General

Category	Wireless Router
Model	DIR-100
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
WAN Ports Qty	1
LAN Ports Qty	4
Standards	IEEE 802.3, IEEE 802.3u
Ports	4 x 10/100Base-TX LAN, 1 x 10/100Base-TX WAN
Security	NAT
Power	5 V DC
Operating Temperature	0 - 40 °C
Storage Temperature	-20 °C to 70 °C
Humidity	10 - 90% non-condensing
