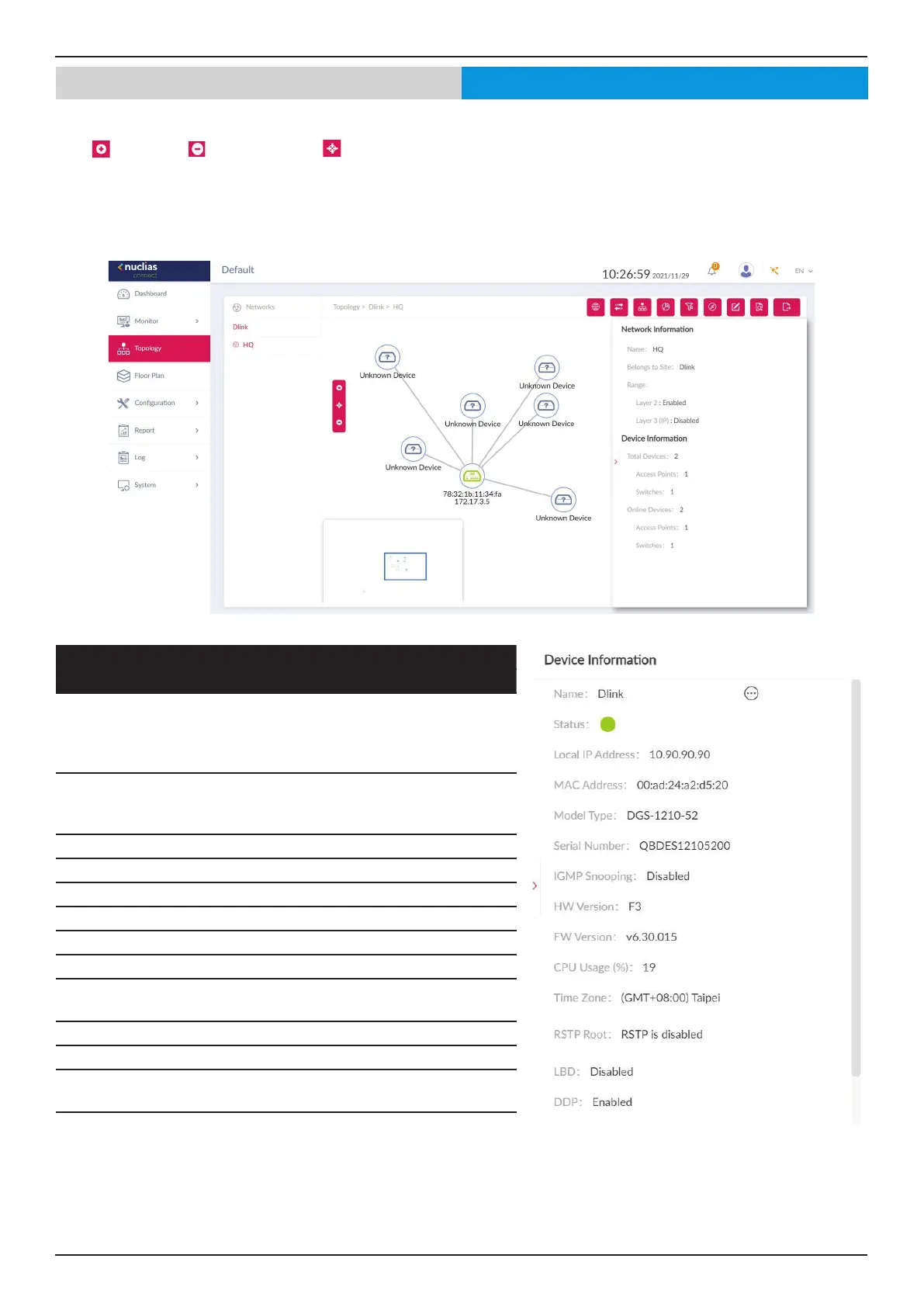

Nuclias Connect Topology
Under the Topology page, users can view the topological relations between switch devices and access points in a network.
Press
to zoom in, to zoom out, and to reset the topology. A basic network and device summary is displayed. The
following information is included: Network name, Belonging Site, Range, Total Device/Switch, Online Device/Switch.
Select an access point or switch from the site and network. The Device and Link information will be displayed on the right side.
Clicking on the green device icon will reveal detailed device information. Clicking on the link will reveal the Link information.
AP Device Detail
Field Description
Name Displays the name to identify the switch on
server. Click the name to be redirected to the
device detail page. Note that the AP name must
be unique to the Site.
Status Displays the connection status of the AP: Online,
Oine or Unmanaged. Green indicates online,
red indicates oine.
Local IP Address Displays the IP address.
MAC Address Displays the system MAC address of the device.
Model Type Displays the model type of the device.
Hardware Version Displays the hardware version of the device.
FW version Displays the Firmware version
CPU Usage (%) Displays the CPU Usage of the device.
Memory Usage
(%)
Displays the memory usage of the device.
Upload Displays the upload trac of the device.
Download Displays the download trac of the device.
Uptime Display the activating time of the AP since after
last start or reboot.
Location Displays the location of the device.
