4 SmartConsole Utility D-Link Web Smart Switch User Manual
4 SmartConsole Utility
The D-Link SmartConsole Utility allows the administrator to quickly discover all D-Link smart switches which
are in the same domain of the PC, collect traps and log messages, and quick access to basic configurations
of the switch.
The SmartConsole Utility consists of three parts, Device Configurations at the top, Device List as the main
body, and SmartConsole Settings at the left.
Device Configuration
SmartConsole
Settings
Device List

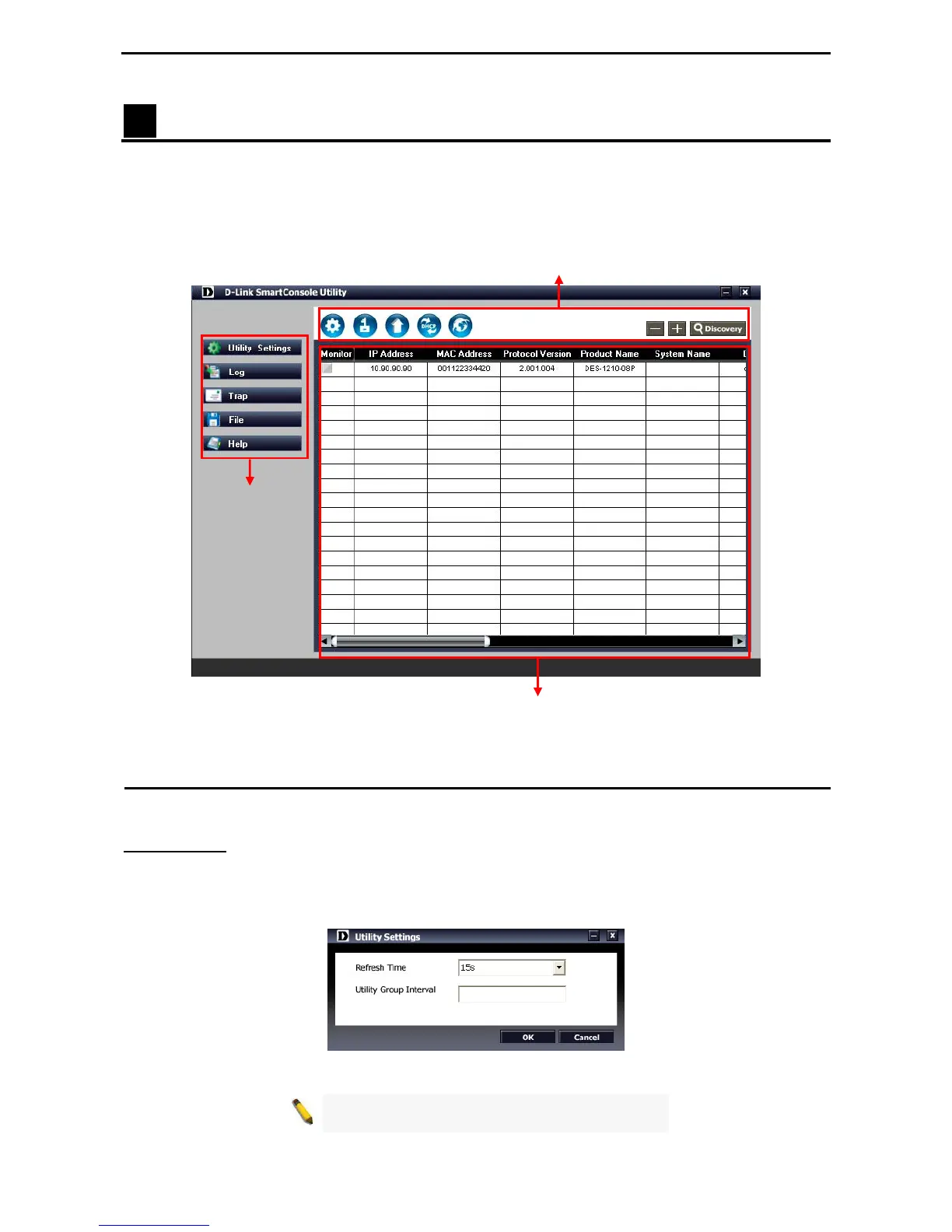

Figure 17 – SmartConsole Utility
SmartConsole Settings
The SmartConsole Settings at the left has five icons, Utility Settings, Log, Trap, File, and Help.
Utility Settings
Click this icon to launch the Utility Settings window. Refresh time refreshes the devices which were selected
as monitored device in the Device List. Choices include 15 secs, 30 secs, 1mins, 2mins, and 5 mins for
selecting the monitoring time intervals. Utility Group Interval establishes the intervals (in seconds) that the
Switch will be discovered in the SmartConsole Device List.
Figure 18 – SmartConsole Utility Settings
NOTE: If the Group Interval is set to 0, IGMP
Snooping must be disabled in the Switch or the
