7D-Link DIR-815 User Manual
Section 1 - Product Overview
1 Power LED
A solid green light indicates a proper connection to the power supply. This LED will light orange during a factory reset or
reboot. A slow blinking orange LED indicates that the Router has crashed during bootup.
2 Internet LED
A solid green light indicates the PPP negotiation has successfully completed. This LED blinks green during data transmission.
A solid orange light indicates that the physical link is up, but the ISP service is down. This LED blinks orange when a session is
dropped due to idle timeout.
3 WLAN LED (2.4GHz) A solid light indicates that the 2.4GHz wireless segment is ready. This LED blinks during wireless data transmission.
4 WLAN LED (5GHz) A solid light indicates that the 5GHz wireless segment is ready. This LED blinks during wireless data transmission.
5 LAN LEDs (1-4) A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission.

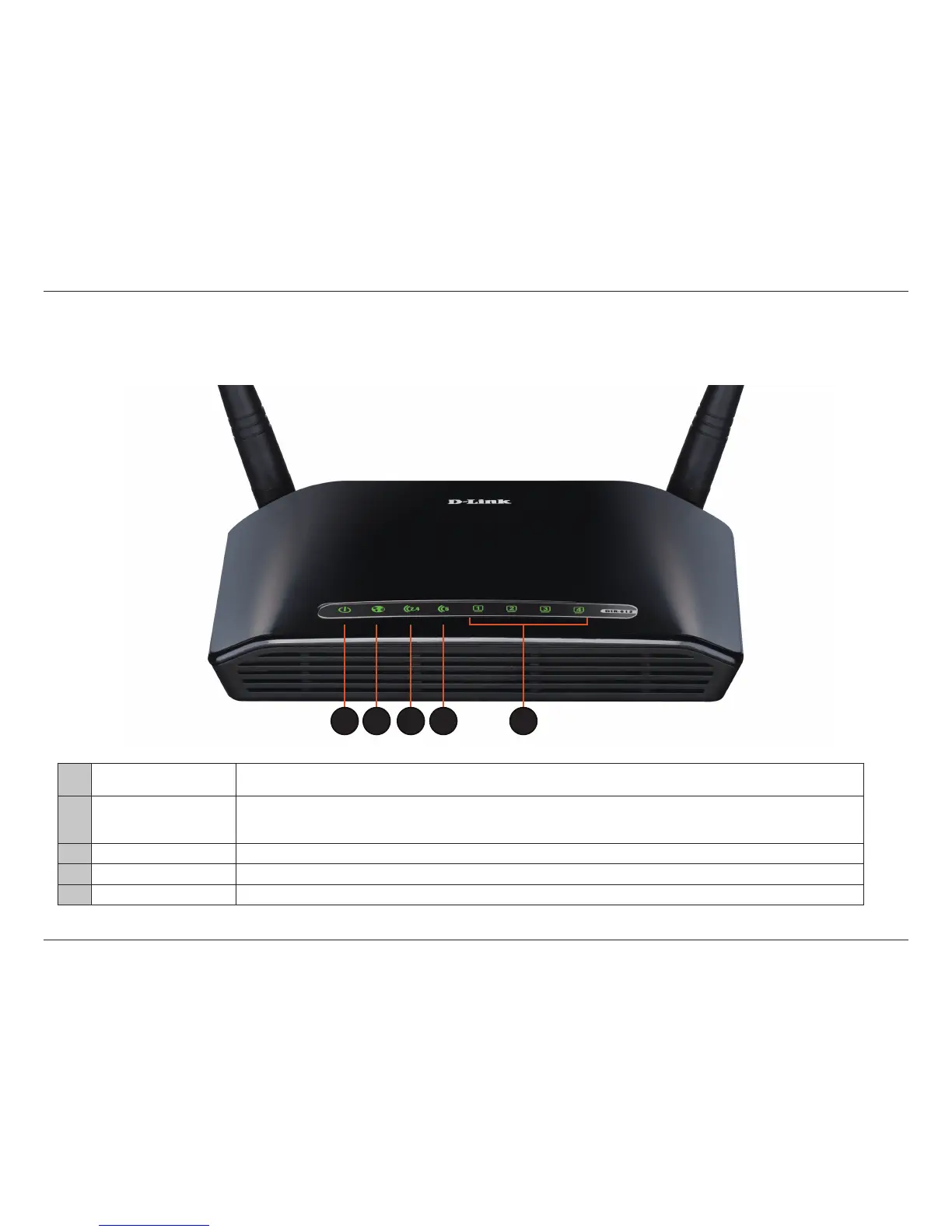

Hardware Overview
LEDs
1 2 3 4 5
