68D-Link DIR-815 User Manual
Section 3 - Conguration

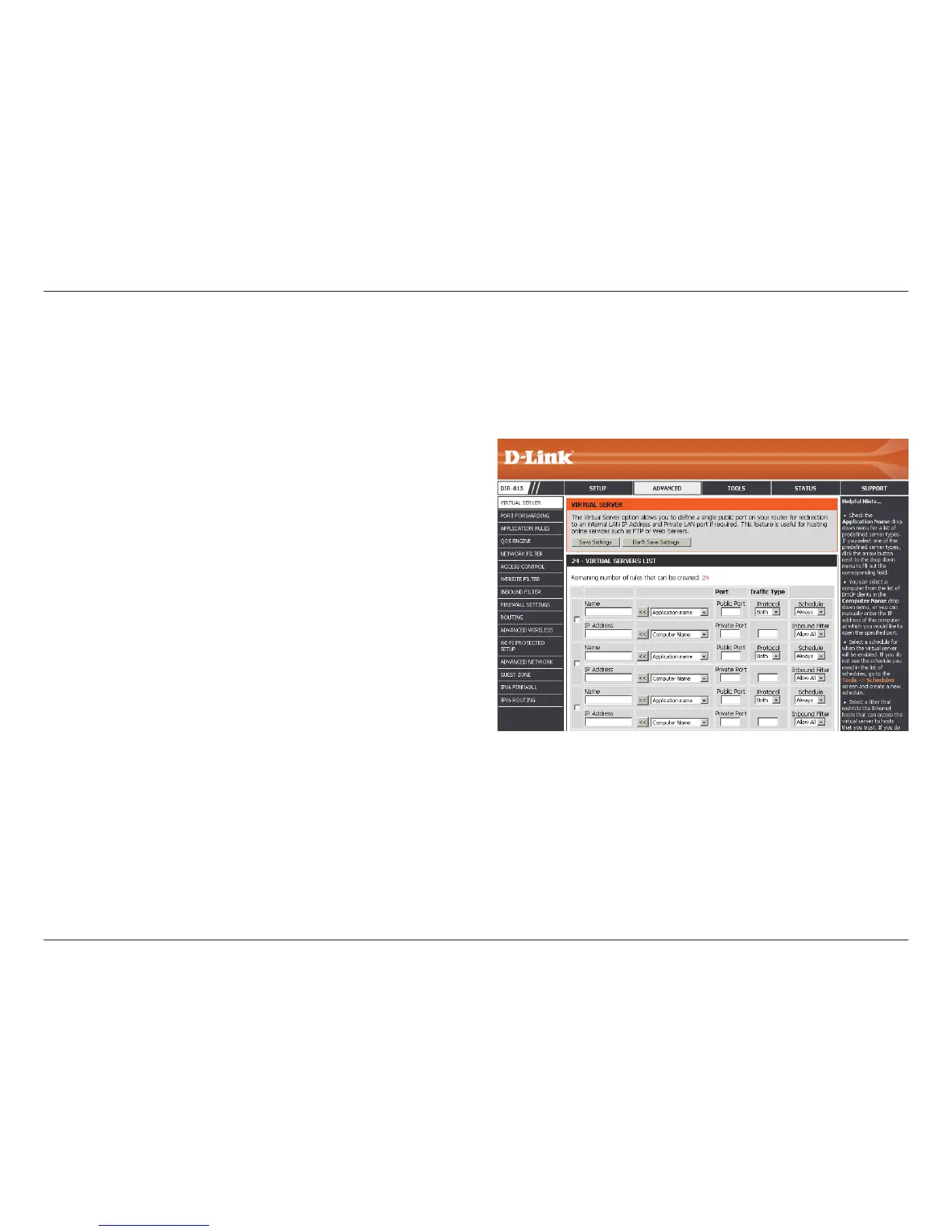

Virtual Server
Advanced
The Virtual Server window allows you to open a single port. If you would like to open a range of ports, refer to the next page.
Check the box on the left side to enable the Virtual Server
rule.
Enter a name for the rule or select an application from the
drop-down menu. Select an application and click << to
populate the elds.
Enter the IP address of the computer on your local network
that you want to allow the incoming service to. If your
computer is receiving an IP address automatically from
the router (DHCP), you computer will be listed in the
Computer Name drop-down menu. Select your computer
and click <<.
Enter the port that you want to open next to Public Port
and Private Port. The public and private ports are usually
the same. The public port is the port seen from the Internet
side, and the private port is the port being used by the
application on the computer within your local network.
Select TCP, UDP, or Both from the Protocol drop-down
menu.
Use the drop-down menu to schedule the time that the
Virtual Server Rule will be enabled. The schedule may be
set to Always, which will allow the particular service to
always be enabled. You can create your own times in the
Tools > Schedules section.
Enable
Checkbox:
Name:
IP Address:
Public Port/
Private Port:
Trac Type:
Schedule
Drop-Down
Menu:
To Next Page
