34D-Link DIR-815 User Manual
Section 3 - Conguration
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password in
the next box.
Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand or
Manual option.
To specify a custom schedule, use the drop-down menu to
select one of the schedules that has been dened in the Tools
> Schedules window. To create a new schedule, click the New
Schedule button. Refer to “Schedules” on page 97 for more
information.
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP

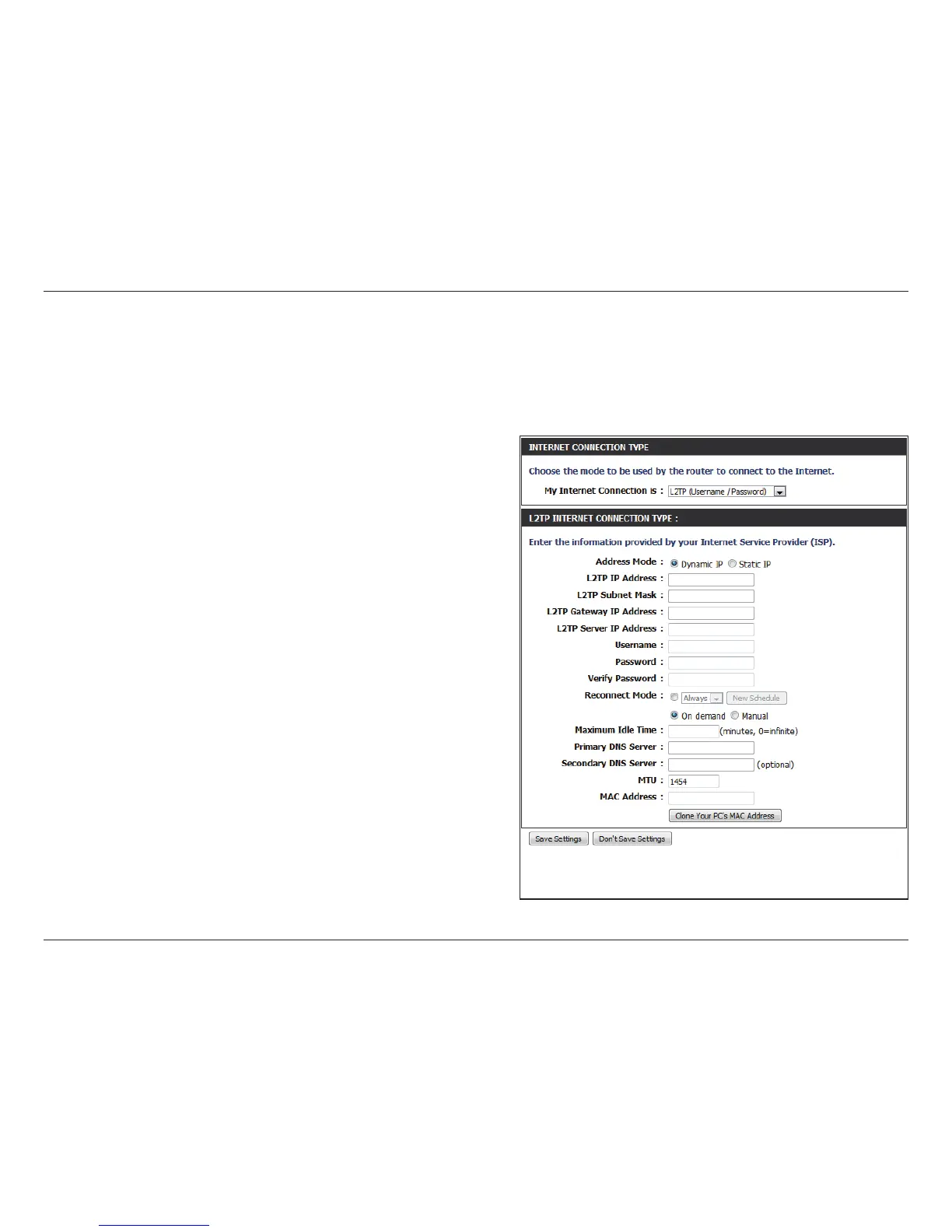

Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Reconnect
Mode:
