xStack
®
DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
NOTE: Fo r customers inte rested in D-View, D-Lin k Corporation's proprietary SNMP
management software, go to the D-Link Website (www.dlink.com) and downlo ad the
software and manual.

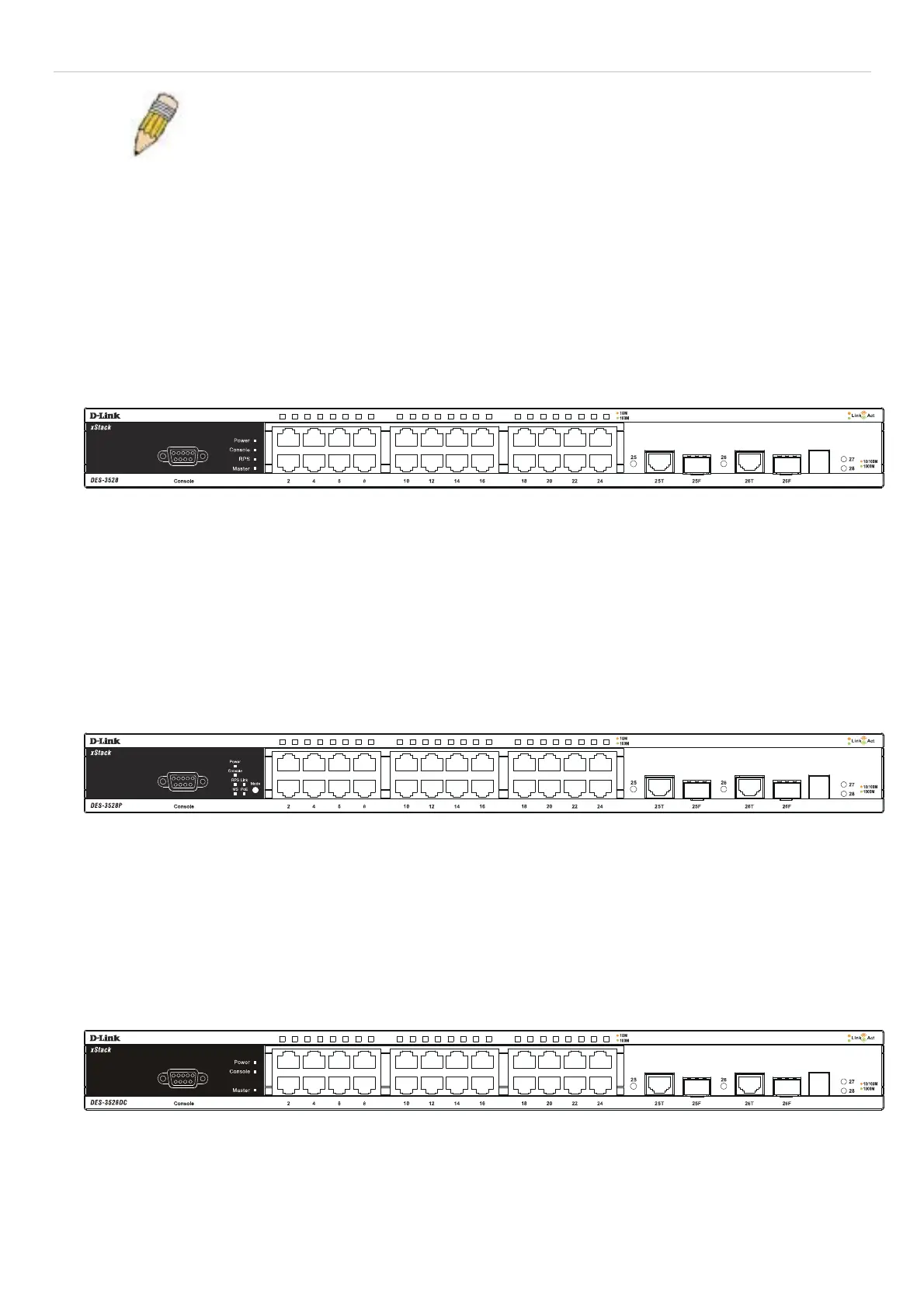

Front-Panel Components
DES-3528
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS-232 DB-9 console port
• LEDs for Power, Console, RPS, Master, Link/Act/Speed for each port
Figure 1- 1. Front Panel View of the DES-3528 switch
DES-3528P
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• One PoE Select Button
• LEDs for Power, Console, RPS, MS, Link, PoE, Link/Act/Speed for each port
Figure 1- 2. Front Panel View of the DES-3528P switch
DES-3528DC
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS-232 DB-9 console port
• LEDs for Power, Console, Master, Link/Act/Speed for each port
Figure 1- 3. Front Panel View of the DES-3528DC switch
DES-3552
• Forty-eight 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
4
