DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• LEDs for Power, Console, RPS, Master, Link/Act/Speed for each port

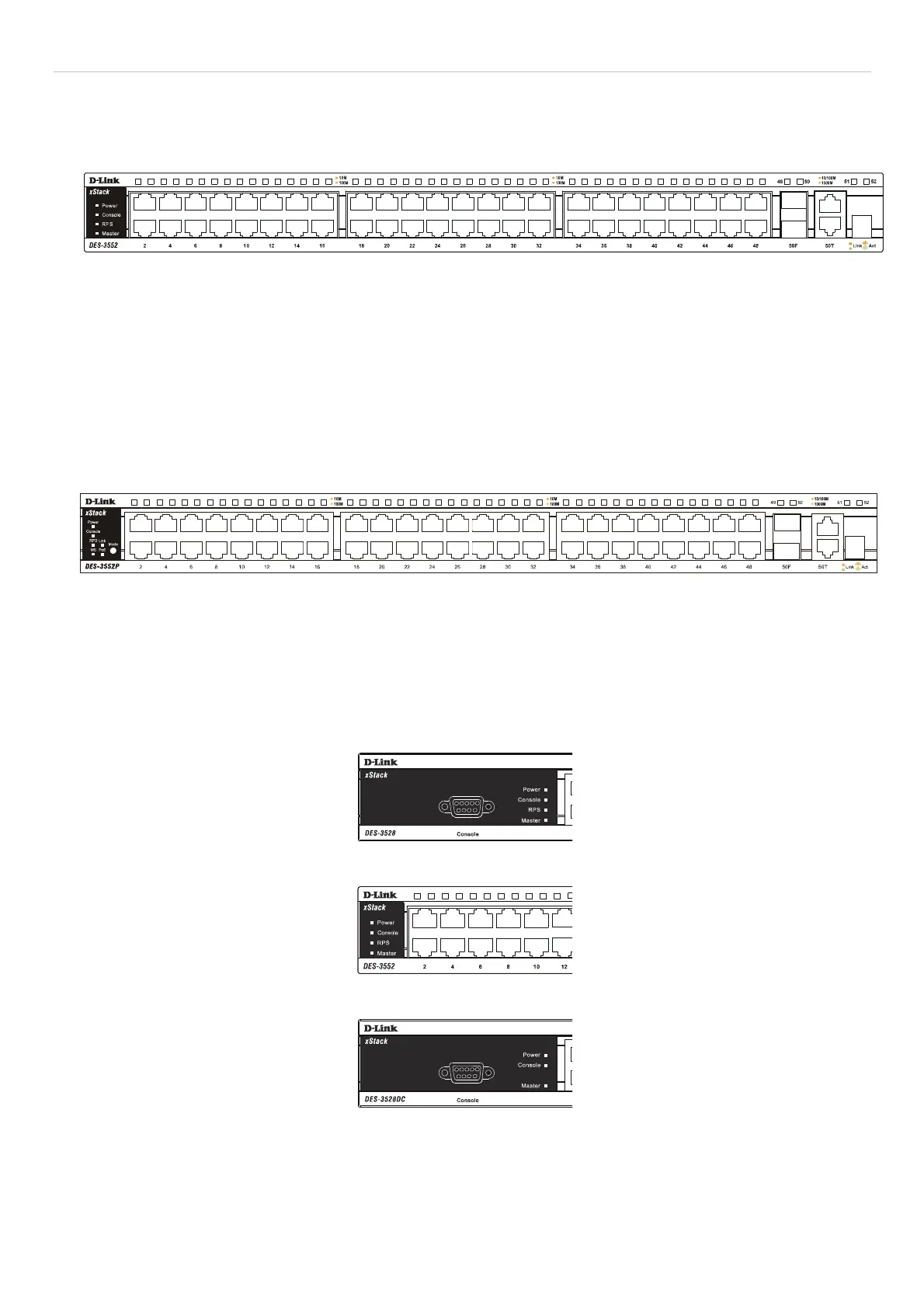

Figure 1- 4. Front Panel View of the DES-3552 switch
DES-3552P
• Forty-eight 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• One PoE Select Button
• LEDs for Power, Console, RPS, MS, Link, PoE, Link/Act/Speed for each port
Figure 1- 5. Front Panel View of the DES-3552P switch
LED Indicators
The Switch suppo rts LED indicators for Power, Con sole, RPS, Master (on DE S-3528P and DES-3552P, this LED is
for MS) and Port LEDs. The following shows the LED indicators for the DES-3528/DES-3552 switch series along with
an explanation of each indicator. LEDs and their corresponding meanings are displayed below.
Figure 1- 6. LED Indicators on DES-3528 switch
Figure 1- 7. LED Indicators on DES-3552 switch
Figure 1- 8. LED Indicators on DES-3528DC switch
