xStack
®
DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Installing the Switch without the Rack
When installi ng the Switch on a deskt op or shelf, the rubb er feet included with the Switch shoul d first be attached.
Attach these cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the
Switch and any other objects in the vicinity.

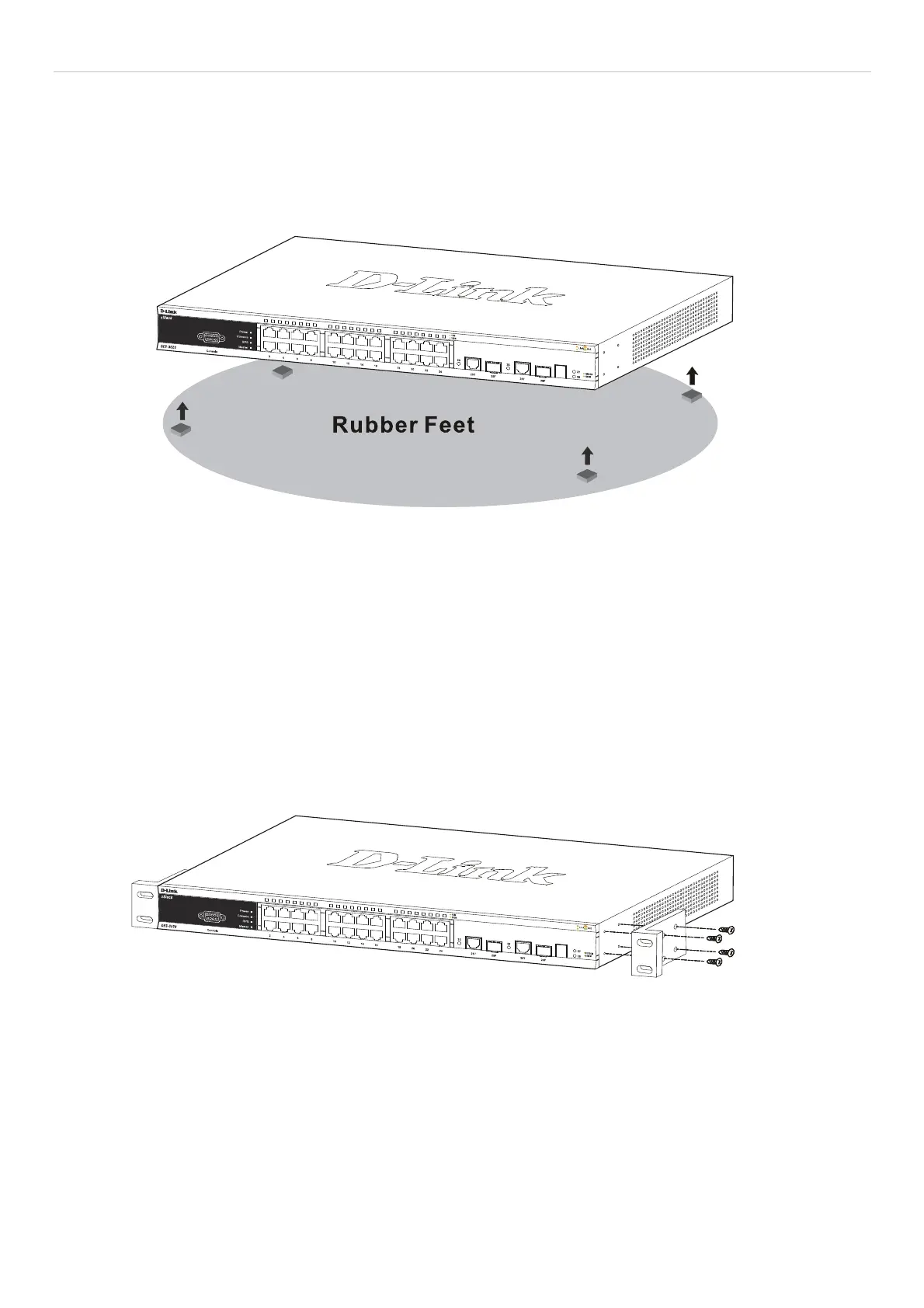

Figure 2- 1. Preparing the Switch for installation on a desktop or shelf
Installing the Switch in a Rack
The Switch can be mounted in a standard 19" rack. Use the following diagrams to guide you.
Figure 2- 2. Fasten mounting brackets to the Switch
Fasten the mounting brackets to the S witch using the screws provided. With the brackets attached securely, you ca n
mount the Switch in a standard rack as shown in Figure 2-3 below.
12
