DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Gigabit Combo Ports
In addition to the 24/48 10/100 Mbp s ports, the Switch feat ures two Giga bit Ethernet Combo ports. The se two port s
are 1000BASE-T copper ports (provided) and SFP ports (optional). See the di agram below to view the t wo SFP port
modules bei ng plug ged i nto the Switch. Please n ote that although the se t wo front pa nel module s can be u sed
simultaneously. At the same time, only one copper port or one SFP port can link up for each combo po rt. The SFP
port will always have the highest priority.

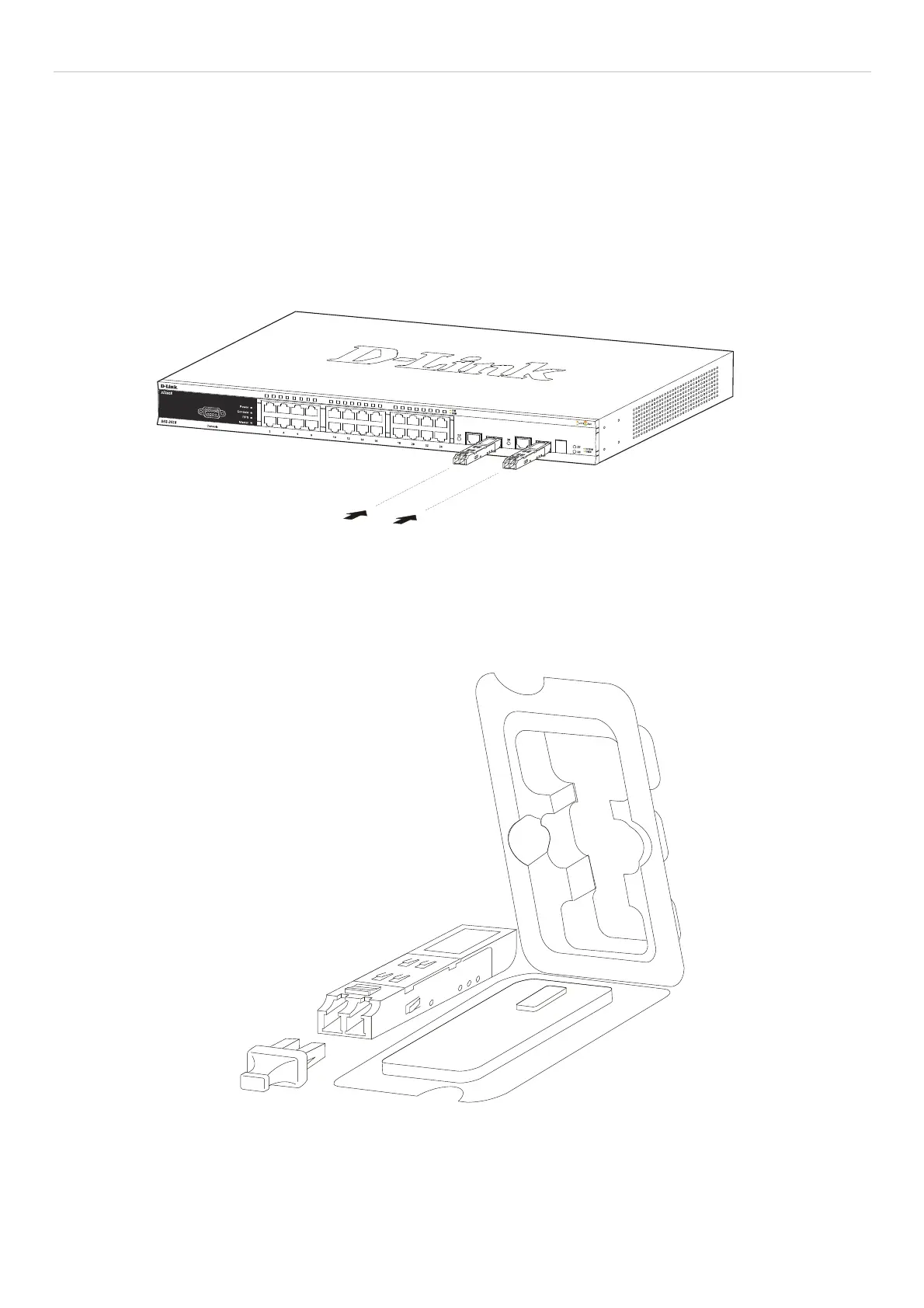

Figure 1- 19. Inserting the SFP modules into the DES-3528/DES-3528P/DES-3528DC/DES-3552/DES-3552P
Figure 1-20. Installing the SFP Module
