DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide

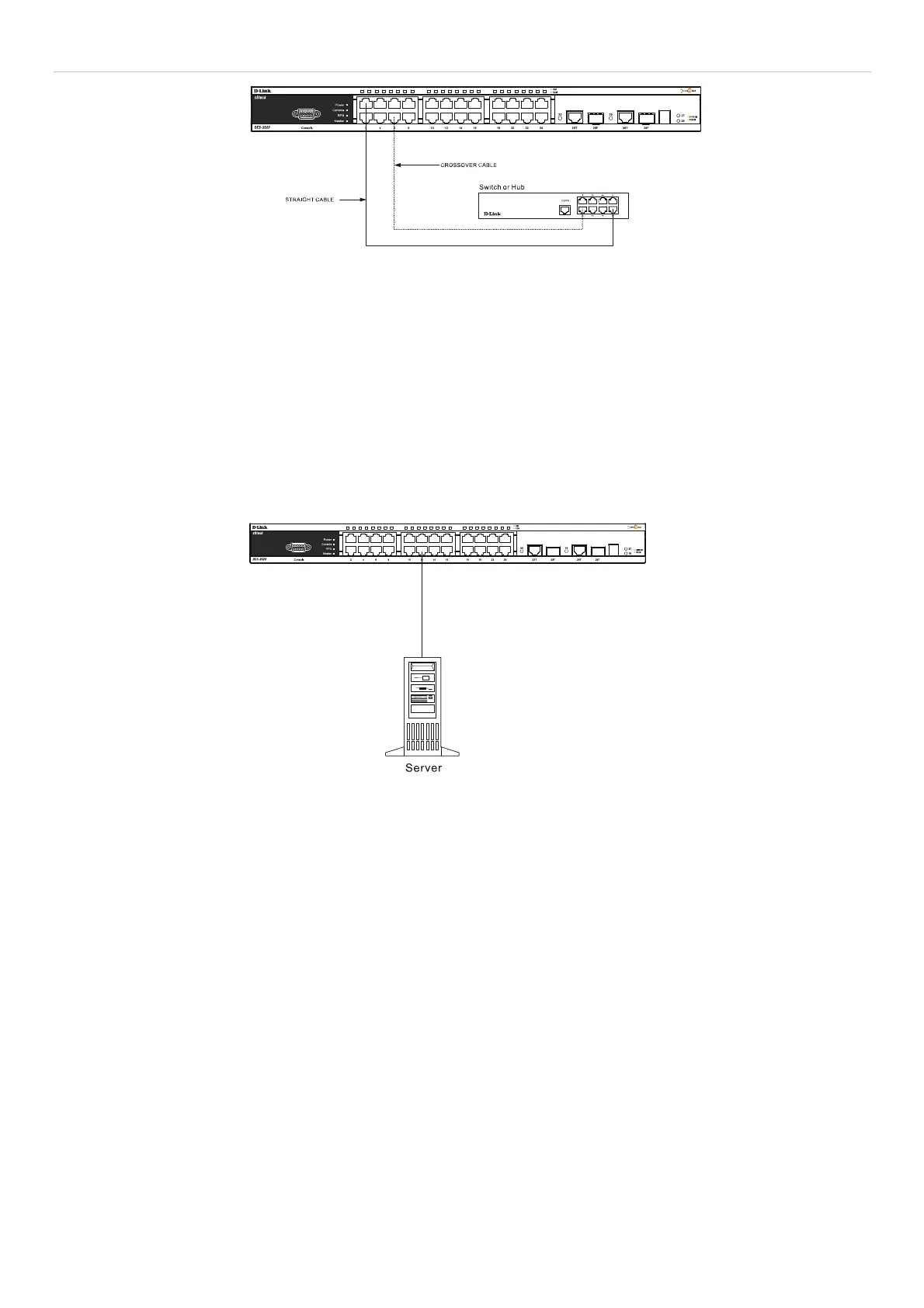

Figure 3- 2. The Switch connected to a normal (non-Uplink) port on a hub or switch using a straight or
crossover cable
Connecting To Network Backbone or Server
The two SFP combo ports are ideal for linking to a network backbone or server. The copper ports operate at a speed
of 1000, 100 or 10Mbps in full or half duplex mode. The fiber optic ports can operate at 100Mbps or 1000Mbps in full
duplex mode.
Connections to the Gigabit Ethernet po rts are m ade using fiber optic cable or Category 5E copper cable, depending
on the type of port. A valid connection is indicated when the Link LED is lit.
Figure 3- 3. Connecting the Switch to a Server
