xStack
®
DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide

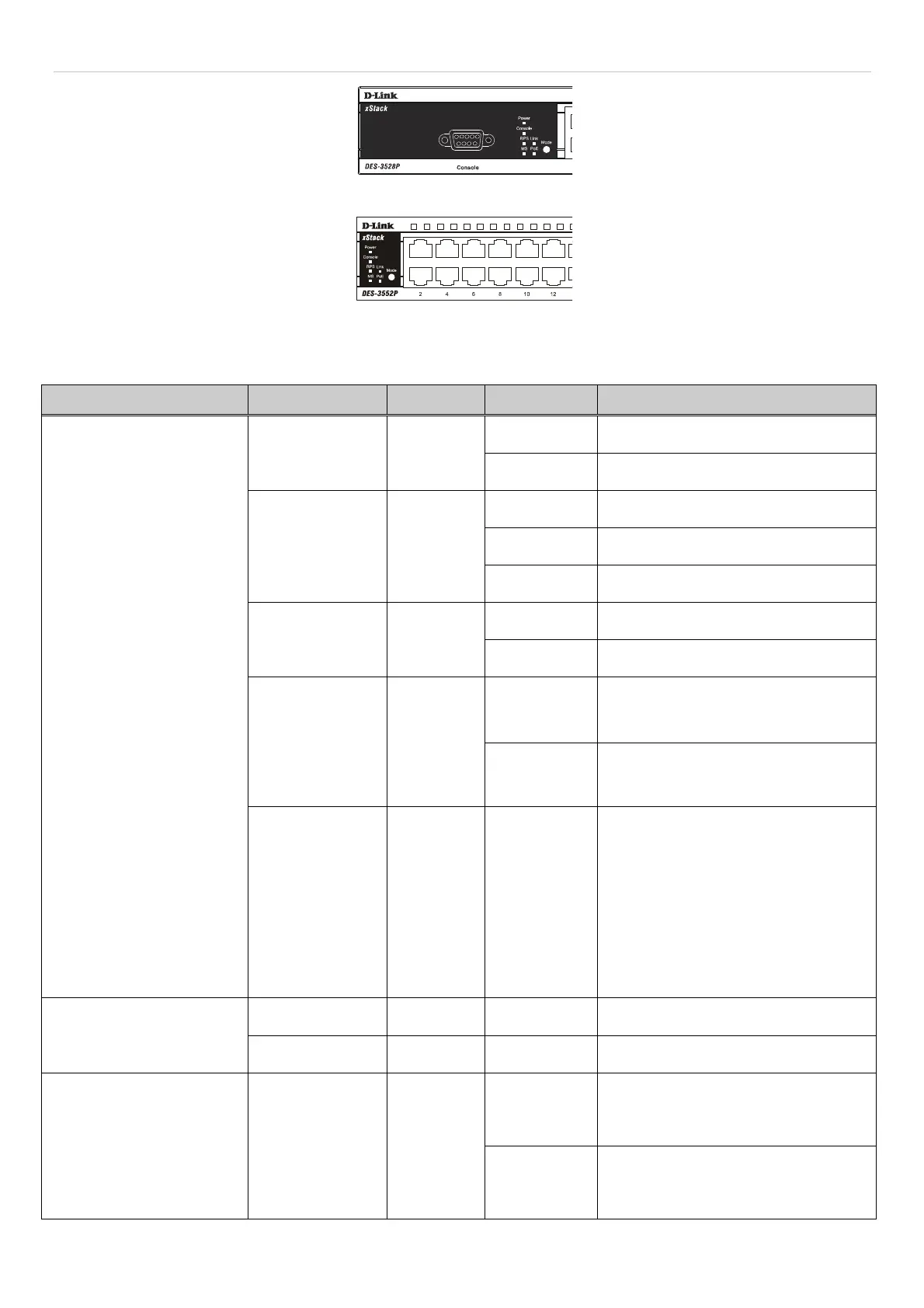

Figure 1- 9. LED Indicators on DES-3528P switch
Figure 1- 10. LED Indicators on DES-3552P switch
LED indicators for DES-3528/DES-3528DC/DES-3552/DES-3528P/DES-3552P
Location LED Indicative Color Status Description
Per Device
Power
Green
Solid Light Power On
Light off Power Off
Console
Green
Solid Light Console on
Blinking POST is in progress.
Light off Console off
RPS (Not for
DES-3528DC)
Green
Solid Light RPS is in Use
Light Off RPS Off
Master(MS)
Green
Solid Light
When the device is the stacking
master.
Light off Not the Stacking Master.
Stacking ID
Green Capable 1-8
The Box ID is assigned either by the
user (static mode) or by the system
(automatic mode). When the box
becomes a primary master the 7
segments work bi-functionally. The box
ID and “H” indicate the primary Master
and the display on other switches will
be shown in turn. That is boxID- > H ->
boxID -> H…
Mode Select Button
(DES-3528P and
DES-3552P only)
Link/Act/Speed
Green Solid Light Link/Act/Speed Mode
PoE
Green Solid Light PoE Mode
LED Per 10/100 Mbps Port Link/Act/Speed
Green/Amber
Solid Green
When there i s a secure 1 00Mbps F ast
Ethernet con nection (or link) at any of
the ports.
Blinking Green
When there is reception or transmission
(i.e. Activity—
ct) of data occurring at a
Fast Ethernet connected port.
6
