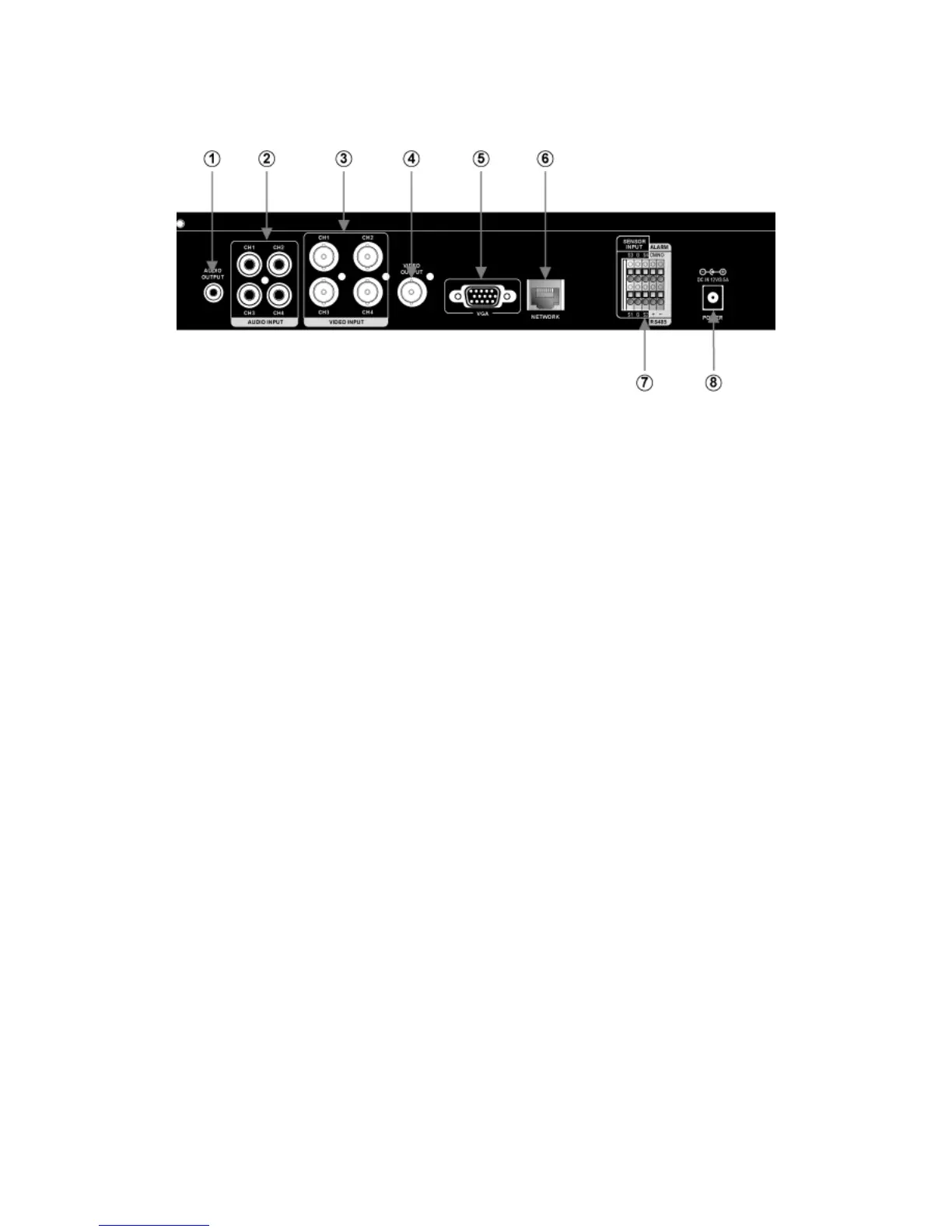

[1] Audio Out : Output Port for the Audio Signal
[2] Audio In (1~4) : Input Port for the Audio Signal
[3] Video In : Input Port for composite Video Signal
[4 Video Out : BNC Type of Output Port for the composite Video Signal
[5] VGA : Output Port for VGA Video Signal
[6] NETWORK : Network Connection Port
[7] Alarm / Sensor / RS-485 (When you connect to PTZ Cameras)
( Refer to the detailed settings in each part in the manual.)
[8] Power : Port to be connected to DC 12V/3.5A Power Source
