INTRODUCTION

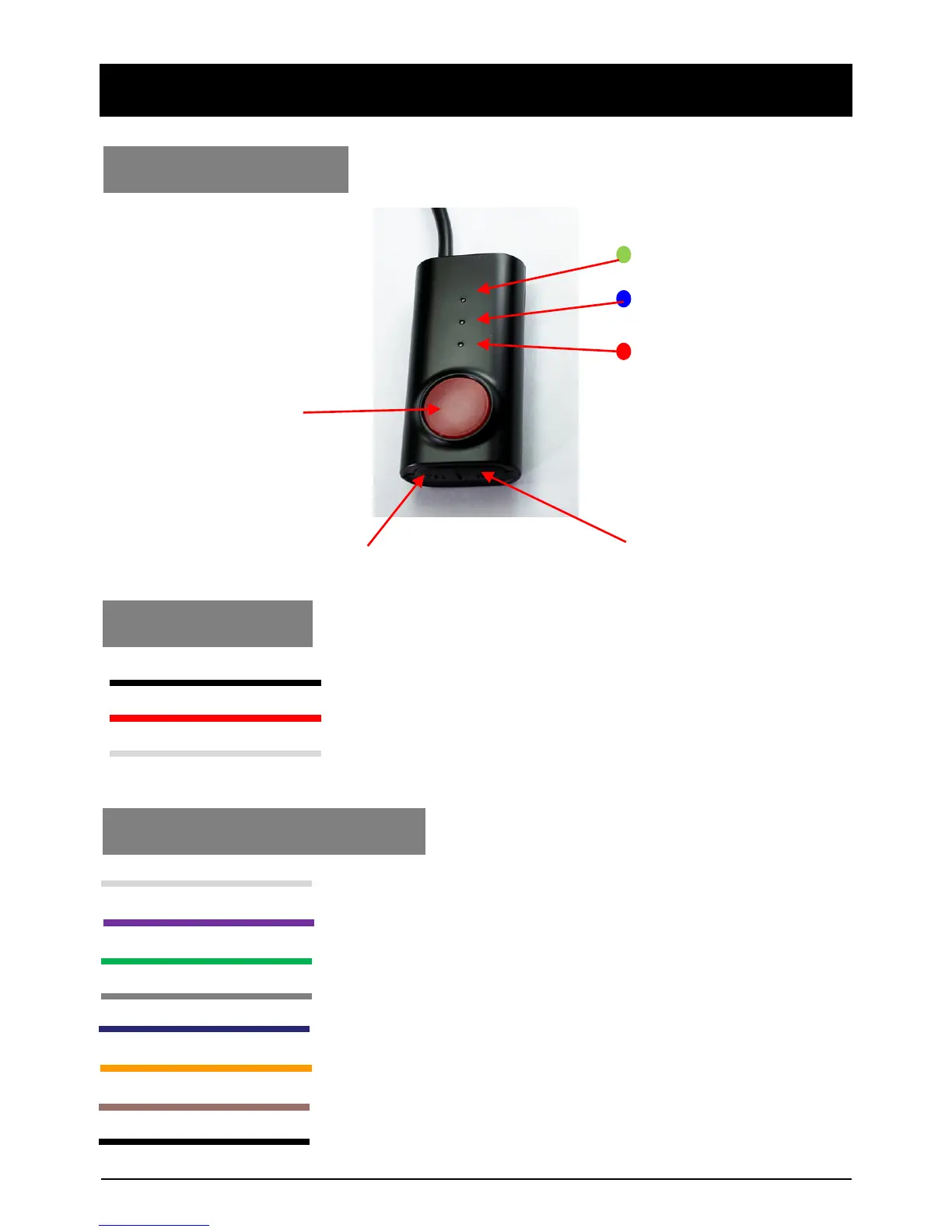

Remote Controller
M2 button
M1 button
PANIC
Button
POWER CABLE
Green LED (Network)
Blue LED (Record)
Red LED (Warning)
Black (Ground)
Red (Power Battery +)
White (Power ACC + )
Blue (Speed)
Brown (Alarm out2 ), Low(0V) to High (5V)
3 x Black (Ground)
Orange (Alarm out1), Low(0V) to High (5V)
Alarm in/out Cable
White (Alarm In1, Voltage on/off (3~70V))
Green (Alarm In3, Voltage on/off (3~70V))
Gray (RPM)
Purple (Alarm In2, Voltage on/off (3~70V))
