Da-Lite Cosmopolitan Electrol - Installation

3

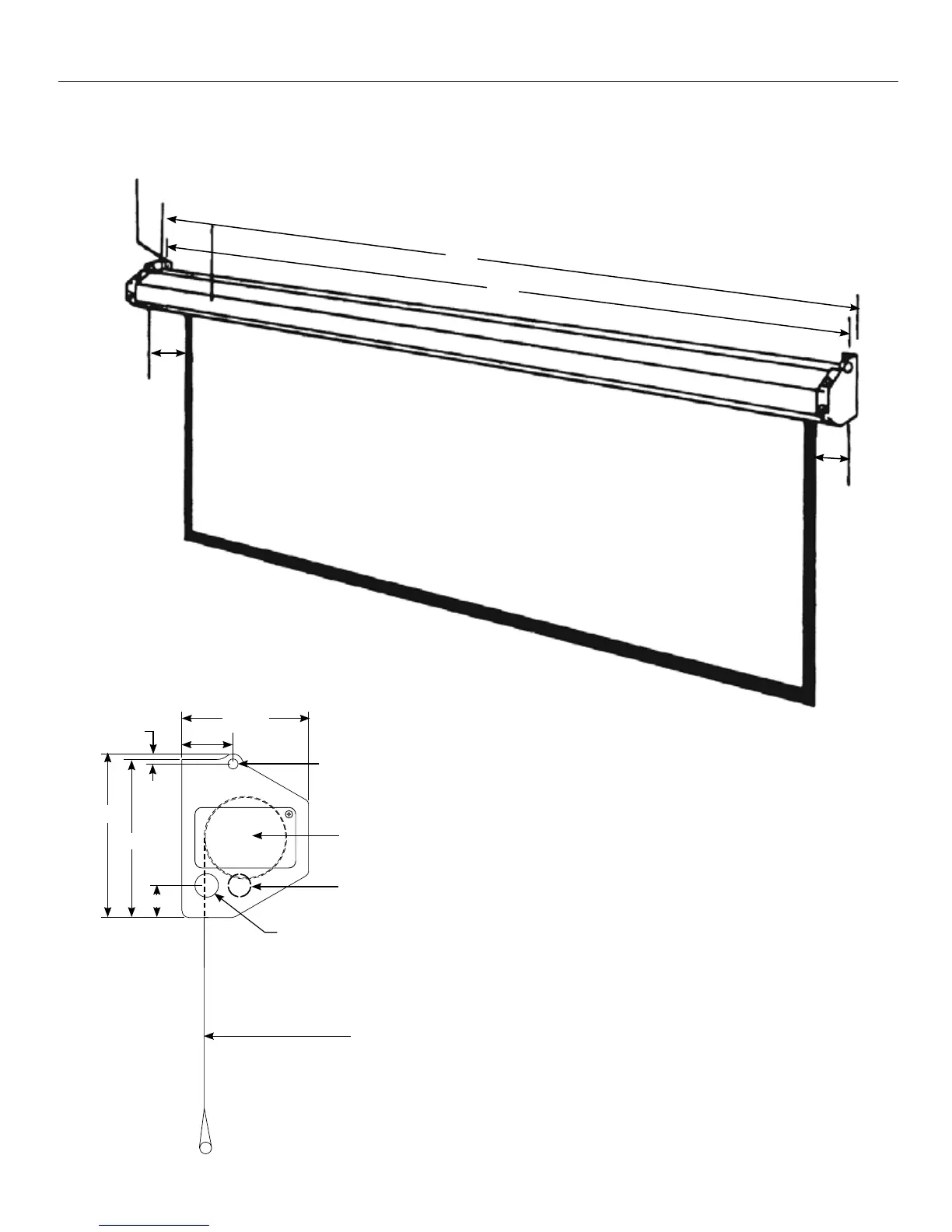

Fabric Height x Width As Ordered, Up To 9
Feet x 12 Feet
Keyhole For Wall Installation
Overall length A = fabric width + 8".
Length B is the distance between wall mounting holes at back of end
caps and is the fabric width + 6 ½".
4"
4"
Motor End
A
B
Installation
⅜" Diameter For
Ceiling Installation
Enclosure Cover
⅞" Diameter Opening
For Electrical Fittings
Surface
1 ⁄"
⁄"
⅞" Diameter
Knock Out
4 ⁄"
5 ⅞"
6 ⁄"
1 ⁄"
