DAB EVOSTA2 - Table 4: Mounting the Evosta3 Connector

ENGLISH
39
EVOSTA3
Phase
1
2
3
Action
Unscrew the cable gland nut
and extract the terminal board
from the connector, releasing it
from the side clips.
Rotate the terminal board
through 180°.
Fit nut and connector on the
cable. Strip the wires as
indicated in the figure.
Connect the wires to the
terminal board, respecting
the phase, neutral and earth
Illustratio
n
Phase
4
5
Action
Insert the wired terminal board
in the cable gland, securing it
with the side clips.
Screw on
the locking nut.
Connect the wired
connector to the pump,
securing it with the rear
hook.
Illustratio
n

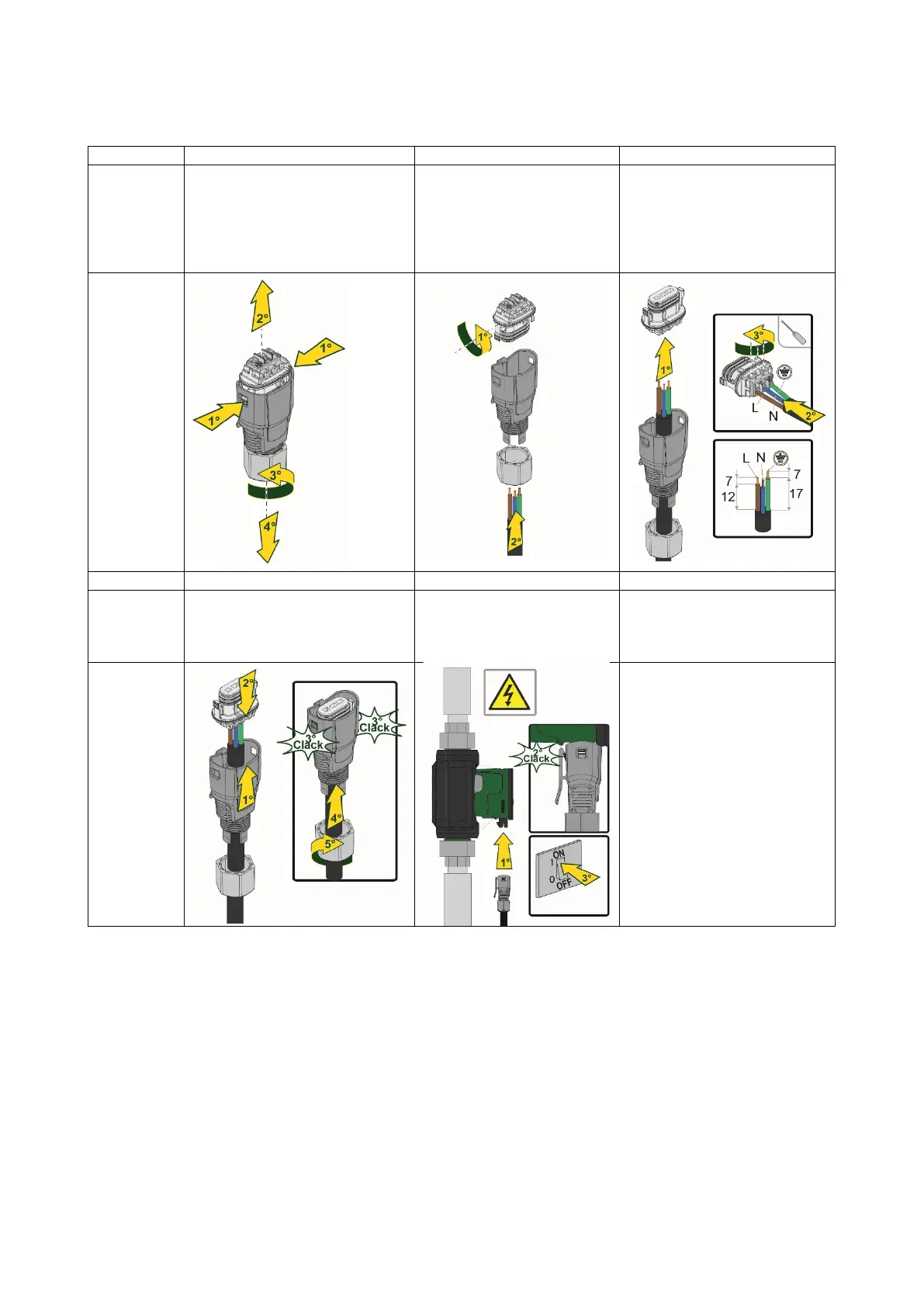

Table 4: Mounting the Evosta3 connector
