17. DIMENSIONS

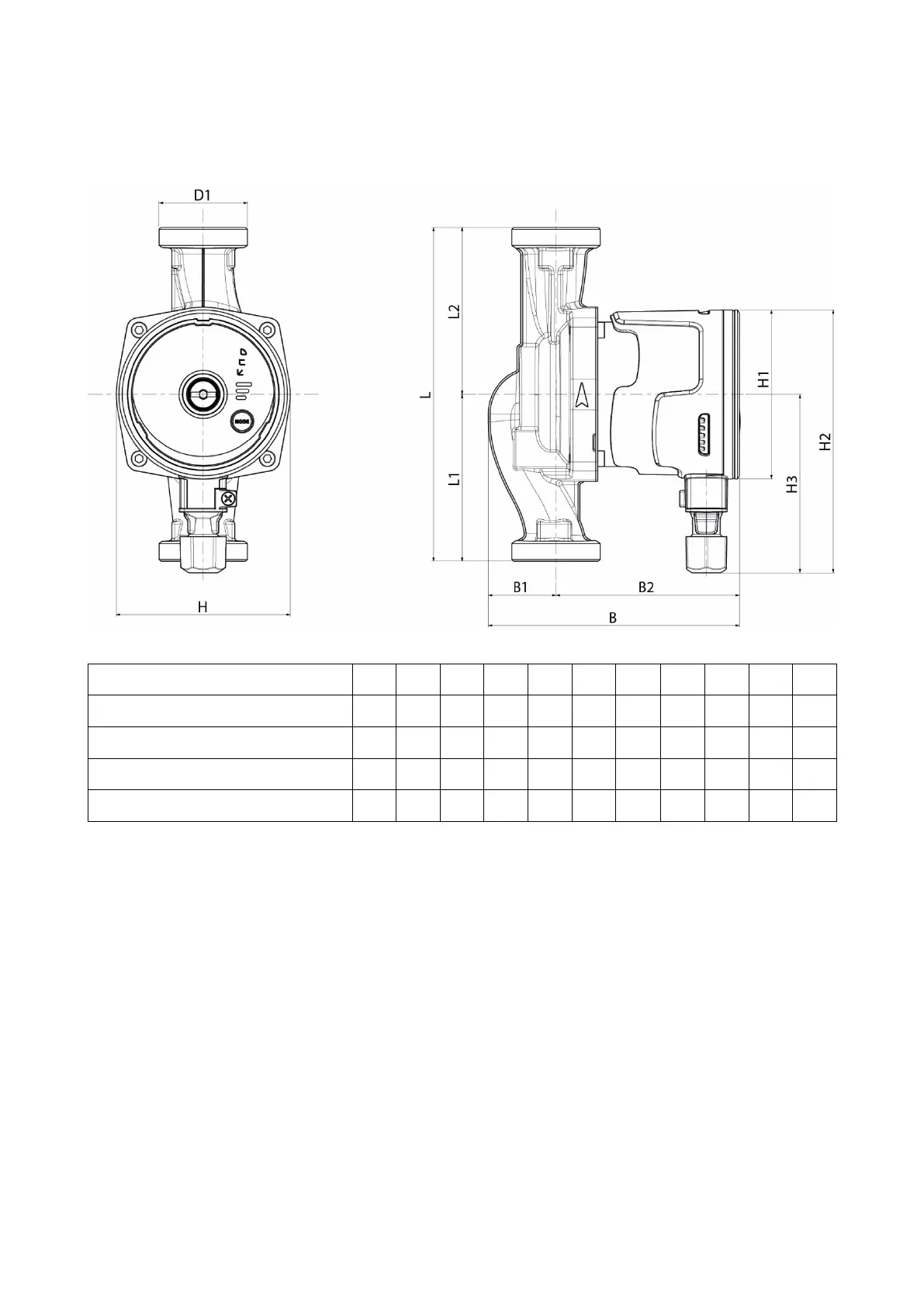

Evosta 2 Dimensions
Mod. L L1 L2 B B1 B2 D1 H H1 H2 H3
EVOSTA2 40-70/80/130 (1/2") M230/50-60 130 65 65 135 36 99 1” 94 Ø91 142 96
EVOSTA2 40-70/80/130 (1") M230/50-60 130 65 65 135 26.5 109 1”1/2 91 Ø91 142 96
EVOSTA2 40-70/80/180 (1") M230/50-60 180 90 90 135 36 99 1”1/2 94 Ø91 142 96
EVOSTA2 40-70/80/180 (1"1/4) M230/50-60 180 90 90 135 36 99 2” 94 Ø91 142 96
