DAB EVOSTA2 - 10 Start; Table 5: Mounting the Evosta2 Connector

ENGLISH
40
EVOSTA2
Phase
1
2
3
Action
Unscrew the cable gland
nut and extract the terminal
board from the connector.
Remove the retaining screw.
Fit nut and connector on the
cable. Strip the wires as
indicated in the figure. Connect
the wires to the terminal board,
respecting the phase, neutral
and earth.
Illustration
Phase
4
5
Action
Insert the wired terminal
board in the cable gland.
Screw on the locking nut.
Connect the wired connector
to the pump and tighten the
retaining screw.
Illustration

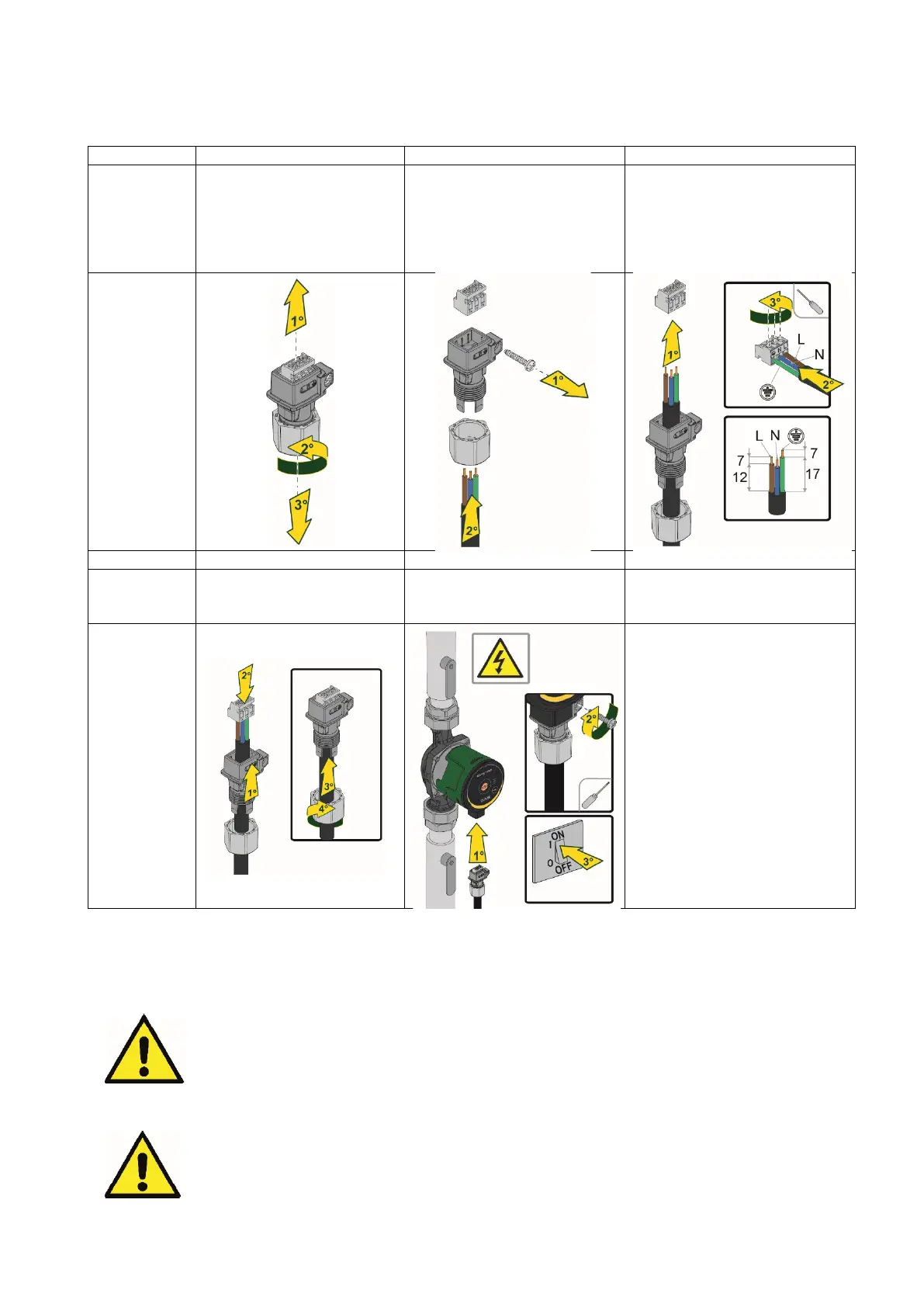

Table 5: Mounting the Evosta2 connector
10. START
All the starting operations must be performed with the cover of the EVOSTA2,
EVOSTA3 control panel closed.
Start the system only when all the electrical and hydraulic connections have been
completed.
Avoid running the circulator when there is no water in the system.
As well as being at a high temperature and pressure, the fluid in the system may also
be in the form of steam. DANGER OF SCALDING!
It is dangerous to touch the circulator. DANGER OF SCALDING!
