<INSPECTION>
●This vehicle is equipped with viscous
type air cleaner element containing oil
and the element cannot be cleaned.
●Replace element after each operation of
4,000km.
<DISASSEMBLING>
●Loosen four screw and remove air
cleaner case cover.
●Loosen four washer screw and air
cleaner element.
<ASSEMBLING>
●Assemble in the opposite order of
disassembling.
① Put vehicle in upright position on a flat
ground.
② Start engine and let it run idle for a few
minutes.
③ Using the throttle stop screw, adjust
idling to prescribed level.
IDLING REVOLUTION: 1,400
±±
100rpm
④ Tighten up pilot screw and loose
backward 1¾ to open.
⑤ Operate throttle lever lightly and verify
there is no change in the number of idle
running. If there is a change, repeat the
process described in paragraph ③ and ④
39
IDLE SPEED ADJUSTMENTAIR CLEANER ELEMENT
CAUTION
●If air cleaner element is inadequately
assembled, dust and other foreign
matters are absorbed directly into the
element, inducing cylinder wear or
output deterioration and adversely
affecting engine durability. Asse-
mble correctly.
●When cleaning vehicle, be careful
not to allow water to get into air
cleaner. If water gets inside air
cleaner, it causes inefficient engine
starting.

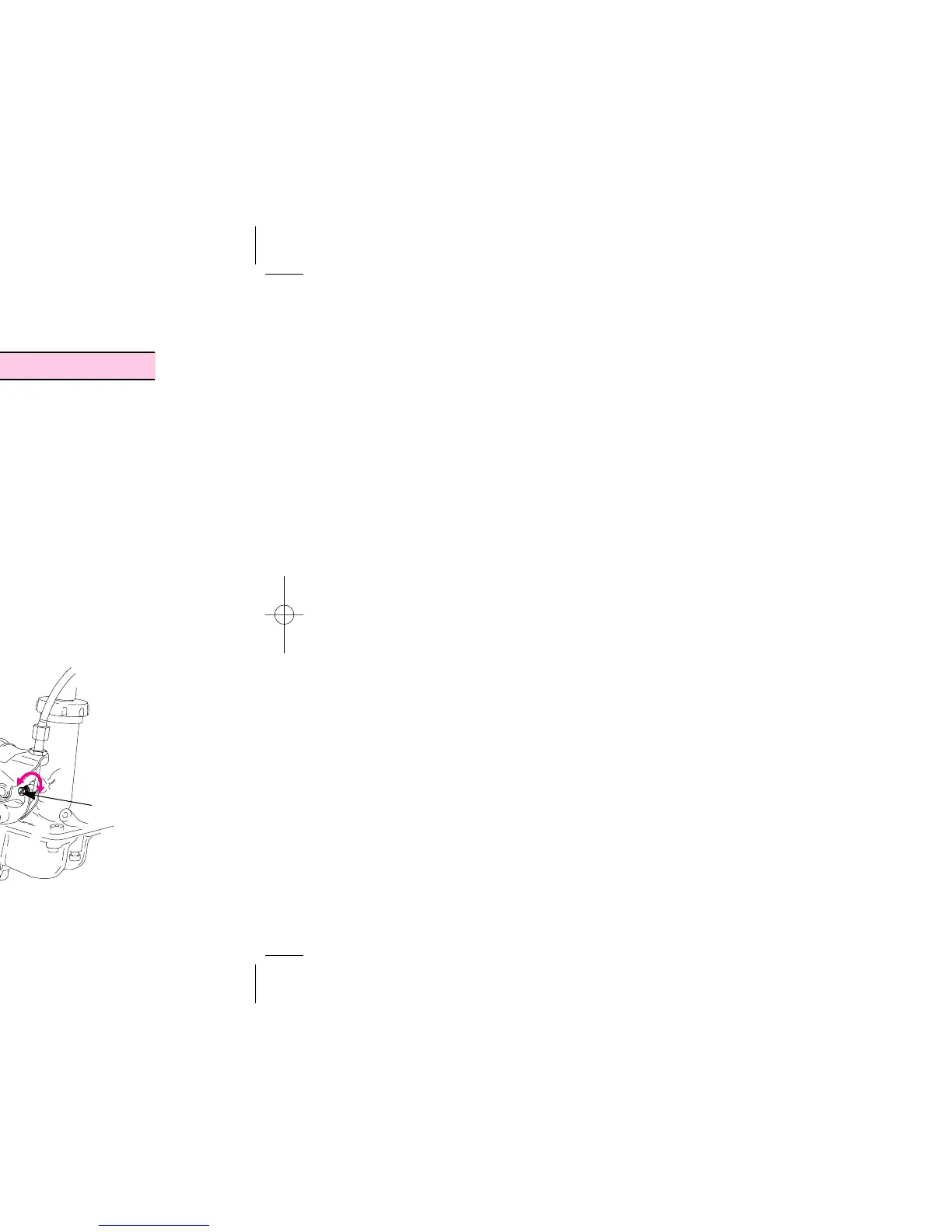

SCREW
AIR CLEANER CASE COVER
THROTTLE
STOP SCREW
AIR CLEANER ELEMENT
WASHER SCREW
