0-
pull

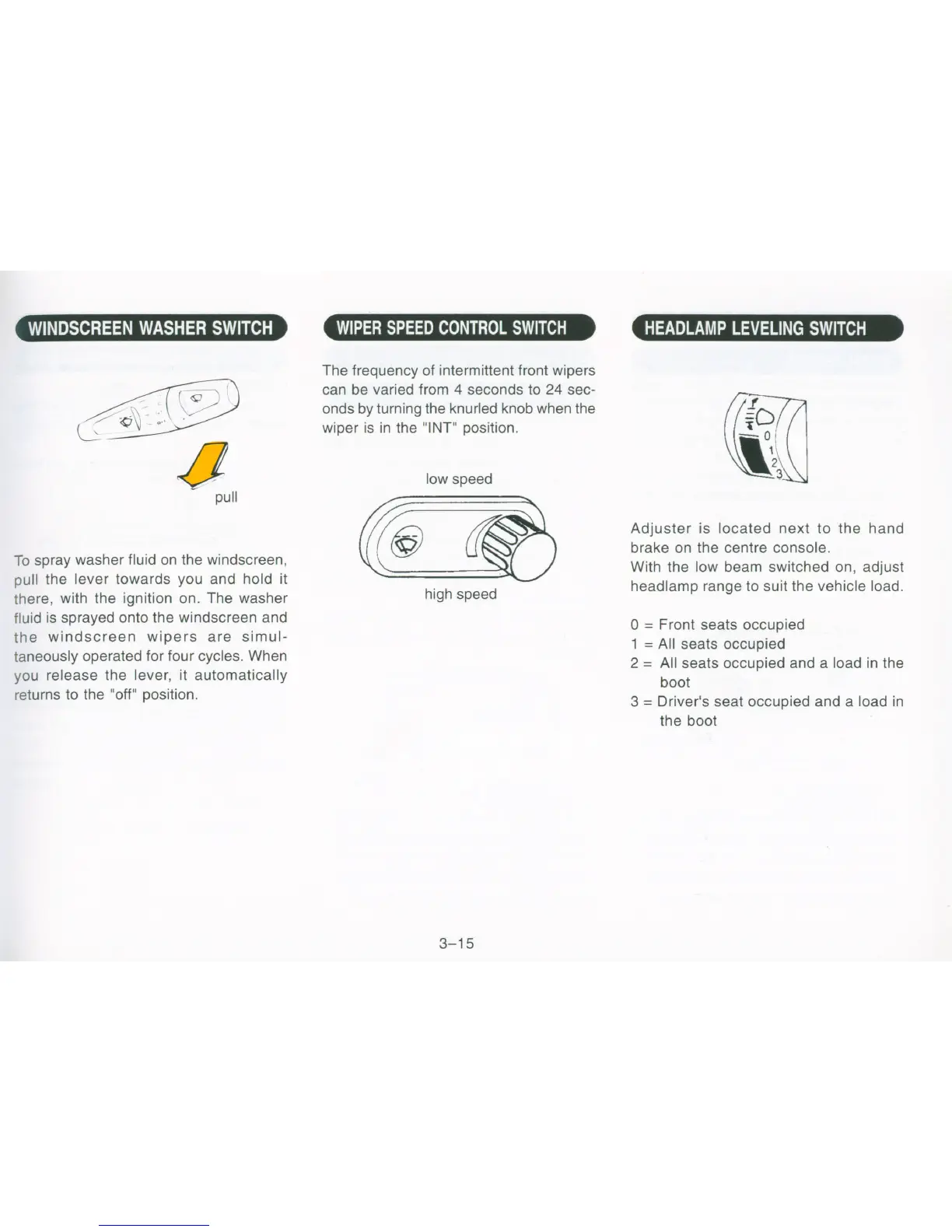

To spray washer fluid on the windscreen,
pull the lever towards you and hold it
there, with the ignition on. The washer
fluid is sprayed onto the windscreen and
the windscreen wipers are simul-
taneously operated for four cycles. When
you release the lever, it automatically
returns to the "off" position.
WIPER SPEED CONTROL SWITCH
The frequency of intermittent front wipers
can be varied from 4 seconds to 24 sec-
onds by turning the knurled knob when the
wiper is in the "INT" position.
low speed
~~
high speed
3-15
HEADLAMP LEVELING SWITCH
~
Adjuster is located next to the hand
brake on the centre console.
With the low beam switched on, adjust
head lamp range to suit the vehicle load.
o
=
Front seats occupied
1 = All seats occupied
2 = All seats occupied and a load in the
boot
3
=
Driver's seat occupied and a load in
the boot
