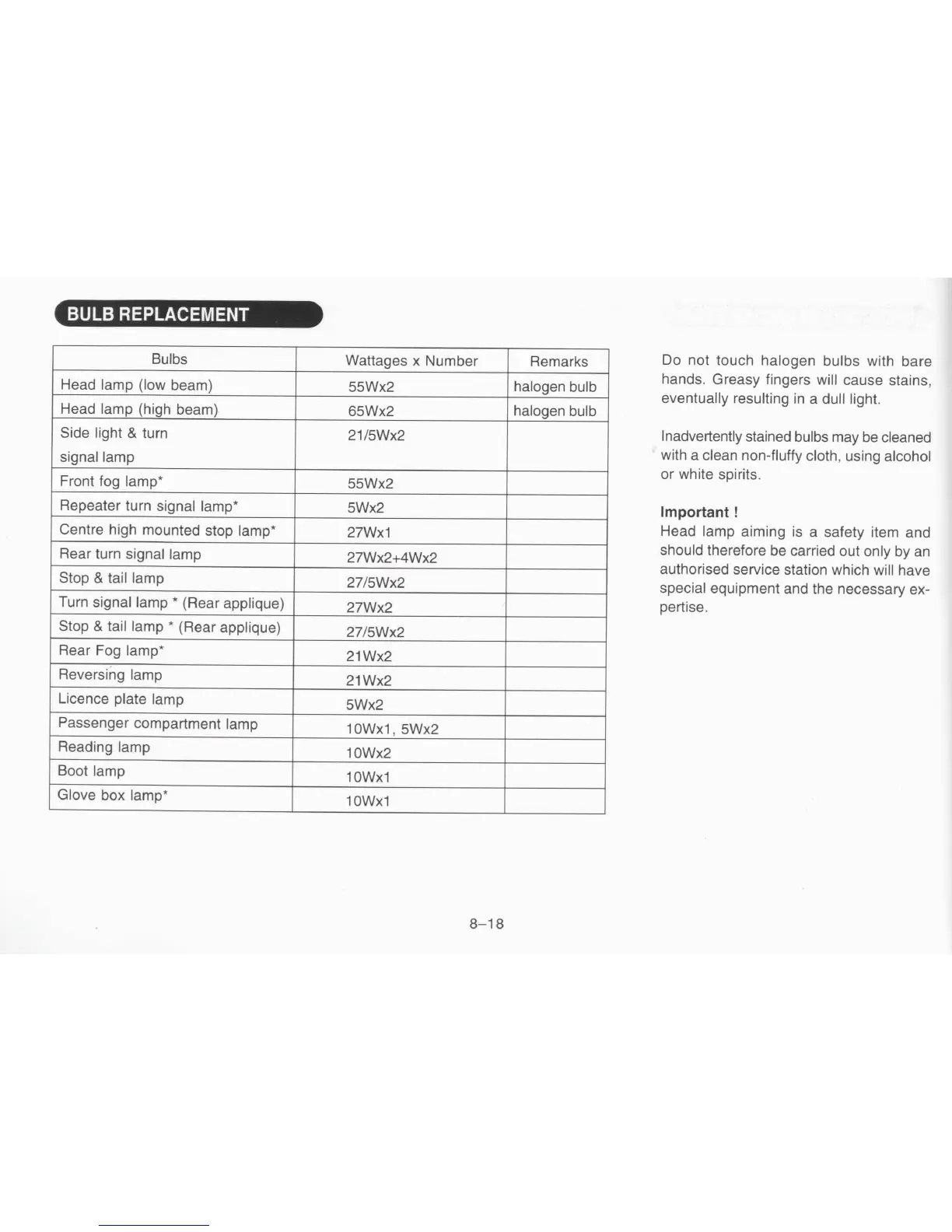

BULB REPLACEMENT
Bulbs
Wattages x Number
Remarks
Head lamp (low beam)
55Wx2
halogen bulb
Head lamp (high beam)
65Wx2
halogen bulb
Side light & turn
21/5Wx2
signal lamp
Front fog lamp'
55Wx2
Repeater turn signal lamp'
5Wx2
Centre high mounted stop lamp'
27Wx1
Rear turn signal lamp
27Wx2+4Wx2
Stop & tail lamp
27/5Wx2
Turn signal lamp • (Rear applique)
27Wx2
Stop & tail lamp' (Rear applique)
27/5Wx2
Rear Fog lamp'
21Wx2
Reversing lamp
21Wx2
Licence plate lamp
5Wx2
Passenger compartment lamp
10Wx1,5Wx2
Reading lamp
10Wx2
Boot lamp
10Wx1
Glove box lamp'
10Wx1
8-18
Do not touch halogen bulbs with bare
hands. Greasy fingers will cause stains,
eventually resulting in a dull light.
Inadvertently stained bulbs may be cleaned
with a clean non-fluffy cloth, using alcohol
or white spirits.
Important!
Head lamp aiming is a safety item and
should therefore be carried out only by an
authorised seNice station which will have
special equipment and the necessary ex-
pertise.
