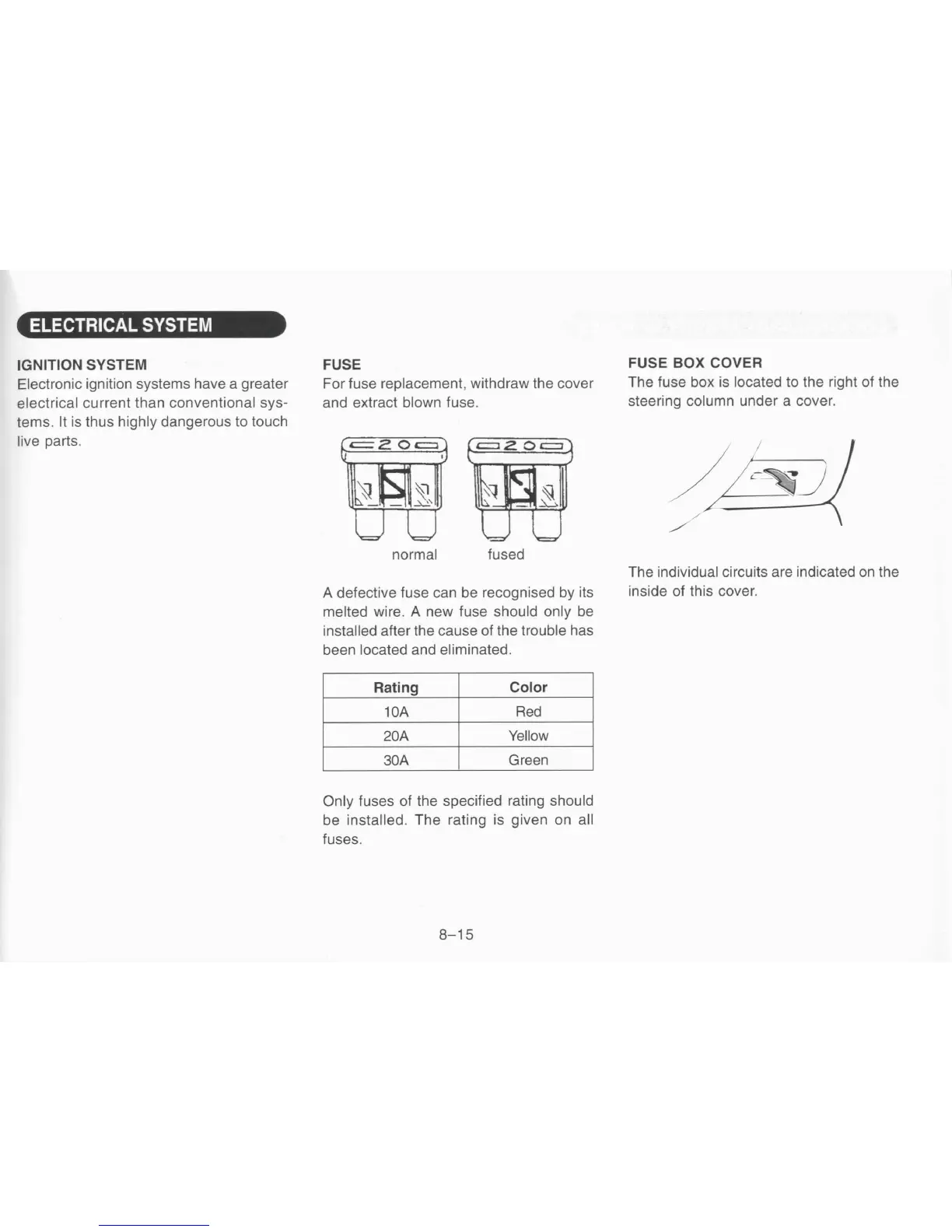

ELECTRICAL SYSTEM
FUSE BOX COVER
The fuse box is located to the right of the
steering column under a cover.
/
/'
C=_lZOc. ]
L
ZOe]
FUSE
For fuse replacement, withdraw the cover
and extract blown fuse.
IGNITION SYSTEM
Electronic ignition systems have a greater
electrical current than conventional sys-
tems.
It
is thus highly dangerous to touch
live parts.
normal
fused
A defective fuse can be recognised by its
melted wire. A new fuse should only be
installed after the cause of the trouble has
been located and eliminated.
The individual circuits are indicated on the
inside of this cover.
Rating Color
10A
Red
20A
Yellow
30A Green
Only fuses of the specified rating should
be installed. The rating is given on all
fuses.
8-15
