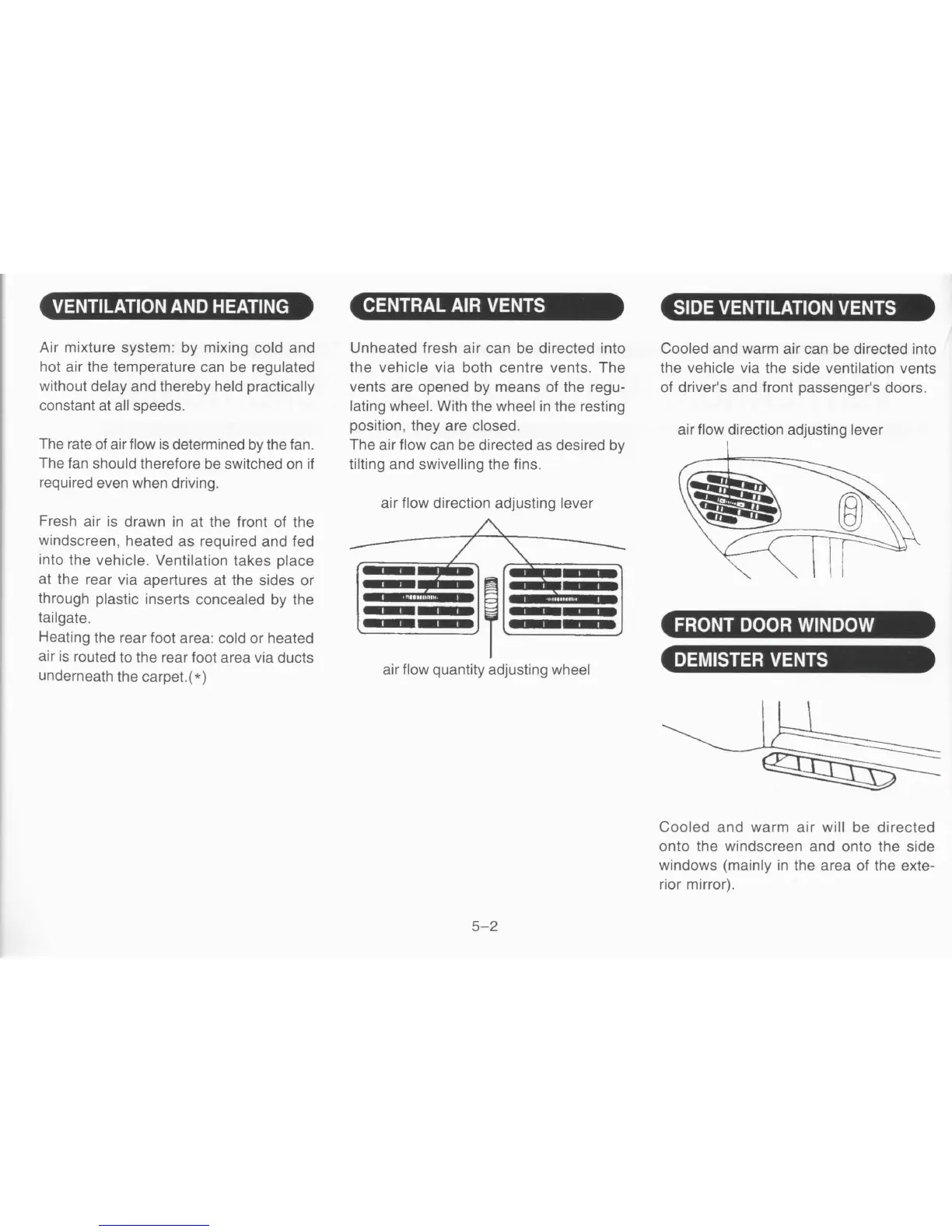

VENTILATION AND HEATING
Air mixture system: by mixing cold and
hot air the temperature can be regulated
without delay and thereby held practically
constant at all speeds.
The rate of air flow is determined by the fan.
The fan should therefore be switched on if
required even when driving.
Fresh air is drawn in at the front of the
windscreen, heated as required and fed
into the vehicle. Ventilation takes place
at the rear via apertures at the sides or
through plastic inserts concealed by the
tailgate.
Heating the rear foot area: cold or heated
air is routed to the rear foot area via ducts
underneath the carpet.(*)
CENTRAL AIR VENTS
Unheated fresh air can be directed into
the vehicle via both centre vents. The
vents are opened by means of the regu-
lating wheel. With the wheel in the resting
position, they are closed.
The air flow can be directed as desired by
tilting and swivelling the fins.
air flow direction adjusting lever
air flow quantity adjusting wheel
5-2
SIDE VENTILATION VENTS
Cooled and warm air can be directed into
the vehicle via the side ventilation vents
of driver's and front passenger's doors.
air flow direction adjusting lever
FRONT DOOR WINDOW
DEMISTER VENTS
Cooled and warm air will be directed
onto the windscreen and onto the side
windows (mainly in the area of the exte-
rior mirror).
