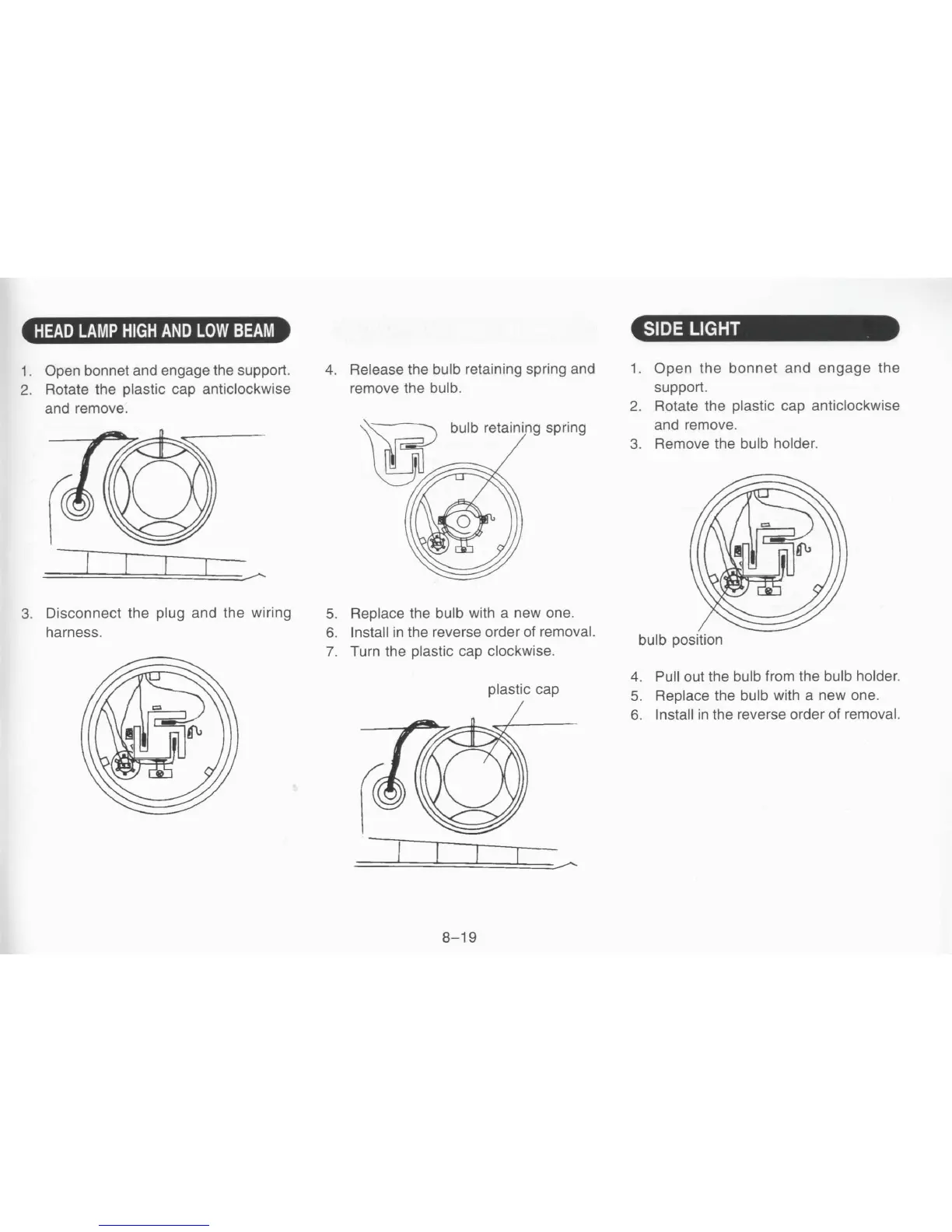

HEAD LAMP HIGH AND LOW BEAM
SIDE LIGHT
4. Pull out the bulb from the bulb holder.
5. Replace the bulb with a new one.
6. Install in the reverse order of removal.
bulb position
1. Open the bonnet and engage the
support.
2. Rotate the plastic cap anticlockwise
and remove.
3. Remove the bulb holder.
bulb retaining spring
plastic cap
5. Replace the bulb with a new one.
6. Install in the reverse order of removal.
7. Turn the plastic cap clockwise.
4. Release the bulb retaining spring and
remove the bulb.
3. Disconnect the plug and the wiring
harness.
1. Open bonnet and engage the support.
2. Rotate the plastic cap anticlockwise
and remove.
8-19
