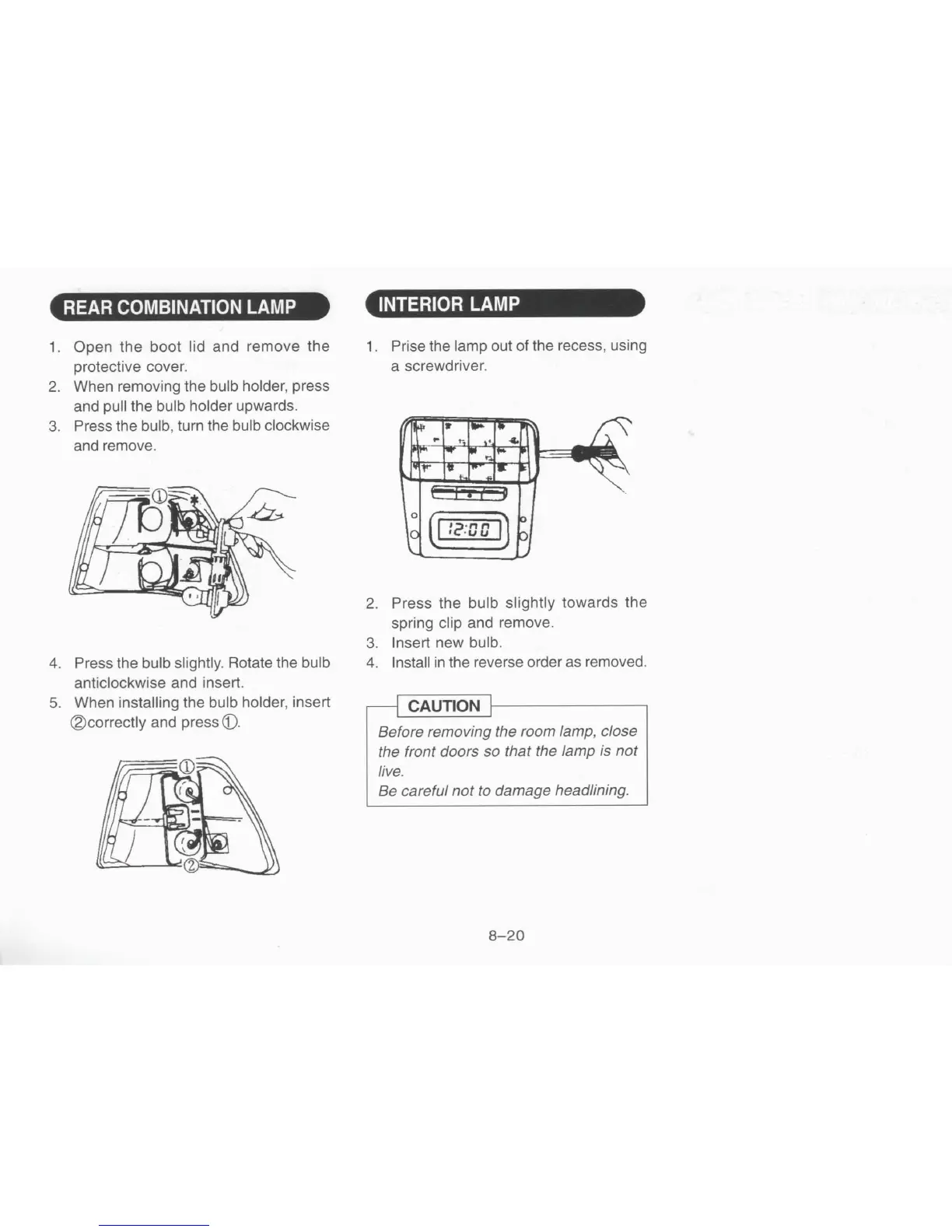

REAR COMBINATION LAMP
INTERIOR LAMP
1. Prise the lamp out of the recess, using
a screwdriver.
2. Press the bulb slightly towards the
spring clip and remove.
3. Insert new bulb.
4. Install in the reverse order as removed.
I
:2:00
I
o
I I
CAUTION
I I
Before removing the room lamp, close
the front doors so that the lamp is not
live.
Be careful not to damage headlining.
4. Press the bulb slightly. Rotate the bulb
anticlockwise and insert.
5. When installing the bulb holder, insert
~correctly and press G)
1. Open the boot lid and remove the
protective cover.
2. When removing the bulb holder, press
and pull the bulb holder upwards.
3. Press the bulb, turn the bulb clockwise
and remove.
8-20
