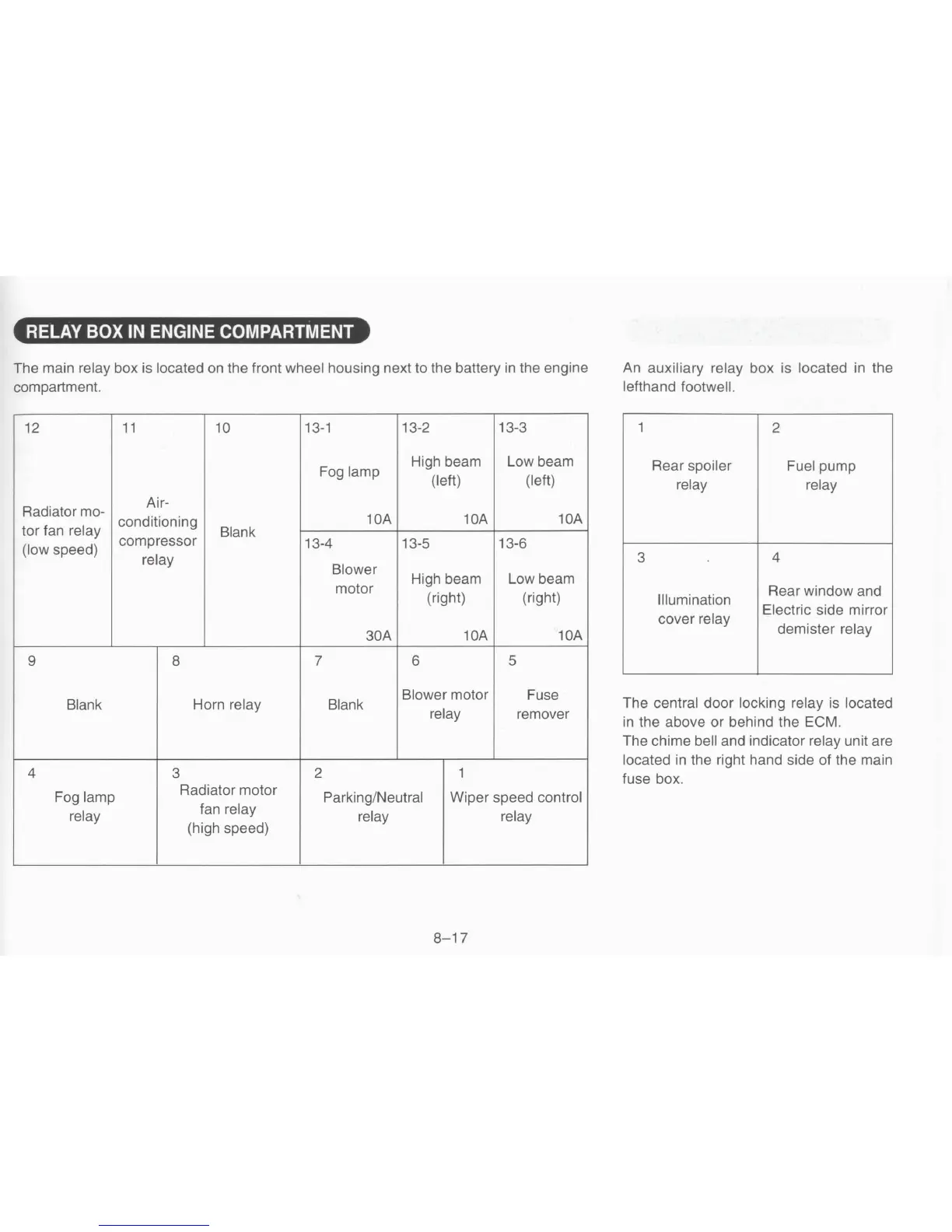

The main relay box is located on the front wheel housing next to the battery in the engine
compartment.
12
11 10 13-1
13-2 13-3
Fog lamp
High beam
Low beam
(left) (left)
Radiator mo-
Air-
conditioning
10A 10A 10A
tor fan relay
Blank
(low speed)
compressor
13-4
13-5 13-6
relay
Blower
High beam Low beam
motor
(right) (right)
30A 10A
10A
9 8
7
6
5
Blank
Horn relay
Blank
Blower motor Fuse
relay remover
4
3
2 1
Fog lamp
Radiator motor
Parking/Neutral Wiper speed control
fan relay
relay
relay relay
(high speed)
8-17
An auxiliary relay box is located in the
lefthand footwell.
1
2
Rear spoiler
Fuel pump
relay
relay
3
•
4
Illumination
Rear window and
Electric side mirror
cover relay
demister relay
The central door locking relay is located
in the above or behind the ECM.
The chime bell and indicator relay unit are
located in the right hand side of the main
fuse box.
