SEALING, CAULKING AND DEADNER 9–15
1 DEADNER - FLOOR PANEL FRT, LH 4.0 778x428(30.63x16.85)
2 DEADNER - FLOOR PANEL FRT, RH 4.0 778x428
3 DEADNER - FLOOR PANEL FRT, TUNNEL 4.0 740x360
4 DEADNER - FLOOR PANEL RR, LH 2.2 620x520
5 DEADNER - FLOOR PANEL RR, RH 2.2 620x520
6 DEADNER - FLOOR PANEL RR, TUNNEL 4.0 625x340
7 DEADNER - A PILLAR LH 1.5 140x80
8 DEADNER - A PILLAR RH 1.5 140x80
9 DEADNER - A PILLAR UPPER LH 1.5 70x50
10 DEADNER - A PILLAR UPPER RH 1.5 70x50
11 DEADNER - FRT WHEEL HOUSING LH 3.2 264x165
12 DEADNER - FRT WHEEL HOUSING RH 3.2 264x165
13 DEADNER - A PILLAR LH 1.5 140x80
14 DEADNER - A PILLAR RH 1.5 140x80
15 DEADNER - TRUNK SIDE, LH 3.2 300x200 RECTANGULAR
NO DESCRIPTION REMARKS
DEADNER CHART

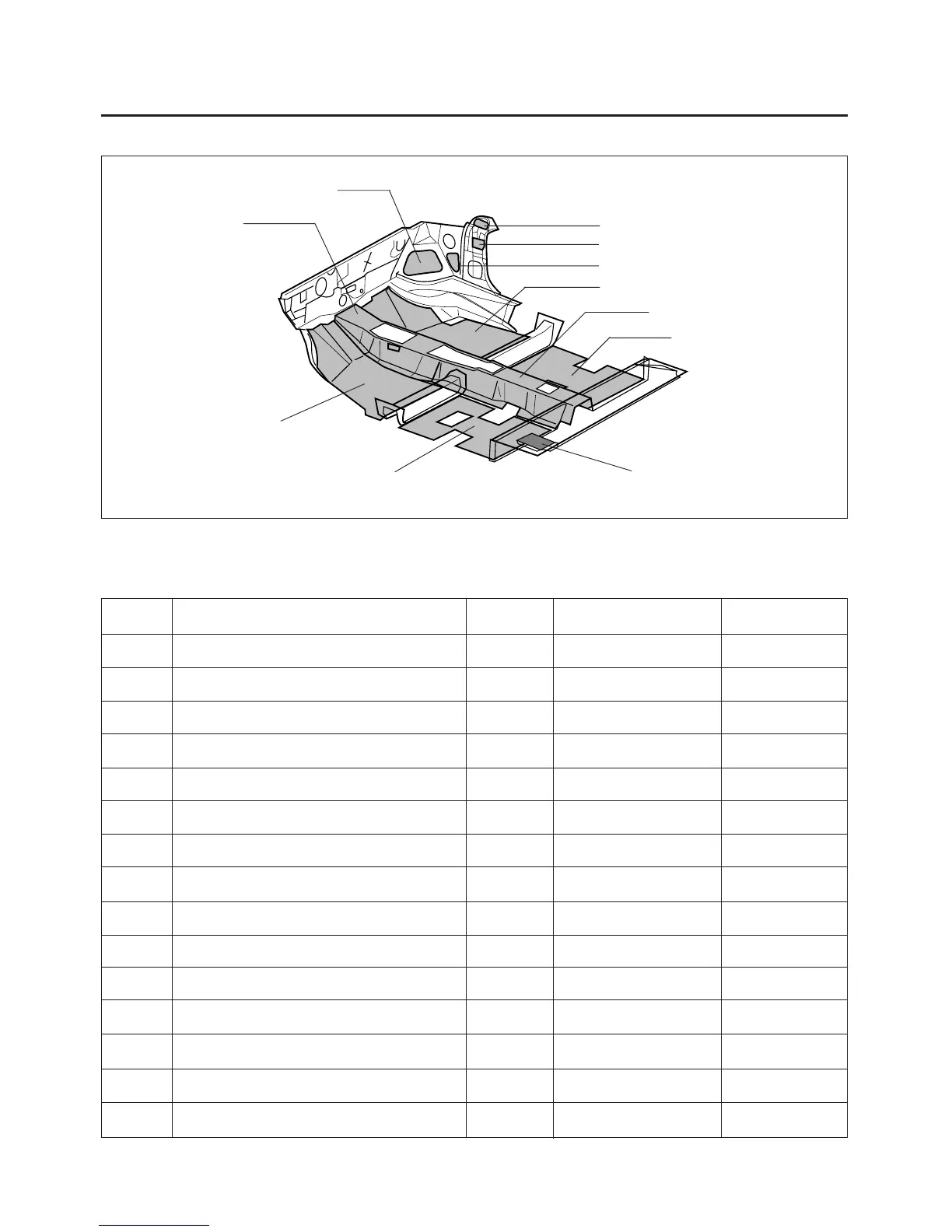

Fig. 15 Deadner Chart
11,12
1
4
15
5
6
13,14
7,8
9,10
2
3
Unit : mm
THICKNESS MAX AREA
