Local Configurations 164
Define the period by editing. Take Sunday as an example.
Click . 1)

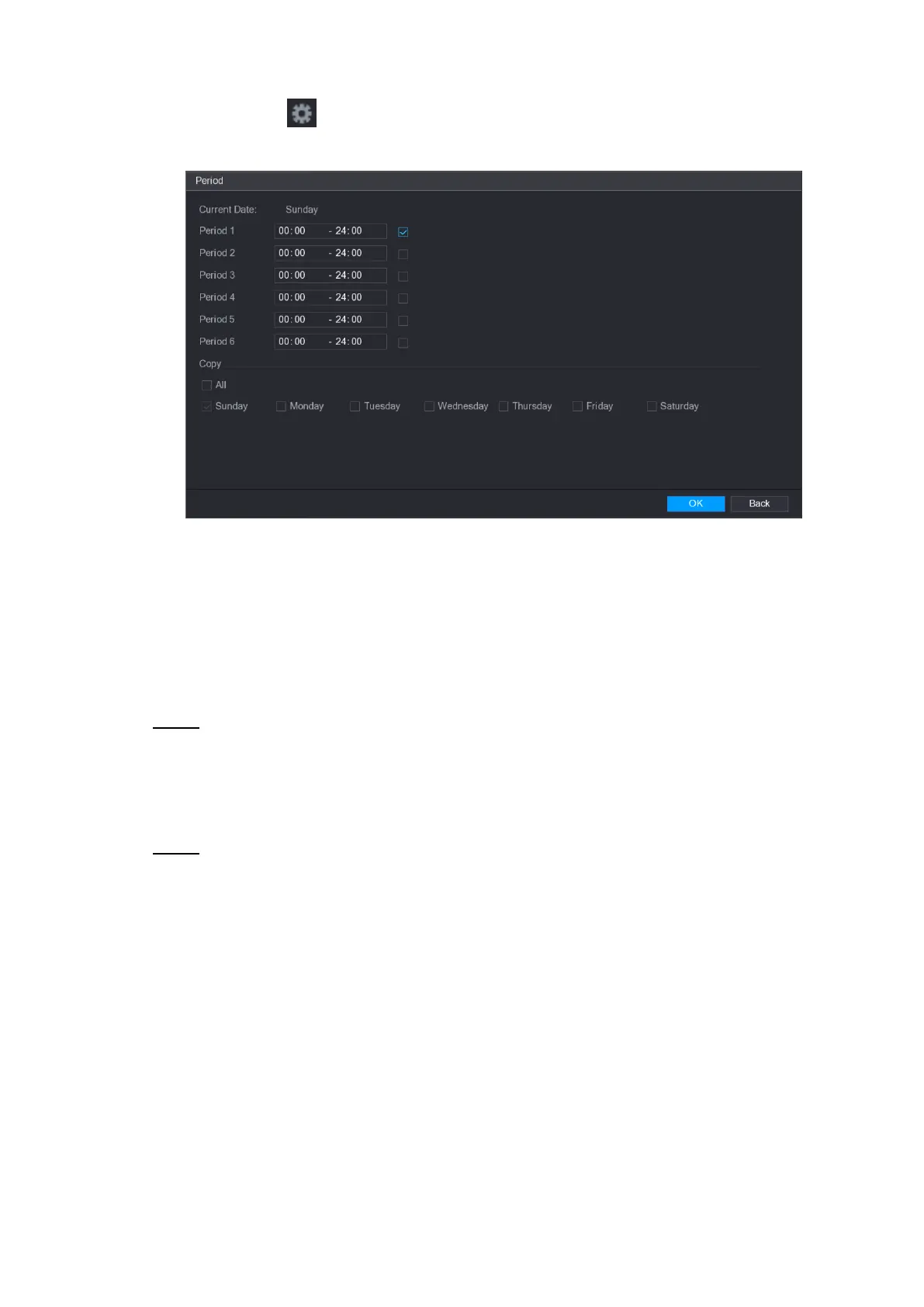

The Period interface is displayed. See Figure 5-132.
Figure 5-132
Enter the time frame for the period, and then select the check box to enable the 2)
settings.
There are six periods for you to set for each day.
Under Copy, select All to apply the settings to all the days of a week, or select
specific day(s) that you want to apply the settings to.
Click OK to save the settings. 3)
On the Motion Detect interface, click Apply to complete the settings. Step 3
5.10.4.2 Configuring Video Loss Settings
When the video loss occurs, the system activates the alarm.
Select Main Menu > ALARM > VIDIEO DETECT > Video Loss. Step 1
The Video Loss interface is displayed. See Figure 5-133.
