Local Configurations 250
In the Destination IP box, enter the IP address. Step 2
Click Test. Step 3
After testing is completed, the test result is displayed. You can check the evaluation for

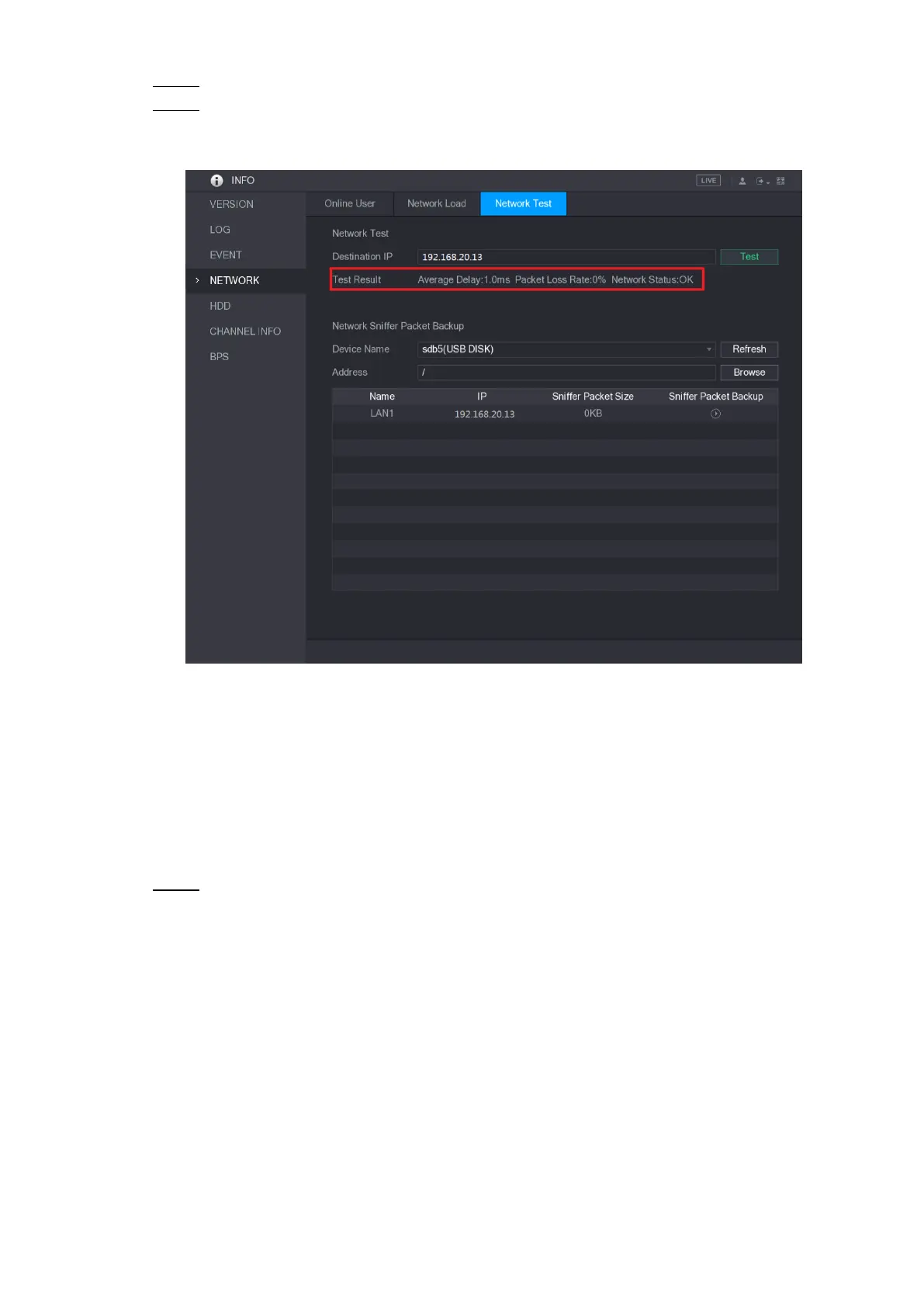

average delay, packet loss, and network status. See Figure 5-216.
Figure 5-216
5.15.2.2 Capturing Packet and Backing up
Packet capture means the operations such as capturing, resending, and editing data that are
sent and received during network transmission. When there is network abnormality, you can
perform packet capturing and back up into the USB storage device. This date can be provided
to the technical support for analyzing the network condition.
Select Main Menu > INFO > NETWORK > Network Test. Step 1
The Network Test interface is displayed. See Figure 5-217.
