144
video and multiple-channel data to
the HDMI port of the display
device.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
7
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2.2.3 HCVR7104C-V2 Series

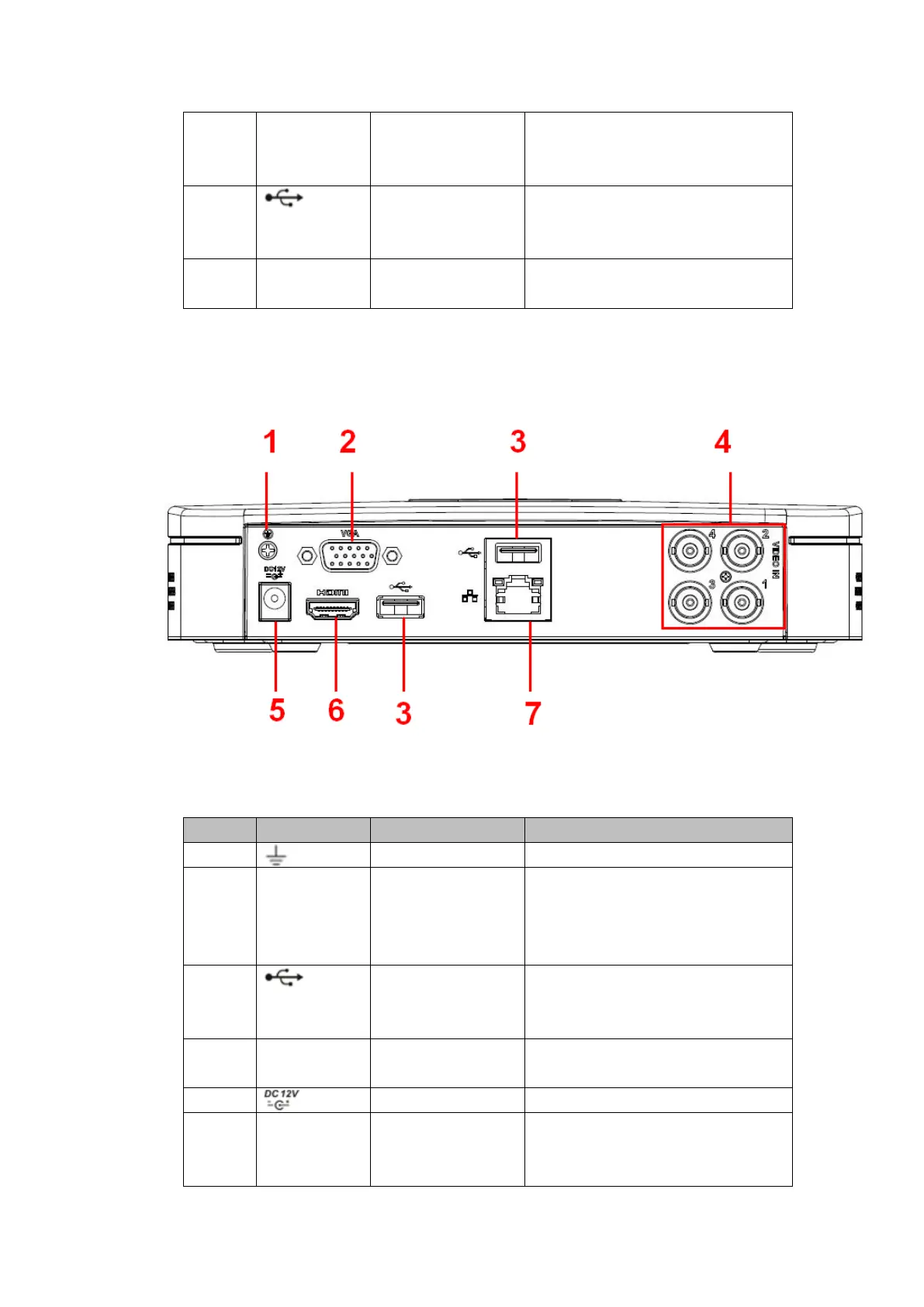

The HCVR7104C-V2 rear panel is shown as below. See Figure 2-14.
Figure 2-14
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
GND
Ground end
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
4
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
5
Power input port
Input 12V DC.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
