Dahua HCVR5104C Series User Manual

168
mouse, burning DVD-ROM and
etc.
7
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
8
Network port
100M Ethernet port
9
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
10
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
11
GND
Ground end
2.2.19 HCVR5104/5108/5116HE-S2 Series

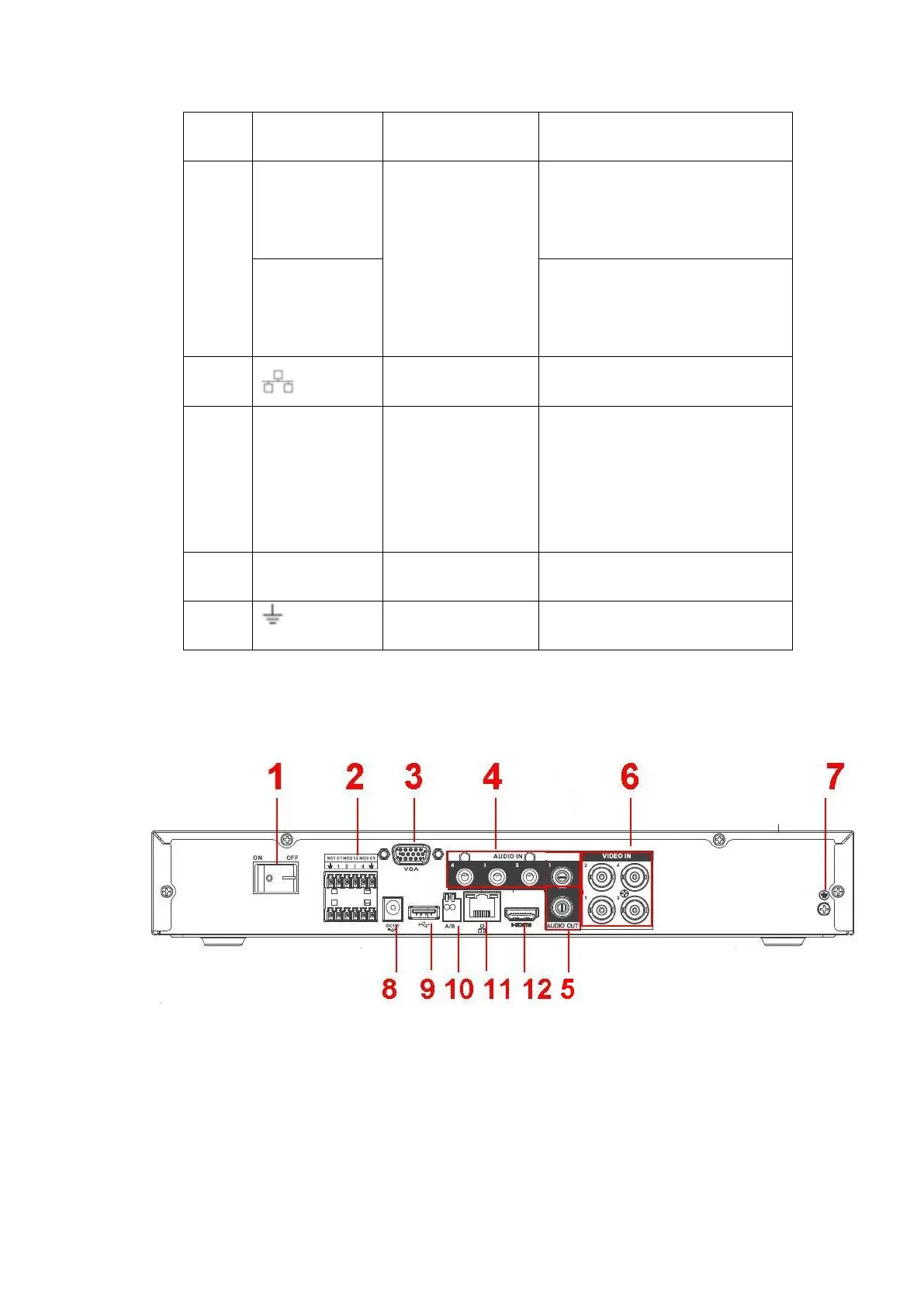

The HCVR5104HE-S2 series rear panel is shown as below. See Figure 2-48.
Figure 2-48
The HCVR5108HE-S2 series rear panel is shown as below. See Figure 2-49.
