Dahua HCVR5104C Series User Manual

146
3
Network port
100M Ethernet port
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
5
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
6
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
7
Power input port
Input 12V DC.
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
9
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.5 HCVR5104/5108C-S2 Series

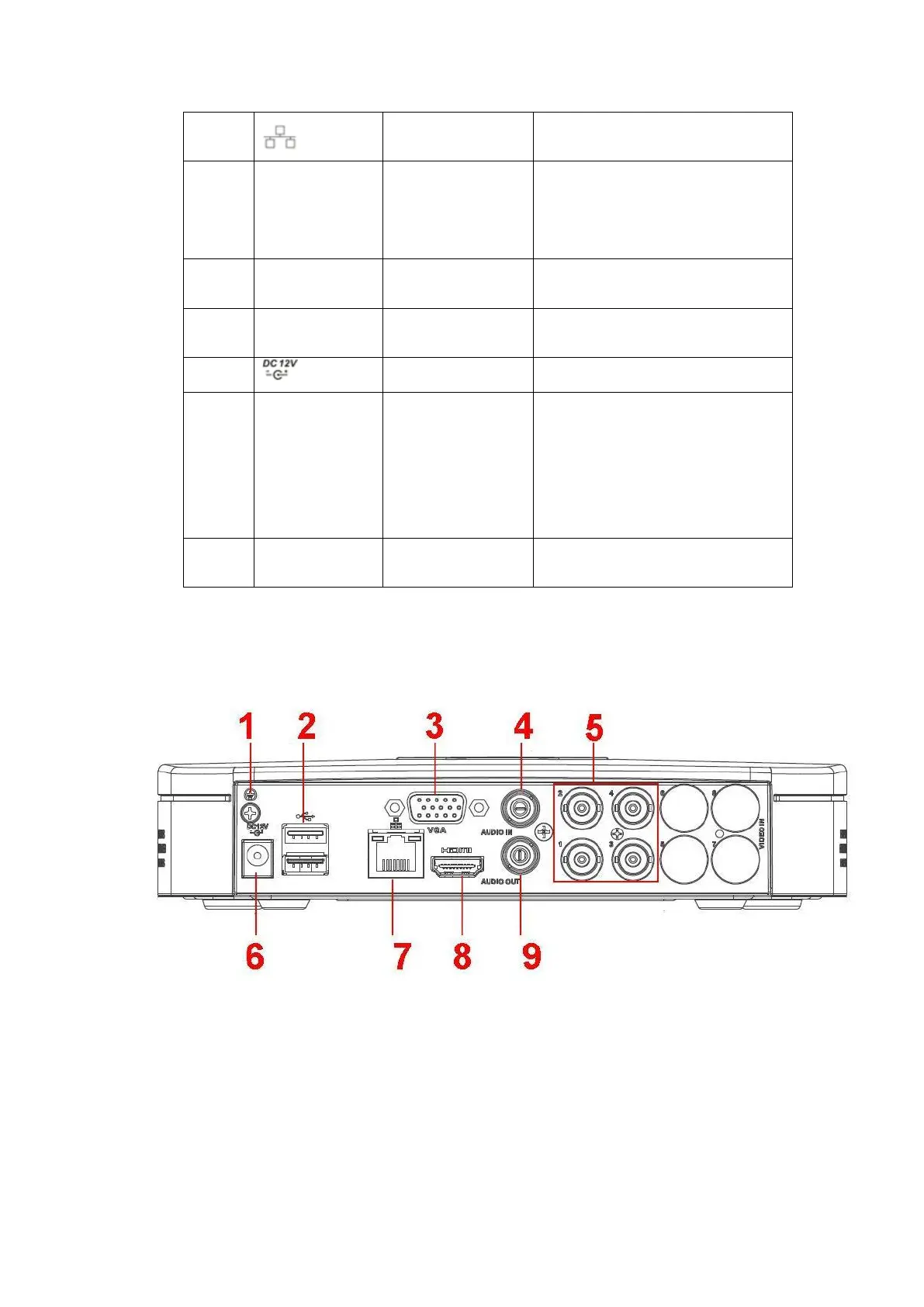

The HCVR5104C-S2 series rear panel is shown as below. See Figure 2-17.
Figure 2-17
The HCVR5108C-S2 series rear panel is shown as below. See Figure 2-18.
