Dahua HCVR5104C Series User Manual

193
SN
Icon
Name
Note
12
HDMI
High Definition Media
Interface
High definition audio and
video signal output port. It
transmits uncompressed high
definition video and
multiple-channel data to the
HDMI port of the display
device.
13
eSATA
eSATA port
External SATA port. It can
connect to the device of the
SATA port. Please jump the
HDD when there is peripheral
connected HDD.
14
USB2.0 port
USB2.0 port. Connect to
mouse, USB storage device,
USB burner and etc.
15
Power socket
Power socket
16
GND
GND
2.2.32 HCVR42XXL-S2 Series
The rear panel is shown as in Figure 2-78
The following figure is based on the HCVR4232L-V2 series product.

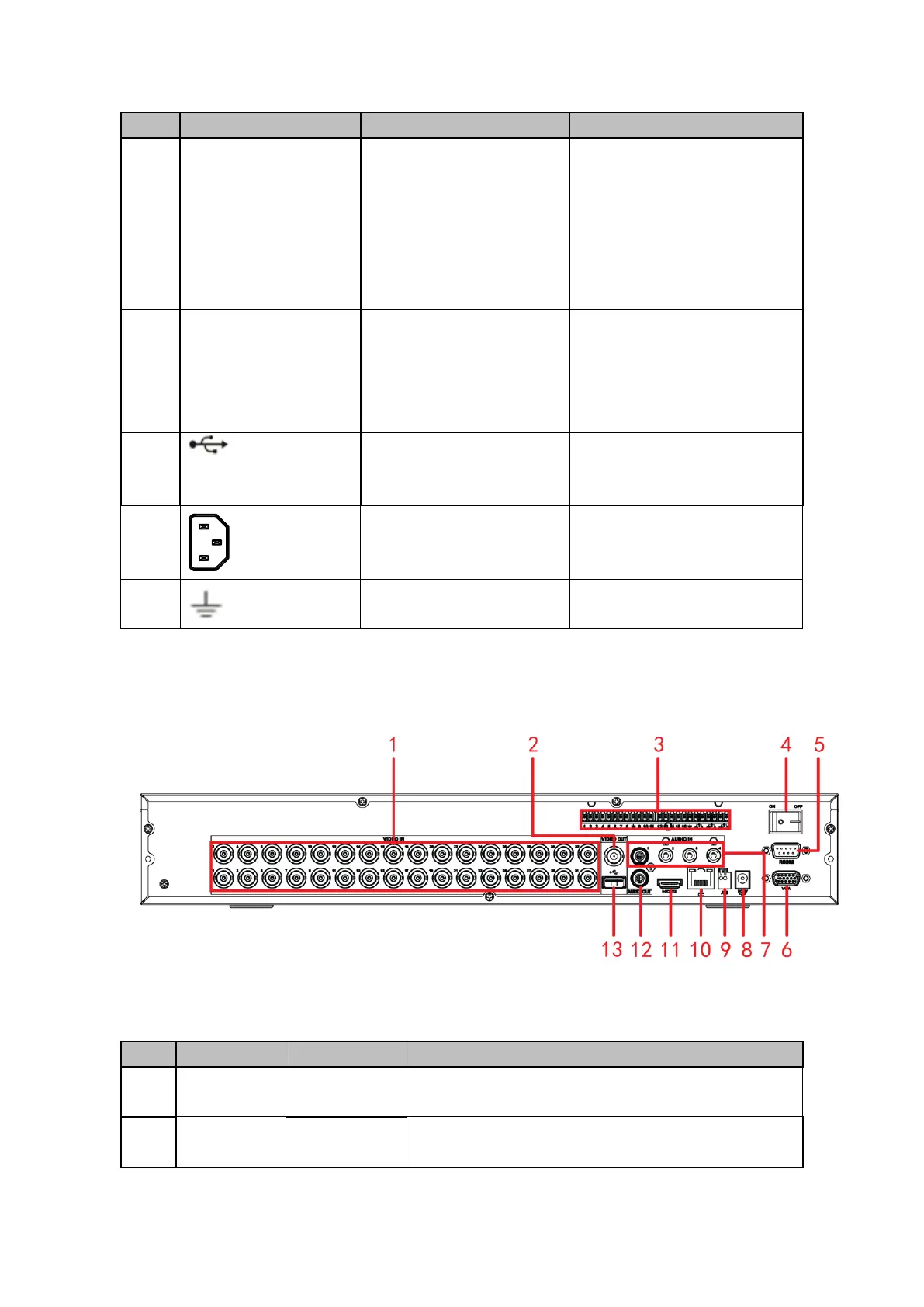

Figure 2-78
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
VIDEO OUT
Video output
port
Connect to output devices such as TV.

Dahua HCVR5104C Series Specifications

General

Brand	Dahua
Model	HCVR5104C Series
Category	DVR
Language	English
