Dahua HCVR5104C Series User Manual

181
SN
Icon
Name
Note
6
VIDEO IN
Video input
port
Connect to analog camera to input video signal.
7
GND
Alarm input ground port.
8
AUDIO
OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
9
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
10
USB2.0 port
USB2.0 port. Connect to mouse, USB storage device,
USB burner and etc.
11
VGA
VGA video
output port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
12
Network port
1000M Ethernet port
2.2.26 HCVR42XXA-S2/ HCVR4216AN-S2 Series

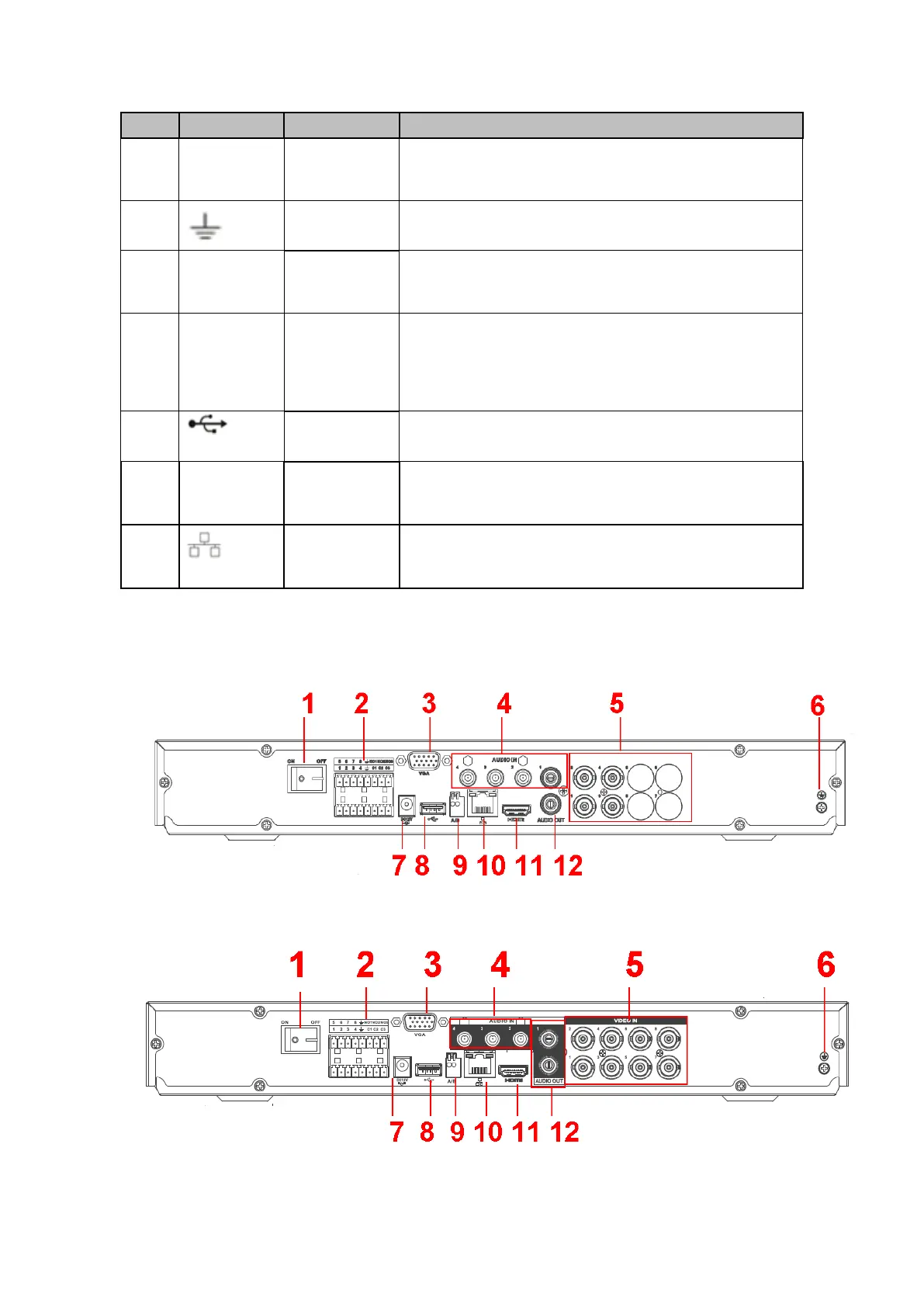

This HCVR4204A-S2 rear panel is shown as below. See Figure 2-63.
Figure 2-63
This HCVR4208A-S2 rear panel is shown as below. See Figure 2-64.
Figure 2-64
