Dahua HCVR5104C Series User Manual

178
4
Network port
100M Ethernet port
5
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
6
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
7
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
8
GND
Ground end
9
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
10
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.24 HCVR21XXHS-S3/HCVR41XXHS-S3/51XXHS-S3/7104HS-S3
/XVR21XXHS/XVR41XXHS/51XXHS/7104HS Series

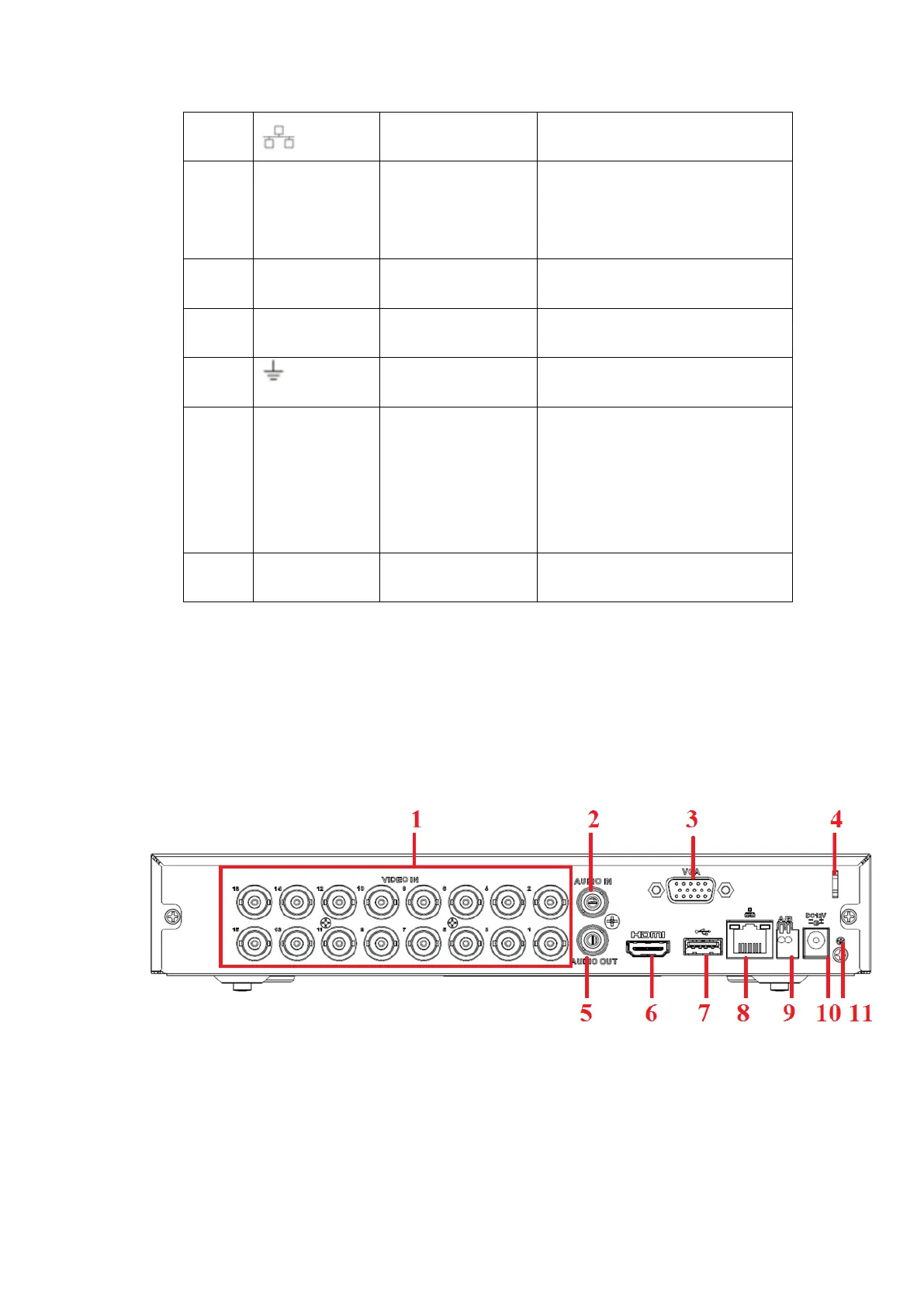

The
HCVR2116HS-S3/HCVR41XXHS-S3/51XXHS-S3/XVR2116HS/XVR41XXHS/XVR51XX
HS series rear panel is shown as below. See Figure 2-60.
The following figure is based on the HCVR2116HS-S3/HCVR4116HS-S3/5116HS-S3
/XVR2116HS/XVR4116HS/XVR5116HS series product.
Figure 2-60
The HCVR7104HS-S3/XVR7104HS series rear panel is shown as below. See Figure
2-61.
