Dahua HCVR5104C Series User Manual

190
SN
Icon
Name
Note
9
USB2.0 port
Connect to USB storage device, mouse, burning
DVD-ROM and etc.
10
Network port
100M Ethernet port
11
A
RS485
（ RS-485 ）
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
12
Power input
port
Input 12V DC.
13
Power cable
fastener
Use clamp to secure the power cable on the device in
case there is any loss.
2.2.31 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series

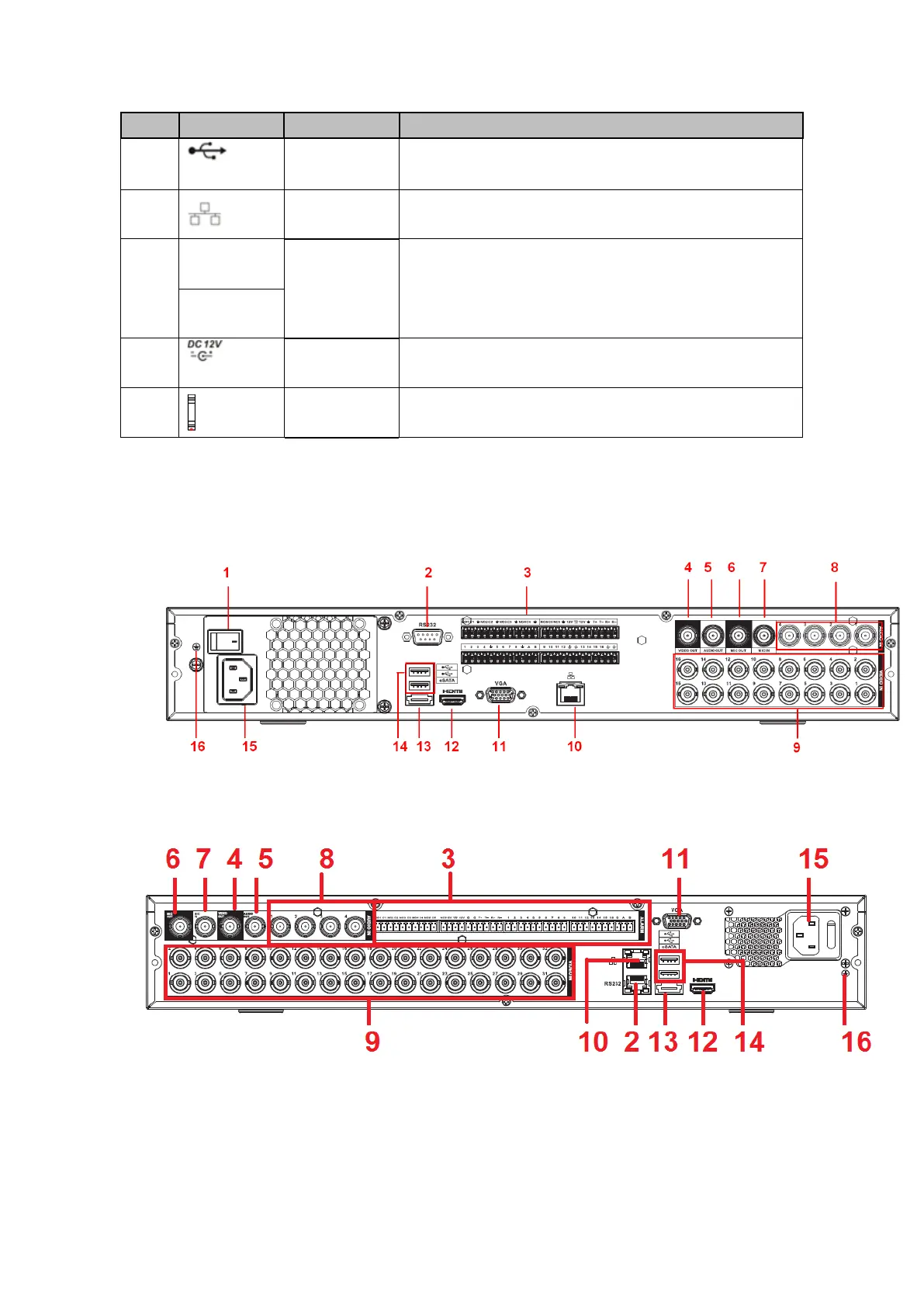

This series products’ rear panel is shown as below. See Figure 2-76.
The following figure is based on the HCVR5416L-V2 series product.
Figure 2-76
The HCVR4432L-S2 rear panel is shown as below. See Figure 2-77.
Figure 2-77
Please refer to the following sheet for detailed information.
