Dahua HCVR5104C Series User Manual

184
SN
Icon
Name
Note
2
VIDEO OUT
Video output
port
Connect to output devices such as TV.
3
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
4
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
5
Power switch
Power on/off button.
6
GND
Alarm input ground port.
7
Power input
port
Input 12V/5A DC.
8
A
RS485
（ RS-485 ）
communicatio
n port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
9
Network port
1000M Ethernet port
10
HDMI
High Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
11
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
12
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
2.2.28 HCVR52XXA-S2/ HCVR5216AN-S2 Series

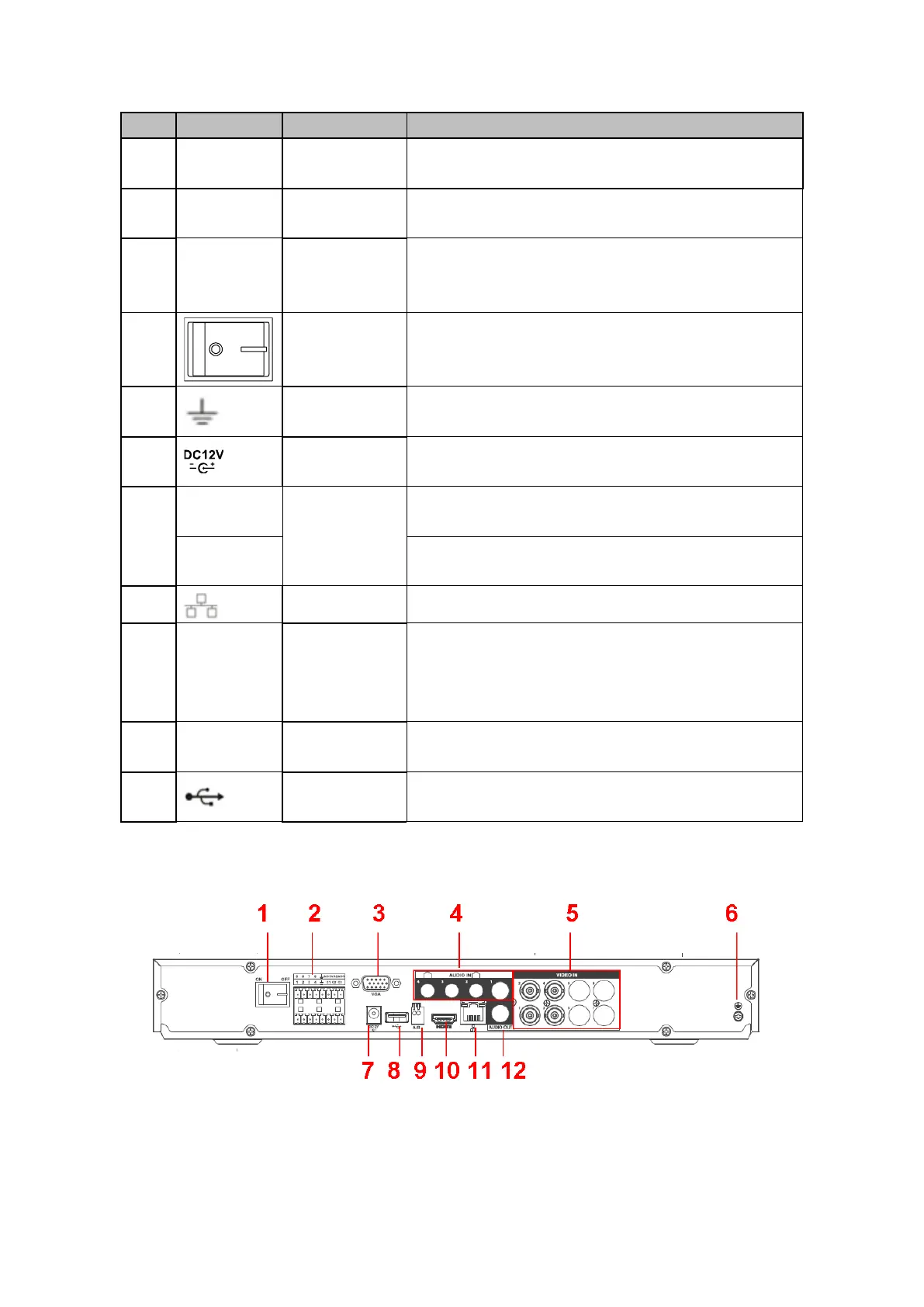

This HCVR5204A-S2 products’ rear panel is shown as below. See Figure 2-68.
Figure 2-68
This HCVR5208A-S2 products’ rear panel is shown as below. See Figure 2-69.
