Dahua HCVR5104C Series User Manual

175

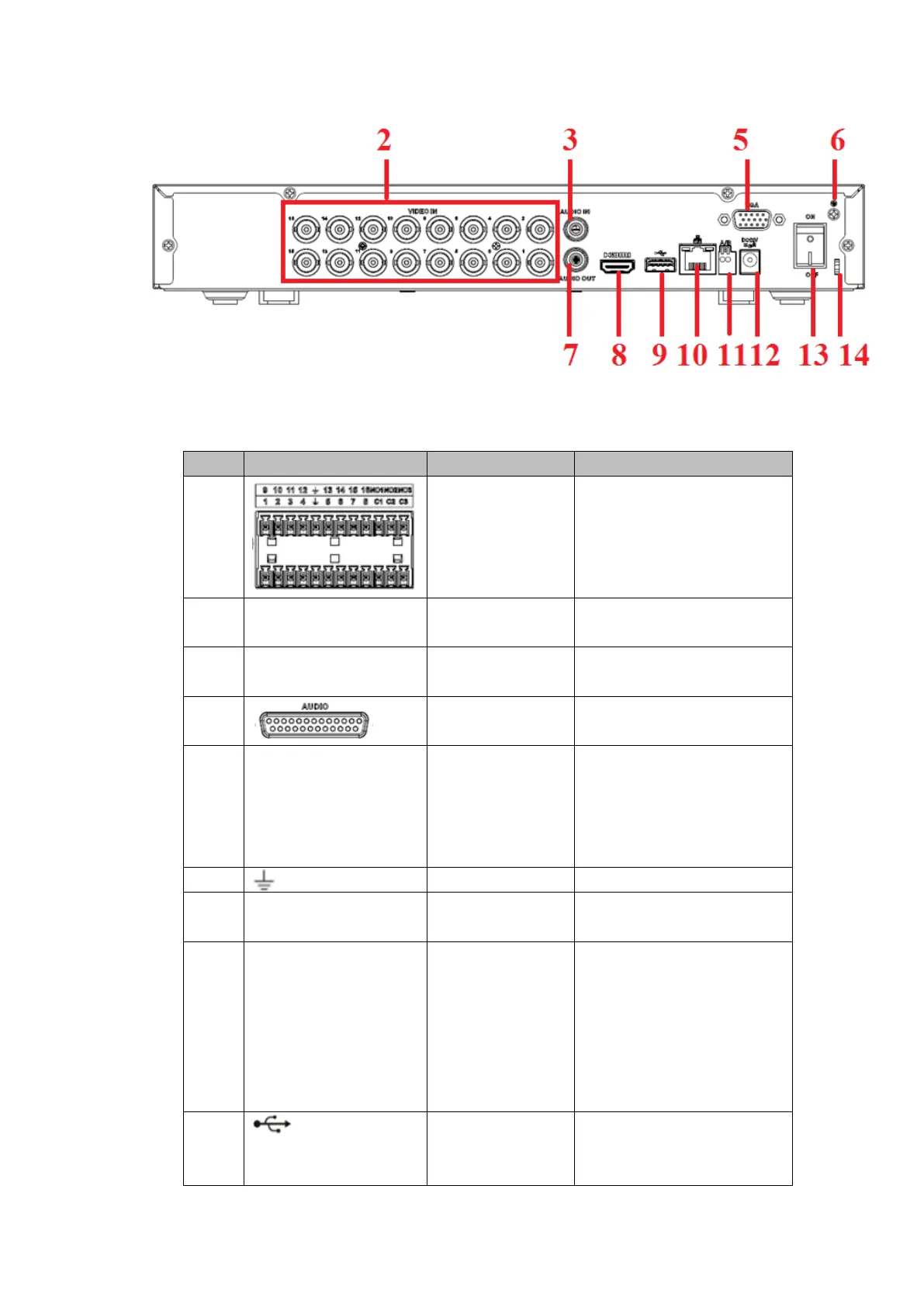

Figure 2-56
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Alarm input/Alarm
output
Input/output alarm signal.
2
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
3
AUDIO IN
Audio input port
Connect to audio input
device such as speaker.
4
DB25 port
The 5th to the 16th-channel
audio input port.
5
VGA
VGA video output
port
VGA video output port.
Output analog video signal.
Can connect to the monitor
to view ananlog video
output.
6
GND
Ground end
7
AUDIO OUT
Audio output port
Connect to video output
device such as sound box.
8
HDMI
High definition
media interface
High definition audio and
video signal output port. It
transmits uncompressed
high definition video and
multiple-channel data to the
HDMI port of the display
device.
9
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
