HDCVI Series DVR User’s Manual
40

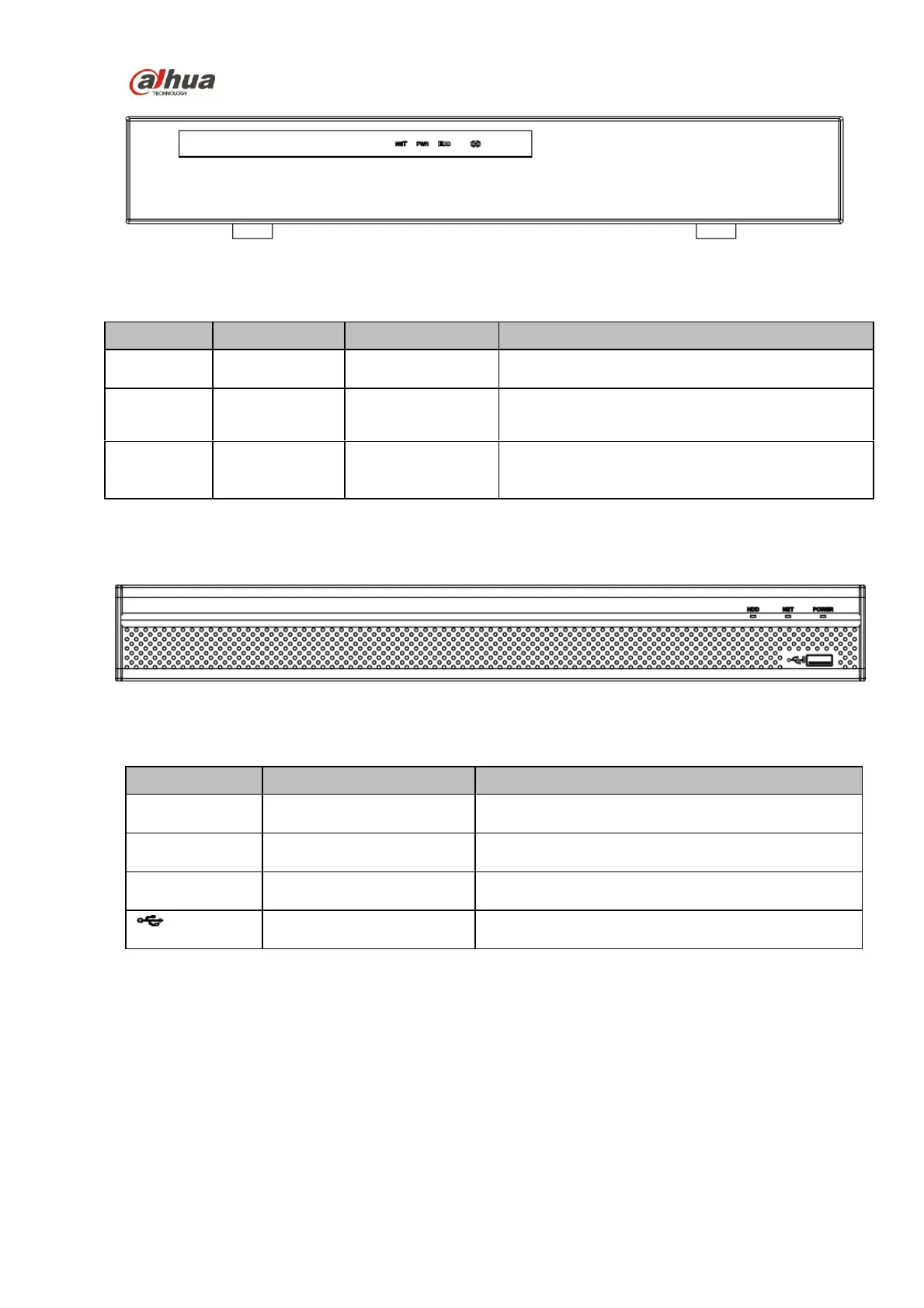

Figure 2-3
Please refer to the following sheet for front panel button information.
SN
Icon
Name
Function
1
NET
Network abnormal
indicator light
Network error occurs or there is no network
connection, the light becomes red to alert you.
2
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
3
HDD
HDD abnormal
indicator light
HDD error occurs or HDD capacity is below
specified threshold value, the light becomes red
to alert you.
2.1.4 HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/ HCVR710XH-S2/
HCVR710XHE-S2/ HCVR41XXHS-S2/ HCVR2108HS-S2 Series
The front panel is shown as below. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for front panel button information.
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.2 Rear Panel
2.2.1 HCVR5104C Series
The HCVR5104C rear panel is shown as below. See Figure 2-5.
