Dahua HDCVI series - HCVR51 XXH-V2;HCVR71 XXH-V2 Series

HDCVI Series DVR User’s Manual
72

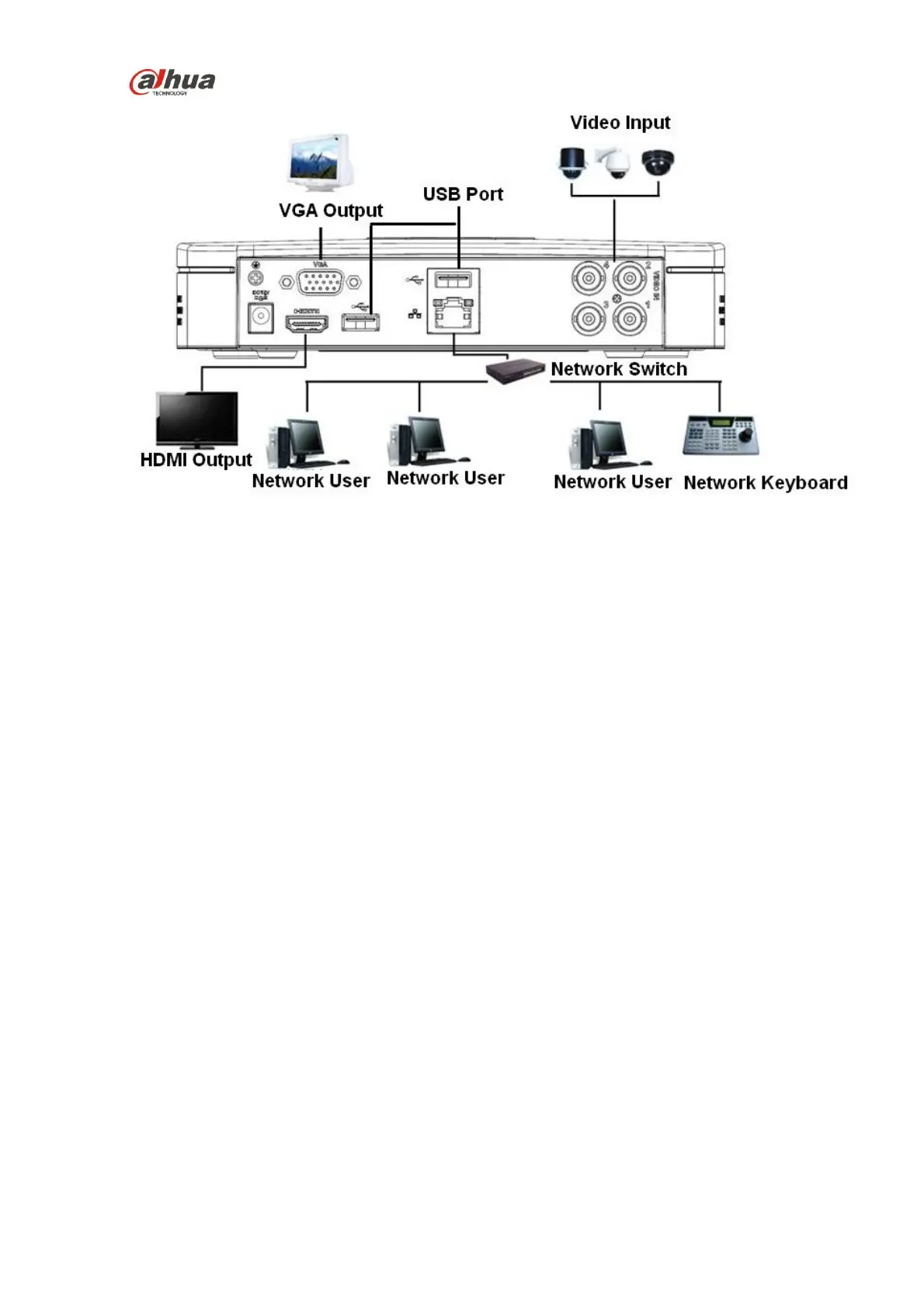

Figure 2-54
2.3.5 HCVR51XXH-V2/HCVR71XXH-V2 Series
Please refer to Figure 2-55 for connection sample.
The following figure is based on the HCVR7108H-V2 series product.
