Dahua HDCVI series - HCVR51 XXC-V2;HCVR71 XXC-V2 Series

HDCVI Series DVR User’s Manual
71
Figure 2-53
2.3.4 HCVR51XXC-V2/HCVR71XXC-V2 Series

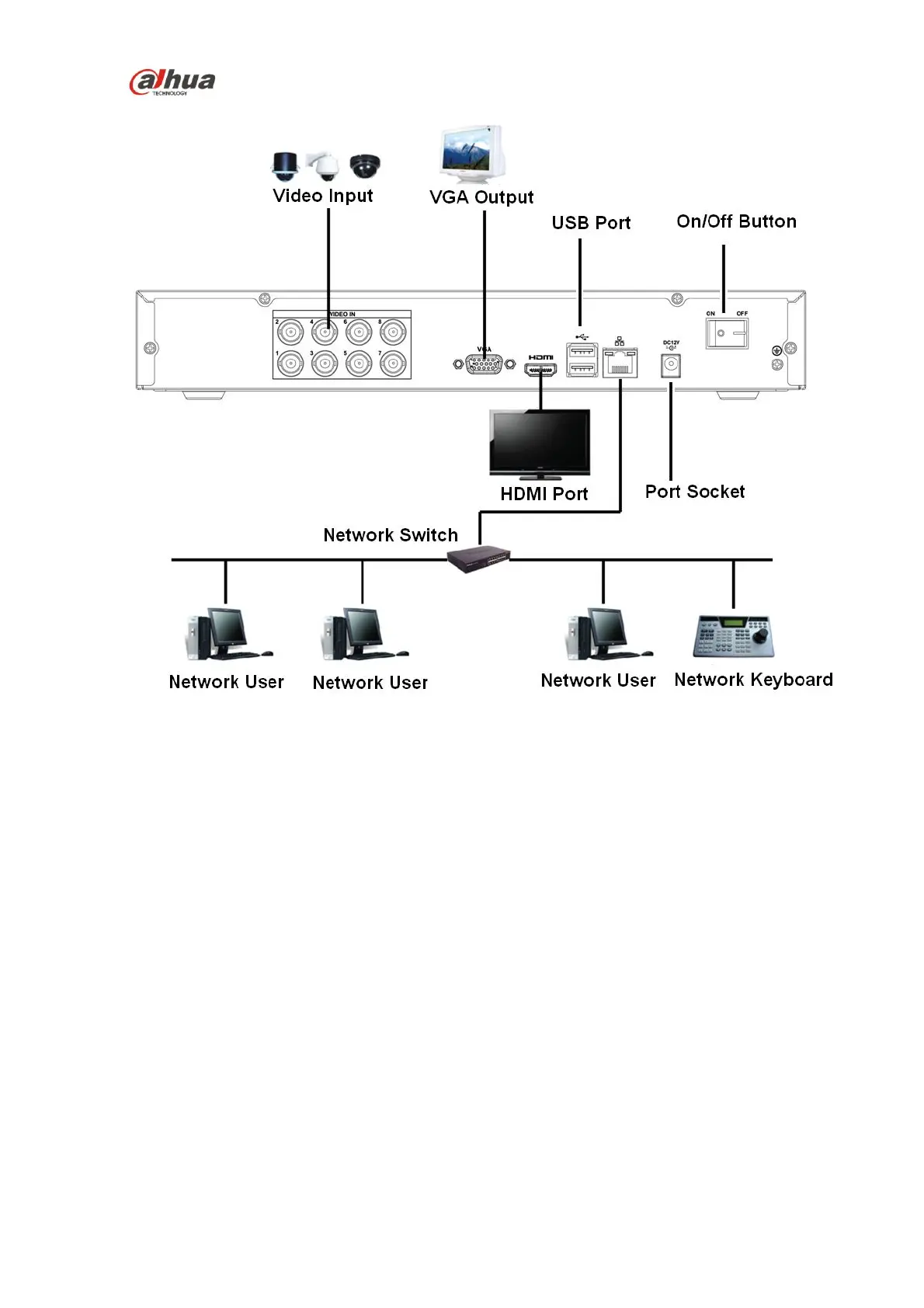

Please refer to Figure 2-54 for connection sample.
The following figure is based on the HCVR7104C-V2 series product.
