Dahua HDCVI series - HCVR41 XXHS-S2;HCVR2108 HS-S2 Series

HDCVI Series DVR User’s Manual
83
Figure 2-65
2.3.16 HCVR41XXHS-S2/HCVR2108HS-S2 Series

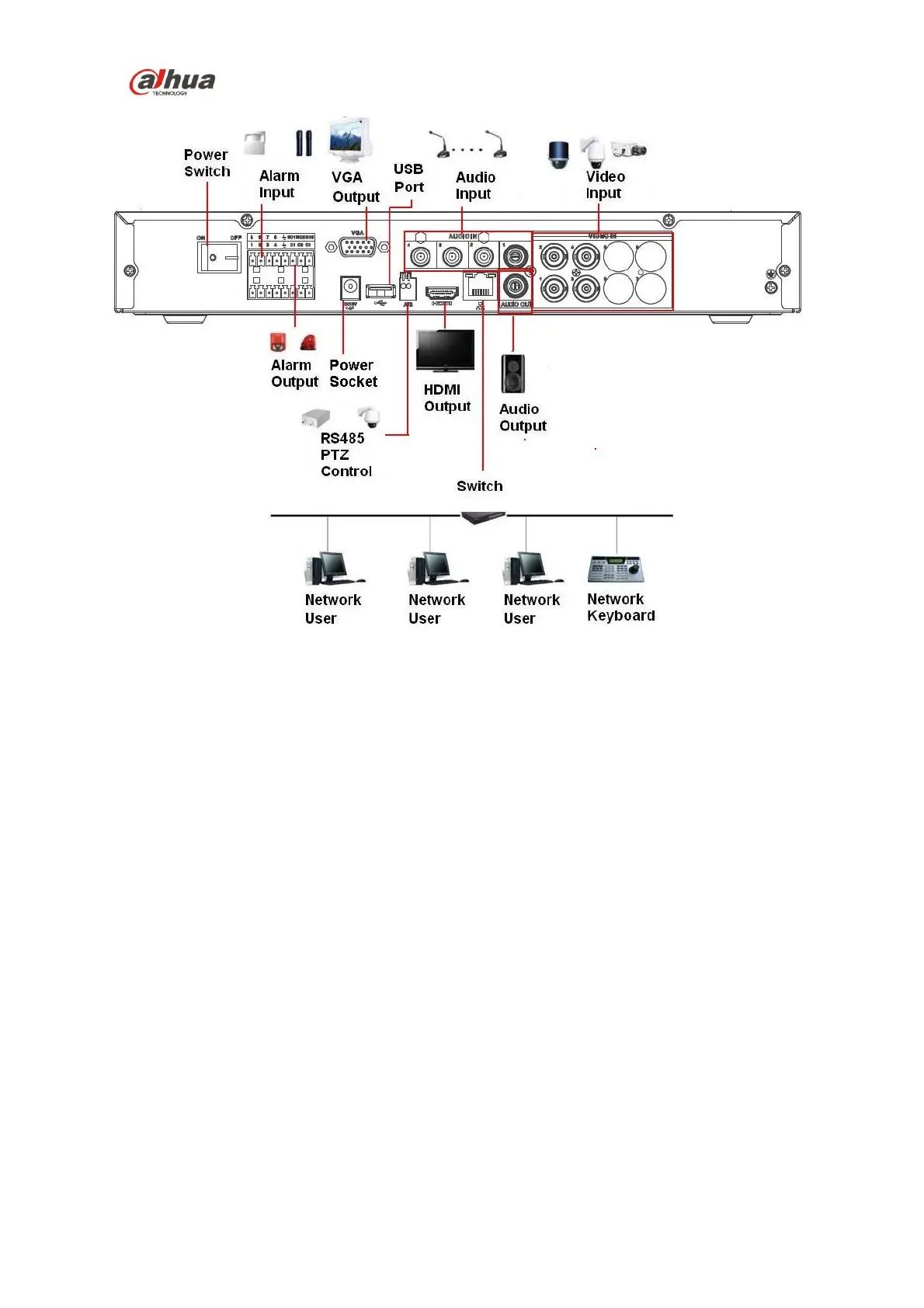

Please refer to Figure 2-65 for connection sample.
The following figure is based on the HCVR4108HS-S2/HCVR2108HS-S2 series product.
