HDCVI Series DVR User’s Manual
62
1
Power on-off button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3
AUDIO IN
Audio input port
Connect to audio input device such
as speaker.
4
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
5
Power input port
Input 12V DC.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
7
A
RS485（RS-485）
communication port
RS485_A port. It is the cable A. You
can connect to the control devices
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
8
Network port
100M Ethernet port
9
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
10
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
11
GND
Ground end

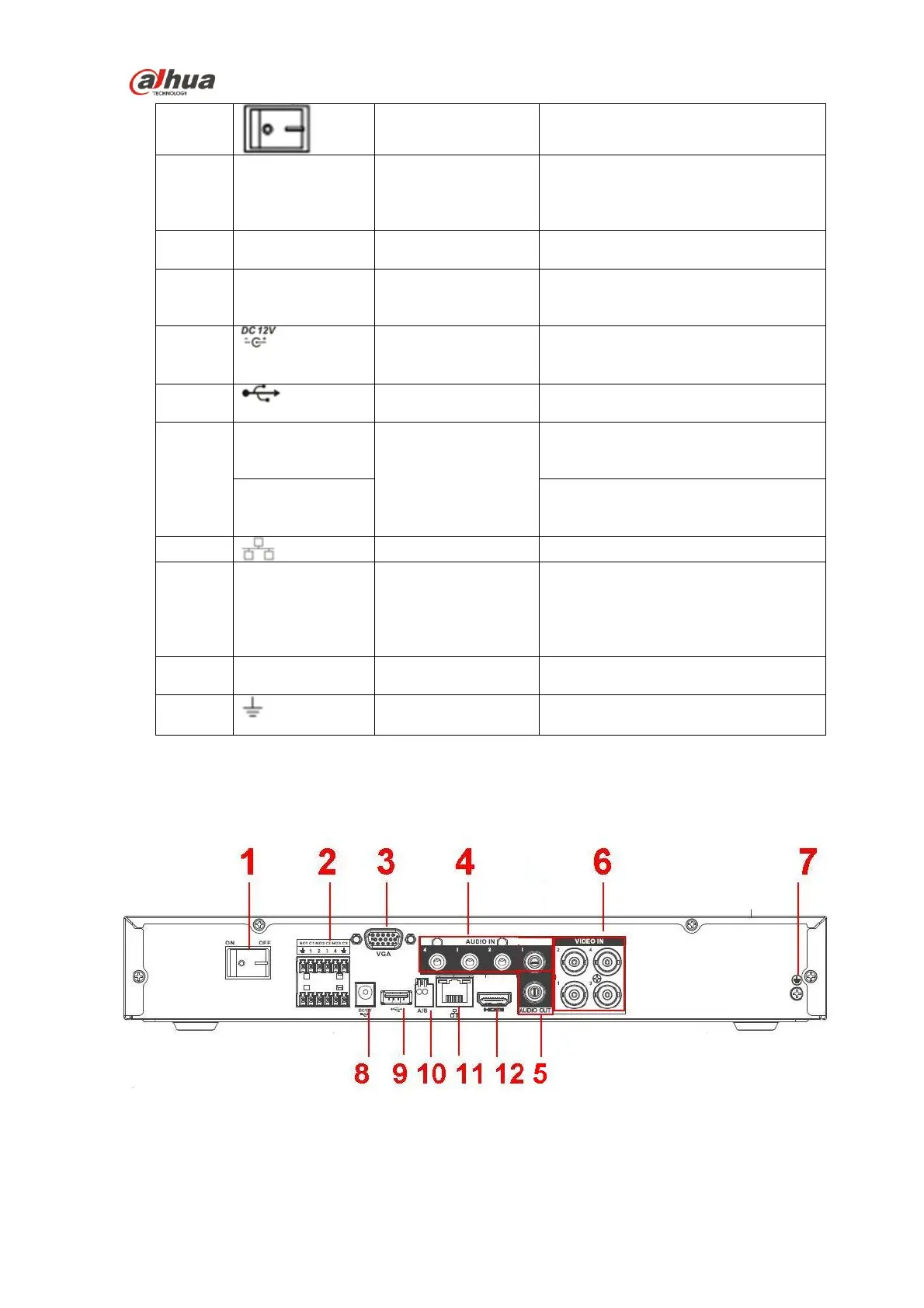

2.2.18 HCVR5104/5108/5116HE-S2 Series
The HCVR5104HE-S2 series rear panel is shown as below. See Figure 2-41.
Figure 2-41
The HCVR5108HE-S2 series rear panel is shown as below. See Figure 2-42.

Dahua HDCVI series Specifications

General

HDD Interface	SATA
Video Compression	H.264/H.265
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Remote Access	DMSS
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	10% to 90% (non-condensing)
