Dahua HDCVI series - Power Supply Connection; Video Input and Output Connection

HDCVI Series DVR User’s Manual
80

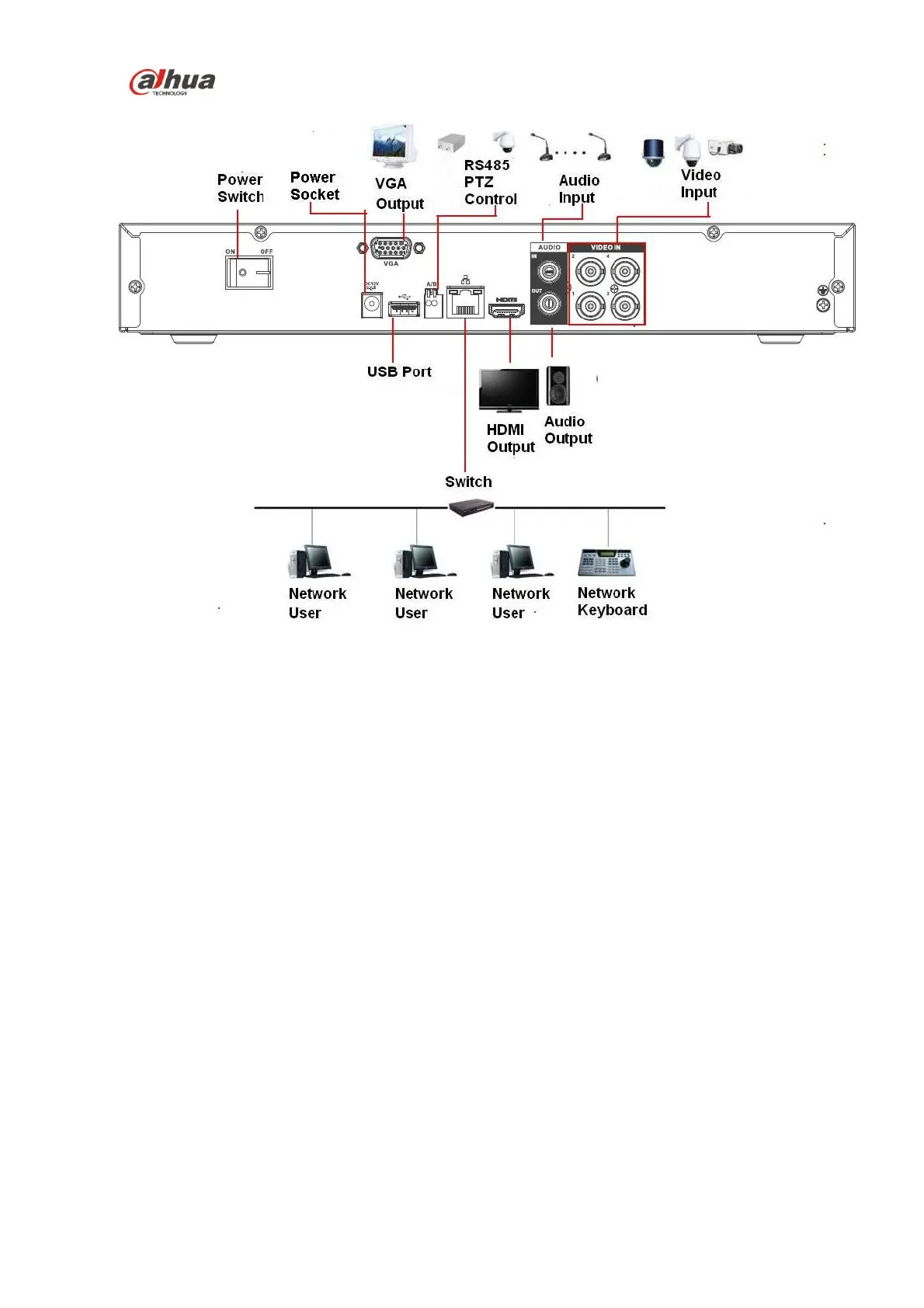

Figure 2-62
2.3.13 HCVR51XXHE-S2 Series
Please refer to Figure 2-63 for connection sample.
The following figure is based on the HCVR5108HE-S2 series product.
