Dahua HDCVI series - HCVR4104;4108;4116 HE-S2 Series

HDCVI Series DVR User’s Manual
59
2.2.16 HCVR4104/4108/4116HE-S2 Series

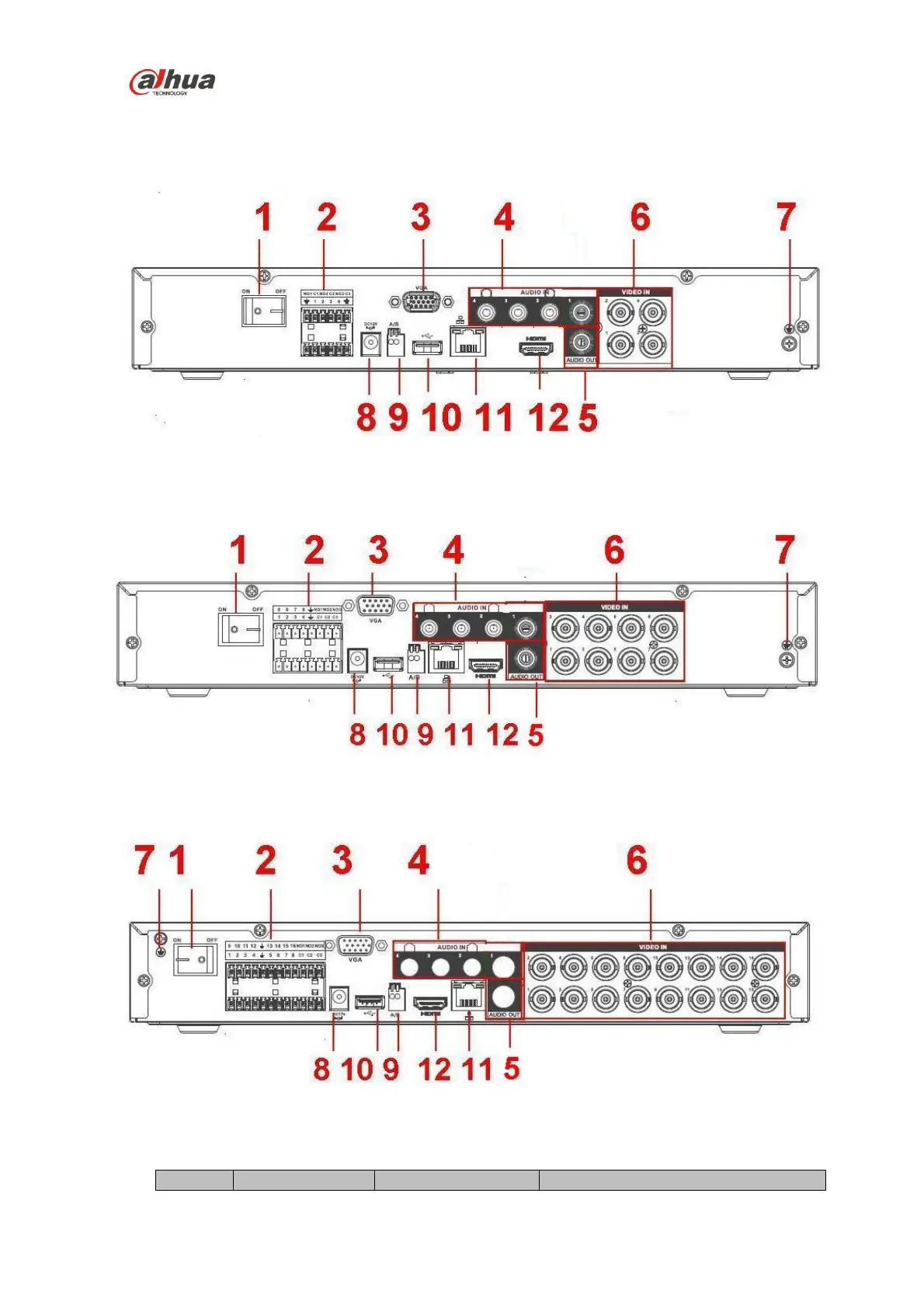

The HCVR4104HE-S2 series rear panel is shown as below. See Figure 2-35.
Figure 2-35
The HCVR4108HE-S2 series rear panel is shown as below. See Figure 2-36.
Figure 2-36
The HCVR4116HE-S2 series rear panel is shown as below. See Figure 2-37.
Figure 2-37
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
